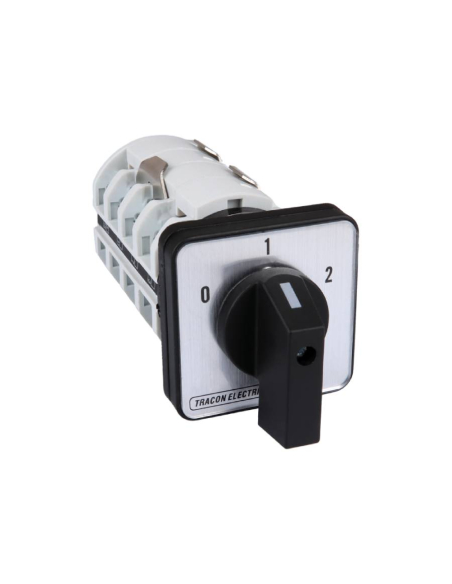

Changeover switch for two-speed motors, Dahlander type, 25A. Allows starting, stopping and selecting the rotation speed in 2-speed electric motors of 10 HP (7.5 kW). 60º rotating control with three positions 0-YD, 48x48mm plate in grey and black handle.
This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.
Technical characteristics:
- Manufacturer/Supplier: TRACON
- Reference: TKM-25/D
- Number of poles: 3
- Supply voltage: 380-420V
- Rated insulation voltage: 690V
- Nominal intensity: 25A
- Number of maneuvers / hours: 150
- Mechanical durability: 500,000 maneuvers
- Electrical durability: 300,000 operations
- Ambient temperature: -5 to +55ºC
- Protection class: IP42
Table of intensities and powers of use:
- AC-21A 400V usage category: 25A
- AC-22A 400V usage category: 25A
- AC-23A 400V usage category: 22A
- AC-2 400V usage category: 22A
- AC3 400V usage category: 15A
- AC-4 400V usage category: 6.5A
- AC-15 400V usage category: 5A
- DC-13 240V DC usage category: 1.5A
- Assigned power category AC-23A 400V: 11kW
- Assigned power category AC-2A 400V: 11kW
- Assigned power category AC-3A 400V: 7.5kW
- Assigned power category AC-4A 400V: 3kW
L=70mm; A = 46mm; a = 48mm; b = 48mm; d=36mm
Professional use material, install in compliance with the regulations in force at the place of installation.
