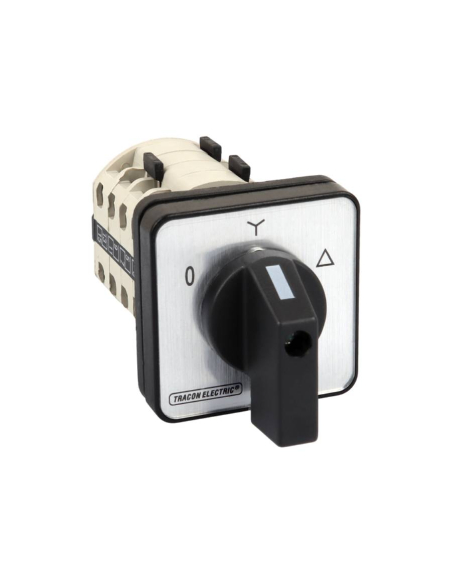

Star-delta switch 25A (7.5kW - 10HP)

Name: Star-delta switch 25A (7.5kW - 10HP)
Brand: TRACON
SKU: TKM-25/C
Price: 22.1523 EUR
Availability: InStock

€22.15 Tax included

€18.01 tax excl.

25A star-delta switch for electric motors. Allows the starting and stopping of a three-phase electric motor in star-delta mode, to reduce the initial consumption peak during start-up. 48x48mm grey front plate and black handle.

Motor power 10HP (7.5Kw) with 400Vac voltage.

Reference: TKM-25/C

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

25A star-delta starter switch for 10HP (7.5kW) electric motors. 60º rotary control with three positions 0-YD, 48x48mm grey plate and black handle.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.

Technical characteristics:

Manufacturer/Supplier: TRACON
Reference: TKM-25/C
Number of poles: 3
Number of floors: 4
Supply voltage: 380-420V
Rated insulation voltage: 690V
Nominal intensity: 25A
Number of maneuvers / hours: 150
Mechanical durability: 500,000 maneuvers
Electrical durability: 300,000 operations
Ambient temperature: -5 to +55ºC
Protection class: IP42

Table of intensities and powers of use:

AC-21A 400V use category: 25A
AC-22A 400V use category: 25A
AC-23A 400V use category: 22A
AC-2 400V usage category: 22A
AC3 400V usage category: 15A
AC-4 400V usage category: 6.5A
AC-15 400V usage category: 5A
DC-13 240V DC usage category: 1.5A
Assigned power category AC-23A 400V: 11kW
Assigned power category AC-2A 400V: 11kW
Assigned power category AC-3A 400V: 7.5kW
Assigned power category AC-4A 400V: 3kW

L=70mm; A = 46mm; a = 48mm; b = 48mm; d=36mm

Professional use material, install in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Annex instructions for use of el

Document attached to the instructions for use of electrical equipment

Download (414.22KB)

Annex mode d'emploi elec.

Document attached to the mode of employment of electrical materials

Download (410.39KB)

Annex instructions for use elec.

Document annexed to the instructions for use electrical equipment

Download (410.3KB)

Allegato istruzioni l'uso elec

Document allegato alle instruzioni per l'use dell'apparecchiatura elettrica

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Document annexed to the instructions for use of electrical equipment

Download (412.12KB)
