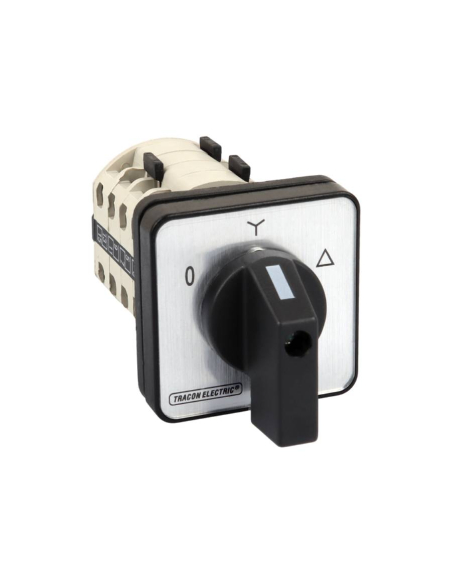

Star-delta starter switch 32A for 15HP (11kW) electric motors. 60º rotary control with three positions 0-YD, 64x64mm grey plate and black handle.
This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.
Technical characteristics:
- Manufacturer/Supplier: TRACON
- Reference: TKM-32/C
- Number of poles: 3
- Number of floors: 4
- Supply voltage: 380-420V
- Rated insulation voltage: 690V
- Nominal intensity: 32A
- Number of maneuvers / hours: 100
- Mechanical durability: 300,000 maneuvers
- Electrical durability: 120,000 operations
- Ambient temperature: -5 to +55ºC
- Protection class: IP42
Table of intensities and powers of use:
- AC-21A 400V usage category: 32A
- AC-22A 400V usage category: 32A
- AC-23A 400V usage category: 30A
- AC-2 400V usage category: 30A
- AC3 400V usage category: 22A
- AC-4 400V usage category: 11A
- AC-15 400V usage category: 6A
- DC-13 240Vdc usage category: 4A
- Assigned power category AC-23A 400V: 15kW
- Assigned power category AC-2A 400V: 15kW
- Assigned power category AC-3A 400V: 11kW
- Assigned power category AC-4A 400V: 5.5kW
L=78mm; A = 58mm; a = 64mm; b = 64mm; d=48mm
Professional use material, install in compliance with the regulations in force at the place of installation.
