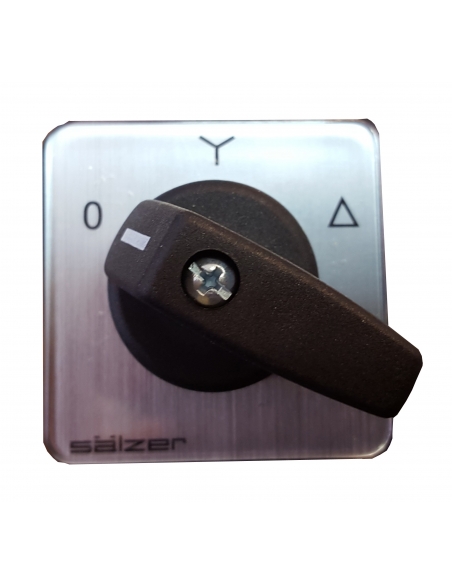

star-delta switch 20A (7.5CV)
star-delta switch 25A (15CV)
star-delta switch 20A (7.5CV)

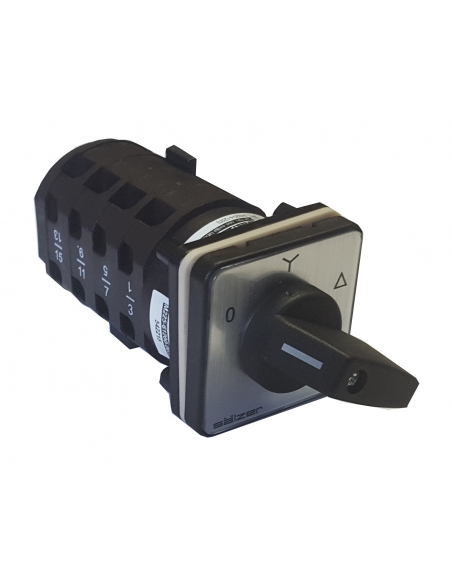

Star-delta switch 25A (15CV)

€105.83 Tax included

€87.46 tax excl.

25A star-delta switch for electric motors. It allows starting and stopping an electric motor through star-delta switching. Size 48x48.

Motor power 15CV (11Kw) with 400Vac voltage.

Reference: M225-61200-003M1


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


25A star-delta starter switch for 15CV (11kW) electric motors. It allows the starting of an electric motor through manual star-delta switching. Operation by black handle.

Characteristics:

  • Manufacturer: Salzer .
  • Manufacturer reference: M225-61200-003M1
  • number of poles: 3.
  • number of floors: 4.
  • Rated voltage Ue: 690V.
  • Rated current Ie (AC21A): 25A.
  • Power: 11Kw/15CV (400Vac).
  • Rated interrupting capacity: 10 kA.
  • Number of maneuvers / hours: 50.
  • Mechanical durability: 1.000.000 maneuvers.
  • Flush mount.
  • Protection degree: IP-20.
  • Front protection degree: IP-66.
  • Front size: 48x48mm.
  • Distance between holes: 36x36mm.
  • Standards: CE; IEC60947; IEC60204; UL508 CSA 22.2 No.14.

61200 star-delta switch diagram

Electrical cam switch dimensions



Material for professional use, install in compliance with the regulations in force at the installation site.
