Dahlander 63A two-speed switch (18.5kW - 25HP)
Dahlander 63A two-speed switch (18.5kW - 25HP)

Dahlander 63A two-speed switch (18.5kW - 25HP)

€60.96 Tax included

€49.56 tax excl.

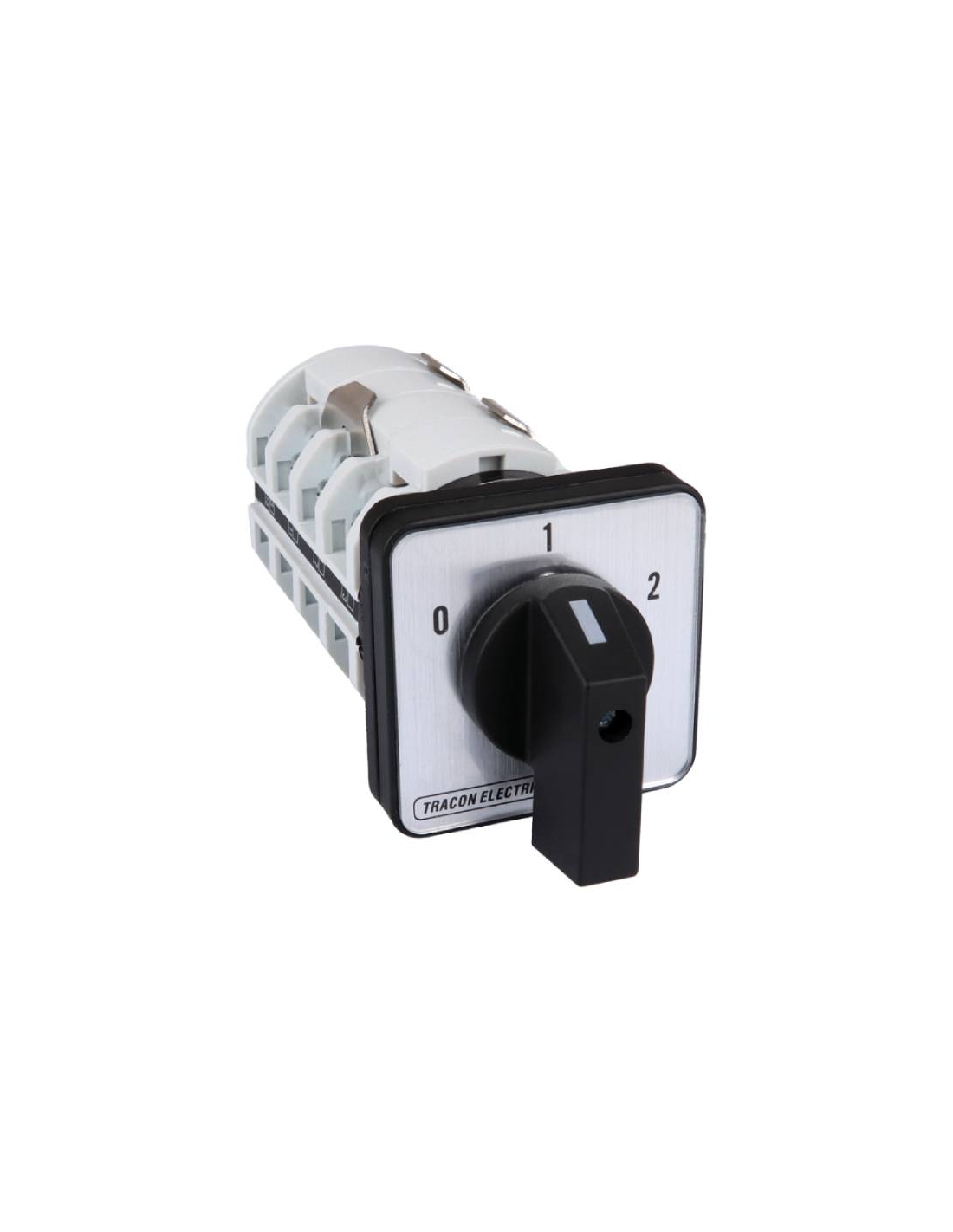

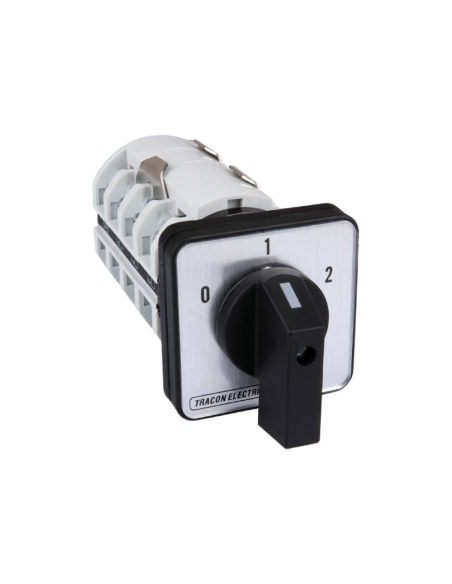

Switch for two-speed electric motors (Dahlander) 63A, 60º rotary knob with three positions 0-1-2. Allows starting, stopping and speed selection on two-speed motors, Dahlander type. Front plate size 64x64mm in grey colour and handle in black.

Engine power 25HP (18.5Kw) with 400Vac voltage.


Reference: TKM-63/D



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Changeover switch for two-speed motors, Dahlander type, 63A. Allows starting, stopping and selecting the rotation speed on 25HP (18.5kW) two-speed electric motors. 60º rotating control with three positions 0-YD, 64x64mm grey plate and black handle.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.







Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TKM-63/D
  • Number of poles: 3
  • Supply voltage: 380-420V
  • Rated insulation voltage: 690V
  • Nominal intensity: 63A
  • Number of maneuvers / hours: 60
  • Mechanical durability: 150,000 maneuvers
  • Electrical durability: 100,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42



Table of intensities and powers of use:

  • AC-21A 400V usage category: 63A
  • AC-22A 400V usage category: 63A
  • AC-23A 400V usage category: 37A
  • AC-2 400V usage category: 37A
  • AC3 400V usage category: 36A
  • AC-4 400V usage category: 15A
  • Assigned power category AC-23A 400V: 30kW
  • Assigned power category AC-2A 400V: 30kW
  • Assigned power category AC-3A 400V: 18.5kW
  • Assigned power category AC-4A 400V: 7.5kW







L=112mm; A = 66mm; a = 64mm; b = 64mm; d=48mm






Professional use material, install in compliance with the regulations in force at the place of installation.
