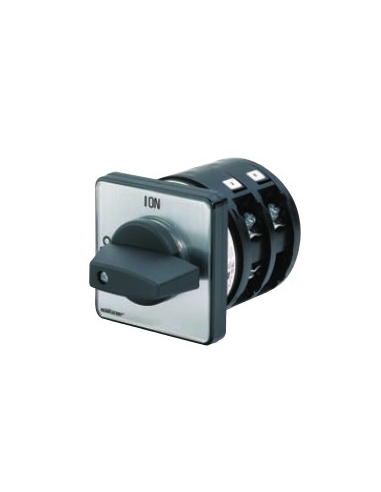

20A Cam Triphasic Switch Size 48

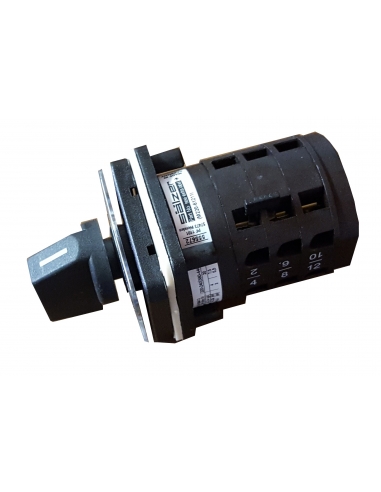

Three-phase inverter switch 20A

Three-phase inverter switch 20A

Three-phase inverter switch 20A

20A Cam Triphasic Switch Size 48

Three-phase inverter switch 20A

Three-phase inverter switch 20A

Three-phase inverter switch 20A

Three-phase inverter switch 20A

€66.73 Tax included

€54.25 tax excl.

M22061211003M

20A three-phase inverter switch for electric motors. Allows the start and stop of a three-phase electric motor allowing to select the direction of rotation of the same. Size 48x48.

Reference: M220-61211-003M1

Esquema eléctrico interruptor inversor

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

2 questions about the product

20A three-phase inverter switch for electric motors. Allows the start and stop of a three-phase electric motor allowing to select the direction of rotation of the same. Drive by black lever.

Features:

Manufacturer: Salzer.
Manufacturer's Reference: M220-61211-003M1
Number of poles: 3.
Rated voltage Ue: 690V.
Nominal current Ie (AC21A): 20A.
Power : 5.5Kw (400Vac).
Nominal interrupt capacity: 10 kA.
Number of manoeuvres / hours: 50.
Mechanical durability: 1,000,000 maneuvers.
Built-in mounting.
Degree of protection: IP-20.
Degree of frontal protection: IP-66.
Front size: 48x48mm.
Distance between holes: 36x36mm.
Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14.

Esquema interruptor inversor trifásico de levas

Dimensiones interruptor eléctrico de levas

Material for professional use, install in compliance with the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Question

Buenas tardes Al soltar la maneta esta vuelve sola a la posición de "0" ? Gracias.

Answer

Buenas tardes,

No, son de posiciones fijas.

Saludos

Jorge Matito on 07/30/2018 13:44:44

Question

Buenas tardes Quisiera saber si al soltar el interruptor este vuelve solo a la posición de "0". Gracias.

Answer

Buenos días,

No, las posiciones son mantenidas, y actualmente, no hay posibilidad de otro modelo.

Saludos

Jorge on 07/27/2018 20:35:48
