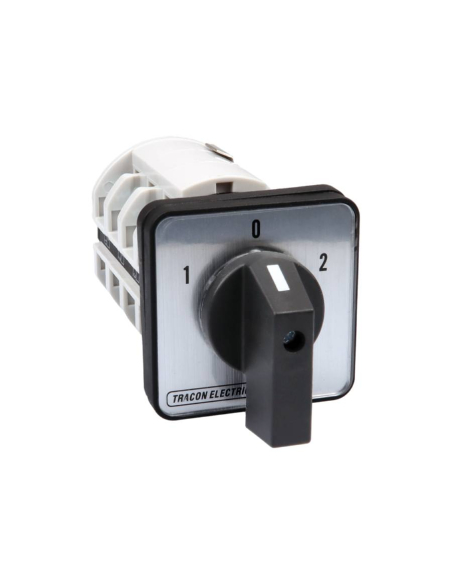

Three-phase 32A Inverter switch for 25HP (18.5kW) electric motors . 60º rotary control with three positions 1-0-2, allows the starting and stopping of a three-phase electric motor, allowing the selection of its direction of rotation. 64x64mm plate in grey colour and black handle.
This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.
Technical characteristics:
- Manufacturer/Supplier: TRACON
- Reference: TKM-63/N
- Number of poles: 3
- Supply voltage: 380-420V
- Rated insulation voltage: 690V
- Nominal intensity: 63A
- Number of maneuvers / hours: 60
- Mechanical durability: 150,000 maneuvers
- Electrical durability: 100,000 operations
- Ambient temperature: -5 to +55ºC
- Protection class: IP42
Table of intensities and powers of use:
- AC-21A 400V usage category: 63A
- AC-22A 400V usage category: 63A
- AC-23A 400V usage category: 37A
- AC-2 400V usage category: 37A
- AC3 400V usage category: 36A
- AC-4 400V usage category: 15A
- Assigned power category AC-23A 400V: 30kW
- Assigned power category AC-2A 400V: 30kW
- Assigned power category AC-3A 400V: 18.5kW
- Assigned power category AC-4A 400V: 7.5kW
L = 93.7mm; A = 66mm; a = 64mm; b = 64mm; d=48mm
Professional use material, install in compliance with the regulations in force at the place of installation.
