Solenoid valve fluids 1/8 2/2 open direct drive...

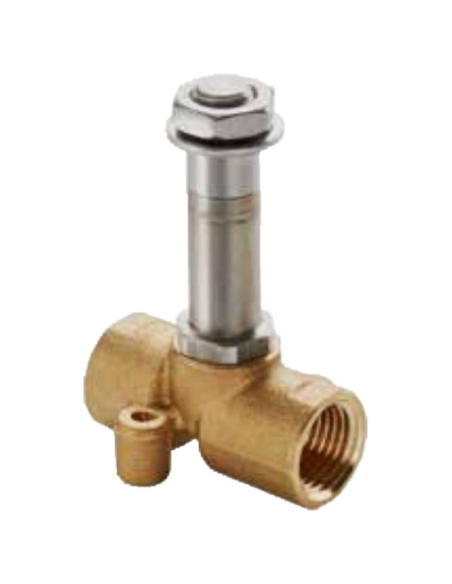

Solenoid valve fluids 1/8 2/2 open direct drive D.2,5

Solenoid valve fluids 1/8 2/2 open direct drive D.2,5

€26.33 Tax included

€21.76 tax excl.

Electrovalve for home automation,fluids or process control, threaded 1/8" body in brass. Direct drive electrovalve, 2-way open (NA), actuator Ø for 10mm coil.

Step diameter: 2.5 mm

Max pressure 6.1 bar. Min pressure: 0 bar.

fluids:

  • air.
  • Inert gas.
  • Water (max. 75ºC).
  • Mineral oils.
  • Gasoleos.

Esquema neumático electroválvula 2 vías abiertaManufacturer: Aignep
Reference: 01F02225N0
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1/8" direct drive solenoid valve, 2-way, normally open (NA), for use with fluids or air, indirect drive. Brass body and coil control in stainless steel.

Pitch diameter: 2.5 mm

In this type of valves, the mobile core, mounted with a sealing joint, is the one that opens and closes directly on the hole of the solenoid valve. When the coil is not active, the plunger is closing the passage of the solenoid valve, preventing the flow of fluids. When we give tension to the coil we create a magnetic field and cause the moving core to open the hole, allowing passage to the fluid. When we stop exciting the coil, the moving core, by means of the spring it has, returns to the initial position.

This type of solenoid valves can open from 0 bar.

The working pressure ranges are:

  • Minimum pressure differential between inlet and outlet (ΔP bar): 0 bar.
  • Maximum pressure differential between inlet and outlet (ΔP bar):
    • With coil size 22mm of 6.5W: 6.1 bar.
    • With coil size 22mm of 7.5VA: 6.1bar.
    • With coil size 30mm of 8W: 6.1 bar.
    • With coil size 30mm of 11VA: 6.1 bar.
  • Maximum permissible pressure: 6.1 bar

Compatible coils for this type of solenoid valve are range SOL10 (22 mm) and SOL11 (30mm) for cores of diameter 10 (Coil not included)

The solenoid valve is normally open, that is, without tension in the coil, the fluid or air will be passed through the solenoid valve, when the coil is put into tension the passage of the fluid or air will be interrupted.

The fluids with which this solenoid valve can work are:

  • Air.
  • Inert gases.
  • Water (maximum temperature 75ºC).
  • Mineral oils.
  • Diesel.
  • Fuel oil.

Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 01F 02 2 25 N0
  • Type of control: direct drive.
  • Thread size: 1/8".
  • number of tracks: 2.
  • number of positions: 2.
  • Configuration: 2/2 open (NA).
  • Operator shaft diameter (for coil): 10mm.
  • Body: Brass.
  • Guide tube, cores and spring: Inox.
  • Gasket type: NBR.
  • Type of fluids: Pressurized air, water (max. 75ºC), mineral oils, diesel, fuel oil.
  • Maximum pressure: 6.1 bar.
  • ISO 228 size: 1/8".
  • pitch diameter: 2.5mm.
  • Maximum fluid viscosity (cSt): 53.
  • Valve coefficient (Kv): 0,15 m³/h.
  • Minimum pressure differential (ΔP bar): 0 bar.
  • Maximum pressure differential (ΔP bar): 6.1 bar depending on the power of the coil.
  • Working temperature of the solenoid valve: -10ºC to +80ºC.
  • Fluid temperature: -10ºC to +90ºC.

Dimensiones electrovalvula 2/2 mando directo
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
