Solenoid valve 3/8 5 ways assisted monostable without coil - Metal Work

Name: Solenoid valve 3/8 5 ways assisted monostable without coil - Metal Work
Brand: Metal Work
SKU: 7040021500
Price: 98.1417 EUR
Availability: PreOrder

€98.14 Tax included

€79.79 tax excl.

3/8" 5-way monestable pneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7040021500

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 5 ways 2 positions assisted monostable. For general and industrial applications. The coil is not included in the supply.

Characteristics:

Provider: Metal Work
Reference: 7040021500 - SOV C5 SES OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000131

€8.50 (€6.91 tax excl.)

Coil for solenoid valve size 22mm, voltage 220-230VAC., with a consumption of 3.5VA, for cores of 8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000131Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve connector size 22 - Metal Work

Metal Work

W0970510011

€1.39 (€1.13 tax excl.)

Electrical connector for solenoid valve size 22mm., in black. Reference: W0970510011Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€8.50 (€6.91 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way bistable - Metal Work - ADAJUSA

electrovalve 3/8 5-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 3/8

Solenoid valve 3/8 5 ways bistable without coil - Metal Work

Metal Work

7040021200

€109.21 (€88.79 tax excl.)

3/8" 5-way bile pneumatic solenoid valve, closed (NC), for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5-way monostable 230Vac 3.5VA Metal Work

Metal Work

PK-385M230

€108.03 (€87.83 tax excl.)

3/8" 5-way pneumatic electrovalve, closed (NC), for industrial and general use applications. Coil for electrovalve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. 22mm connector Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways monostable - Mindman S.300 - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5-way monostable 230Vca - Mindman S.300

Mindman

MVSE3004E11

€70.31 (€57.16 tax excl.)

3/8" 5-way monostable pneumatic solenoid valve, operating voltage of 230Vca.Reference: 281MVSE3004E11 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 3/8 5/3 closed centres 24 Vdc - Metal Work

Solenoid valve 3/8 5/3 closed centres 24 Vdc - Metal Work 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted closed centers 24 Vdc - Metal Work

Metal Work

PK-385A3CC24C

€146.06 (€118.75 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions assisted, closed centers, metal body, with connector and coil of 24Vdc. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

solenoid valve 3/8 5 ways bistable with coil - Metal Work - ADAJUSA

solenoid valve 3/8 5 ways bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5 vias bistable 230Vac 3.5VA Metal Work

Metal Work

PK-385BI230

€128.99 (€104.87 tax excl.)

3/8" 5-way bile pneumatic solenoid valve, closed (NC), for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. - 22mm connector Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 exhaust centers 24 Vdc - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 exhaust centers 24 Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted exhaust centers 24 Vdc - Metal Work

Metal Work

PK-3853ACE24C

€129.11 (€104.97 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions assisted, exhaust centers, metal body, with connector and coil of 24Vdc. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 5/3 exhaust centers - Metal Work

Metal Work

7040022200

€134.78 (€109.58 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions, open centers in exhaust, metal body, for pneumatic applications of industrial or general use. Reference: 7040022200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Luminous valve connector size 22 with VDR 24V

Metal Work

W0970510015

€7.04 (€5.72 tax excl.)

Connector for solenoid valve with VDR 24 V protector and LED indication. For 22mm coils. Reference: W0970510015Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3 ways bistable 230 Vac- Metal Work

Metal Work

PK-383B230

€115.74 (€94.10 tax excl.)

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. With 230 Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

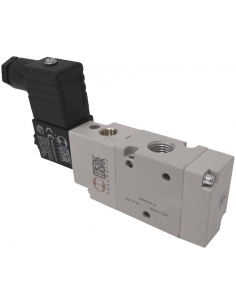

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work

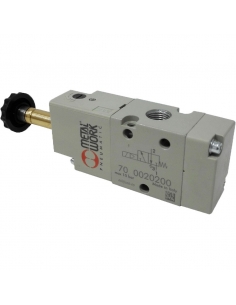

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work 2
