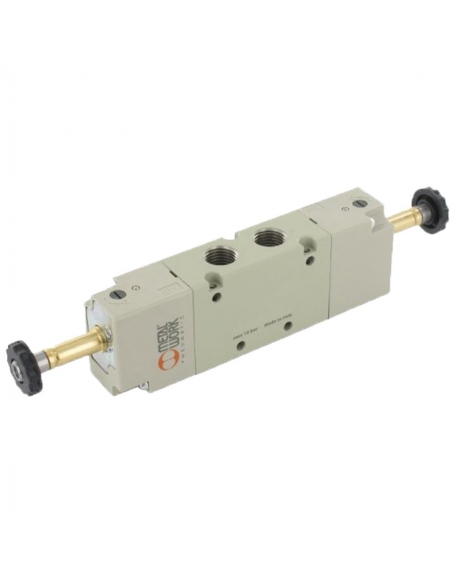

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/8 3/2 ways NO with coils - Metal Work
Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/8 3/2 ways NO with coils - Metal Work

Double solenoid valve 1/8 3/2 ways 110Vca NO - Metal Work

€113.58 Tax included

92.34 tax excl.

Instead of €113.58

PK-ED1832110O

Solenoid valve 1/8 3/2 way double output NO (normally open). With 110 Vac connectors and coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Doublepneumatic solenoid valve 1/8" 3/2 way NO. The solenoid valve is normally open, i.e. without voltage on the coil, the fluid or air will pass through the solenoid valve , when the coil is energized the fluid or air passage will be interrupted.

With plastic connectors size 22 and coils 110 Vac 3,5 VA

The supply includes:

  • Double solenoid valve 1/8" 3/2 NO
  • 2 Coils 110 Vac 3,5VA
  • 2 Connectors

Technical characteristics:

  • Manufacturer Metal Work
  • Part number: Metal Work: SOV 28 SOS NO Code: 7010023200
  • Type of threads: G 1/8"
  • Bistable bar: 2.5 ÷ 10
  • Minimum assistance pressure bar: 2.5
  • Working temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min - bar: 121,43
  • Critical ratio b bar/bar: 0,32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • TRA/TRR monostable at 6 bar ms: 15/35
  • TRA/TRR bistable at 6 bar ms: 20/20
  • Voltage tolerances %: -10 ÷ +15
  • Class of isolation: F 155
  • Rated voltage: 110Vac.
  • Rated power: 3,5VA.


Equipment for professional use, install in compliance with the regulations in force at the place of installation.
