Solenoid valve 1/8 3 ways bistable assisted 24Vdc - Metal Work

€106.26 Tax included

€86.39 tax excl.

Solenoid valve 1/8 3 ways bistable with coils for solenoid valve size 22mm, voltage 24Vdc.

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

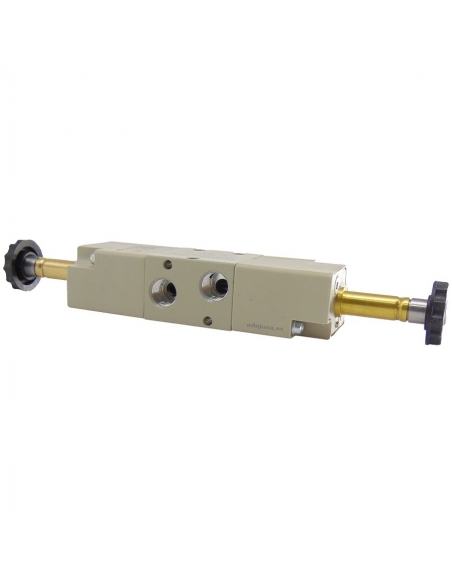

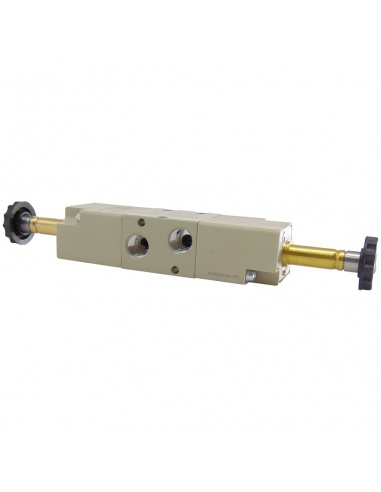

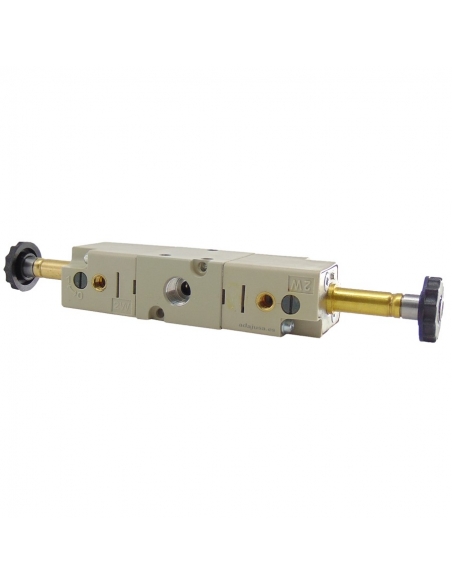

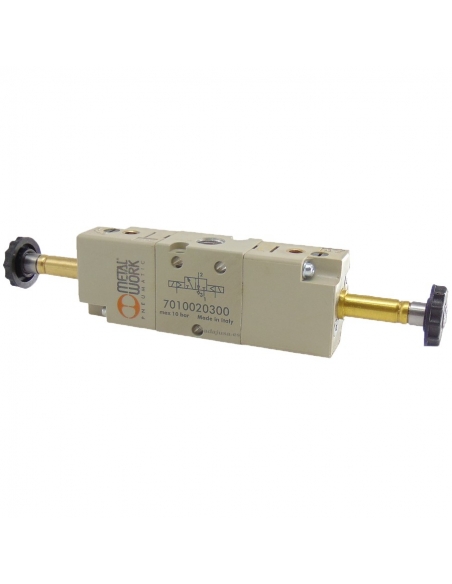

Pneumatic solenoid valve of 1/8 3 ways bistable.

Coil of size 22mm for voltage of 24Vca with a power of 2W, suitable for solenoid valves with an actuator core diameter of 8mm.

Plastic connector 22 mm

The supply includes:

  • 1 Solenoid valve 1/8 3 ways
  • 2 Coils 24Vac 2W
  • 2 x 22mm connector

Manufacturer: Metal Work

Characteristics:

  • Operating pressure: 1 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 5 mm
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • Bistable TRA/TRR at 6 bar ms: 20/20
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15
  • Voltage 24 Vac
  • Power 2W

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
