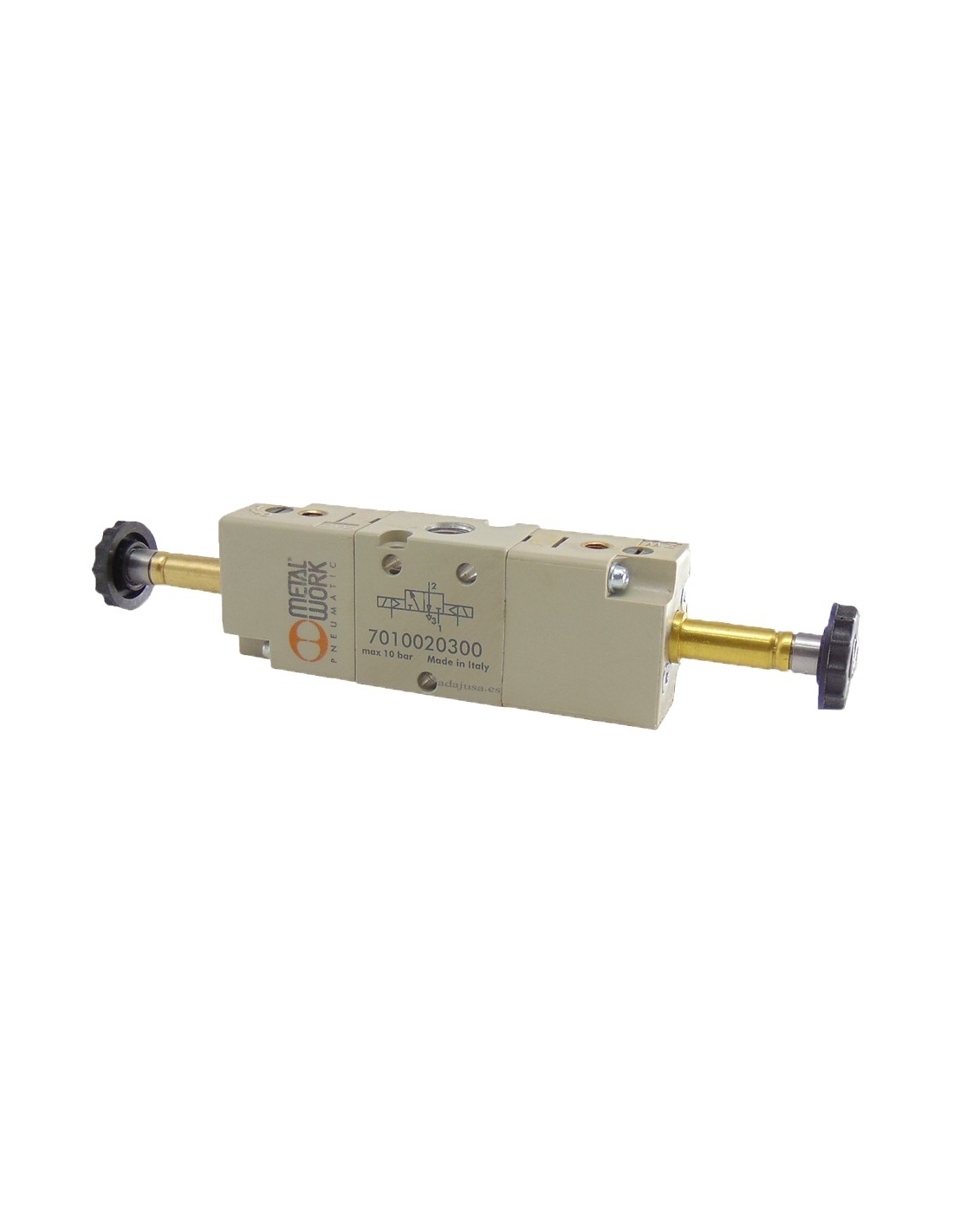

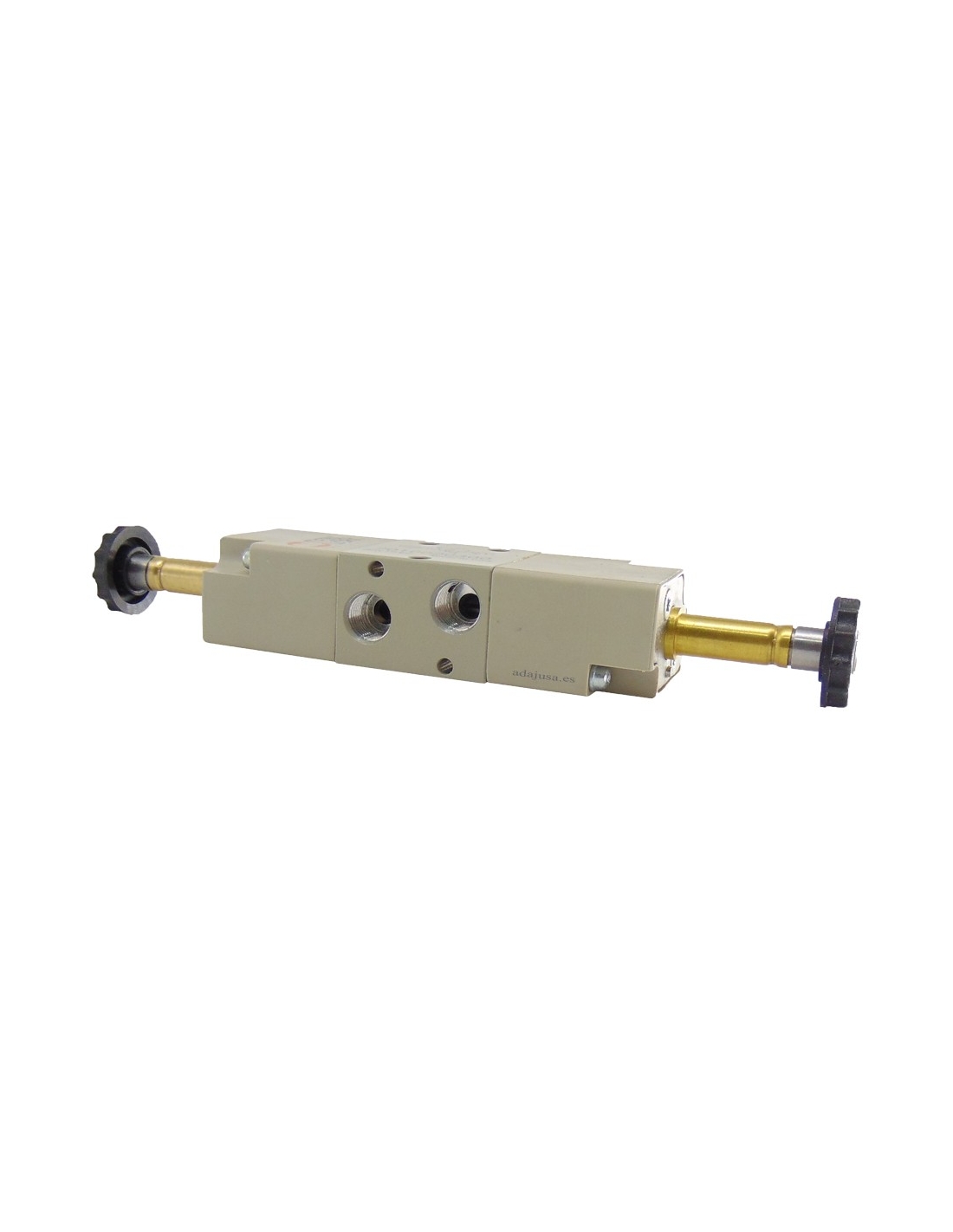

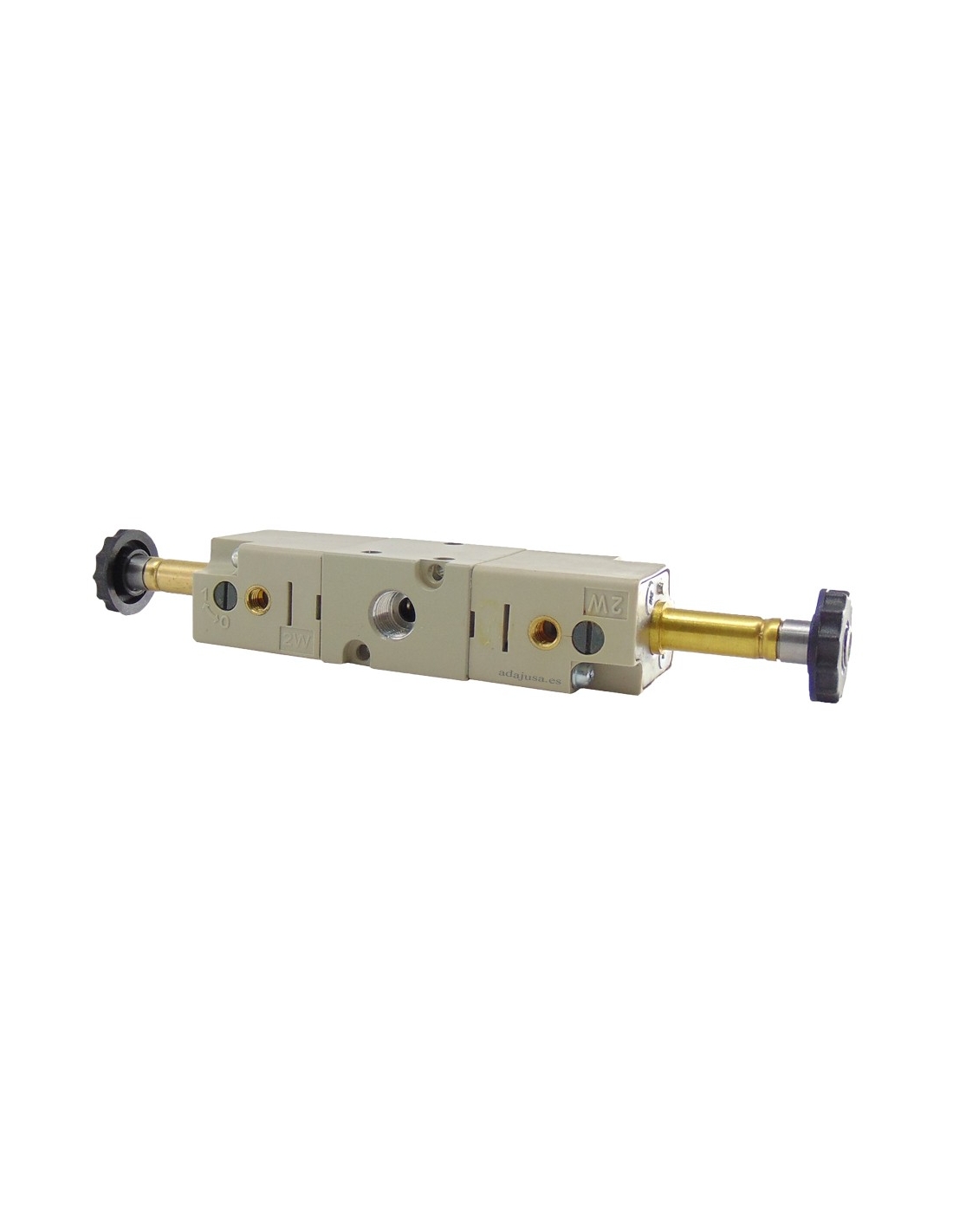

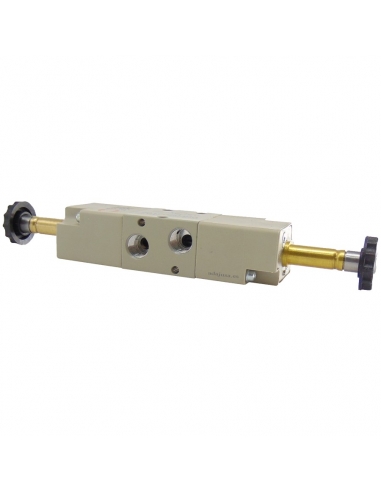

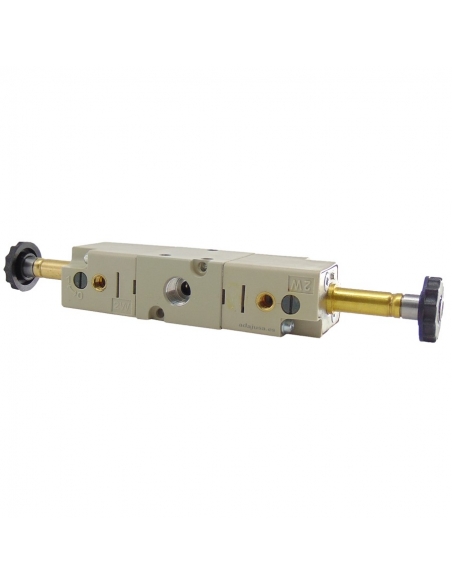

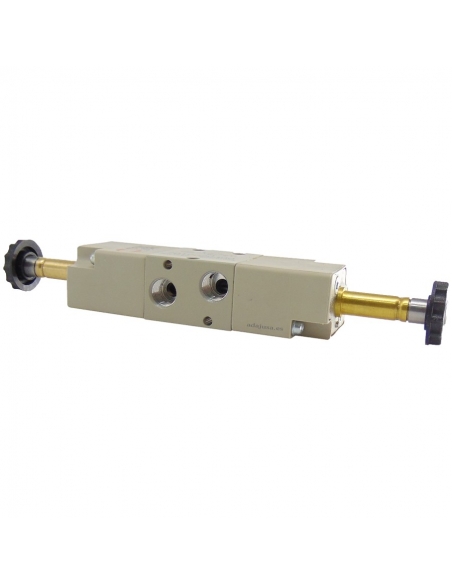

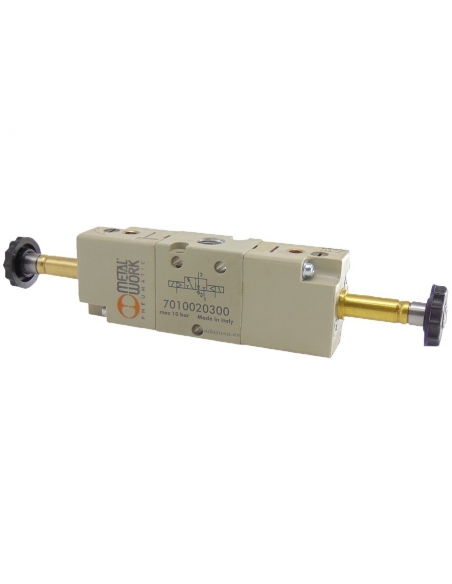

Solenoid valve 1/8 3 ways bistable assisted - Metal Work

€87.81 Tax included

€71.39 tax excl.

7010020300

Solenoid valve 1/8 3 ways bistable assisted. Non-inclides coils
Reference: 7010020300 - SOV 23 SEB OO

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic solenoid valve of 1/8 3 ways assisted bistable, coil not included. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

Manufacturer: Metal Work

Reference: SOV 23 SEB OO 7010020300

Characteristics:

Operating pressure: 1 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 5 mm
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
Bistable TRA/TRR at 6 bar ms: 20/20
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
