Solenoid valve 1/8 5/2 bistable 12Vdc 3W - Aignep

€63.28 Tax included

51.45 tax excl.

Instead of €63.28

PK-01VS150002-12Vcc

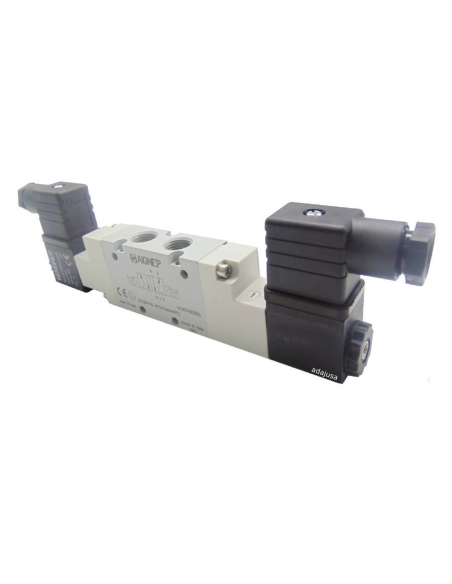

Solenoid valve complete of 1/8 5 way bistable , with 12Vdc coils and 3W consumption, 22mm. size connectors, with G1/8" threads, anodized aluminum body, NBR gaskets.

Reference: 01VS050002-12Vcc
Esquema neumatico electrovalvula 5 vias biestable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valve pneumatic of 1/8 5 way bistable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coils of 12Vdc 3W and connectors.

The supply includes:

  • 5" 1/8" pneumatic solenoid valves way
  • 2 coils 12Vdc 3W
  • 2 connectors 22mm

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS150002
  • Type of threads: G 1/8
  • Monostable bar: 1 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Insulation class: F 155
  • Fluid: filtered air without lubrication
  • Number of way: 5
  • Operation: bistable
  • Seal material: NBR
  • Rated voltage: 12Vdc
  • Voltage tolerance: ±10%
  • Nominal power: 3W
Dimensiones electrovalvulas 1_8 5 vias biestable Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
