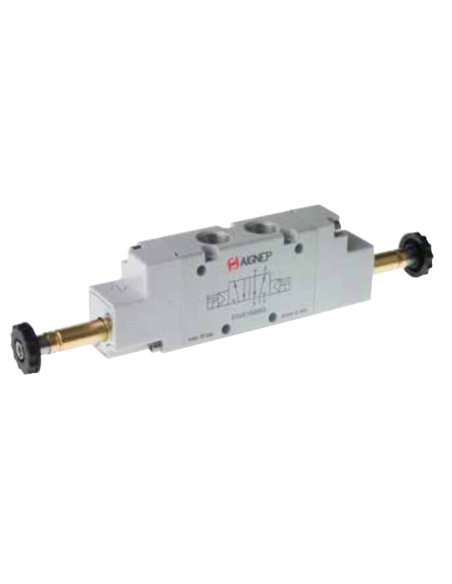

Solenoid valve 1/8 3/2 bistable - Aignep
Solenoid valve 1/8 3/2 bistable - Aignep

Solenoid valve 1/8 3/2 bistable - Aignep

€55.12 Tax included

€44.81 tax excl.

Solenoid valve 1/8 3 way bistable (coils not included), with G1/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS130002
Esquema neumatico electrovalvula 3 vias biesable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve 1/8 3 ways bistable 01V series. Coils and connectors not included.
Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR gaskets. European manufacture.

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS130002
  • Thread type: G 1/8"
  • Operation: Bistable
  • Working pressure: 1 to 10 bar
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication
  • Number of ways: 3
  • Operation: Bistable
  • Seal material: NBR
Dimensiones electrovalvulas 3 vias biestables Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
