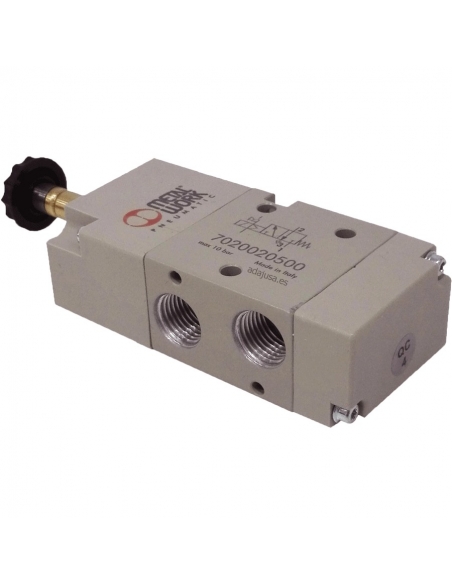

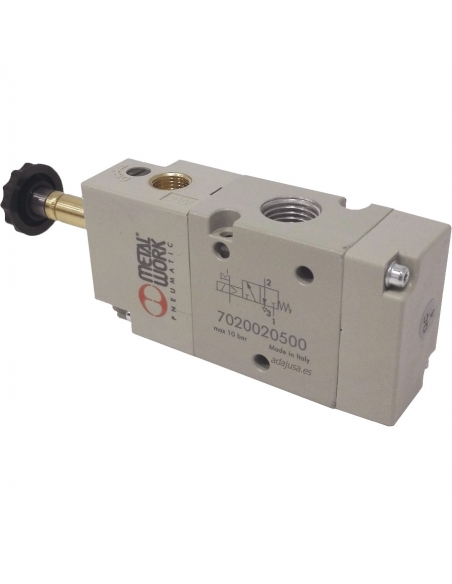

Solenoid valve 1/4 3 ways monostable assisted - Metal Work - ADAJUSA

Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work

Name: Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work
Brand: Metal Work
SKU: 7020020500
Price: 64.3659 EUR
Availability: PreOrder

€64.37 Tax included

€52.33 tax excl.

Solenoid valve 1/4" 3-way monostable assisted, closed (NC) pneumatic or industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm.

Reference: 7020020500

Esquema electrovalvula 3 vias asistida

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1/4 3-way monostable assisted pneumatic solenoid valve, usually closed (NC), for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm. The supply does not include coil or connector.

Made of aluminum, compact size and high air passage flow, short response time.

This electric valve, when assisted, needs pressure in the pilot intake, which is independent of the valve intakes, this allows to control fluids with very low pressures and even be used for vacuum applications.

Specifications:

Solenoid valve manufacturer: Metal Work.
Manufacturer reference: 7020020500 - SOV 33 SES NC
Type: 1/4-5/2 Assisted Monostable
Thread: G 1/4"
Operating pressure: Empty ÷ 10 bar
Minimum working pressure for the pilot: 2.5 bar
Working temperature: -10°÷ +60°C
Nominal diameter: 5mm.
Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
Capacity at 6 bar ΔP 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0,152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Electrovanne 1/4 3 voies monostable - Metal Work

Metal Work

7020020200

€61.70 (€50.16 tax excl.)

1/4" 3-way monostable pneumatic solenoid valve, closed (NC), for industrial applications and for general use. It accepts 22mm size coils (not included) with a Ø8mm core.Reference: 7020020200 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

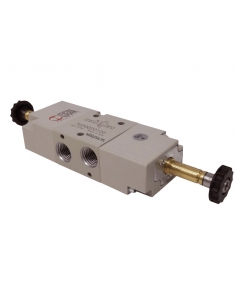

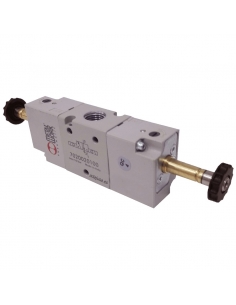

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 3 ways bistable without coil - Metal Work

Metal Work

7020020100

€82.52 (€67.09 tax excl.)

1/4" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. Supports 22mm size coils with Ø8mm core. Reference: 7020020100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

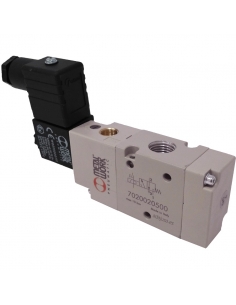

solenoid valve 1/4 3 vias monostable assisted 230VAC 3.5VA - Metal Work - ADAJUSA

solenoid valve 1/4 3 vias monostable assisted 230VAC 3.5VA - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Solenoid valve 1/4 3-way monostable assisted 230Vac 3.5W - Metal Work

Metal Work

PK-E143MA230

€74.26 (€60.37 tax excl.)

1/4" 3-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm. 22mm connector Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

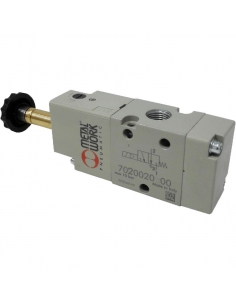

Solenoid valve 1/4 3-way monostable normally open - Metal Work - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 3 ways monostable NO - Metal Work

Metal Work

7020020400

€61.70 (€50.16 tax excl.)

1/4" 3-way monostable, closed (NO) pneumatic solenoid valve for industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm. Reference: 7020020400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 1/4 5/3 assisted bistable exhaust centers with coil - Metal Work

Solenoid valve 1/4 5/3 assisted bistable exhaust centers with coil - Metal Work 2

Pack

Solenoid valves 1/4

Solenoid valve 1/4 5/3 assisted exhaust closures 230Vca - Metal Work

Metal Work

PK-1453CE230

€137.61 (€111.88 tax excl.)

Solenoid valves of 1/4" of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use. With 230Vca connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Solenoid valves 1/4

Solenoid valve 1/4 5/3 assisted exhaust closures 110Vac - Metal Work

Metal Work

PK-1453CE110

€137.61 (€111.88 tax excl.)

Solenoid valves of 1/4" of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use. With 110Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

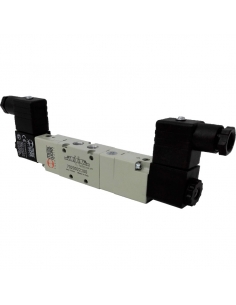

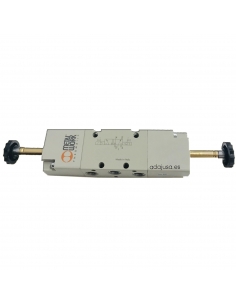

electrovalve 1/4 5 vias 3 positions 230Vac 3,5VA pressure centers - Metal Work - ADAJUSA

electrovalve 1/4 5 vias 3 positions 230Vac 3,5VA pressure centers - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Solenoid valve 1/4 5 vias 3 positions 230Vac 3.5VA pressure centers - Metal Work

Metal Work

PK-1453230P

€130.01 (€105.70 tax excl.)

1/4" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm. Representative image for illustrative purposes, the item supplied will correspond to the specifications...

solenoid valve 1/4 3 vias monostable 24Vcc 2.5W - Metal Work - ADAJUSA

solenoid valve 1/4 3 vias monostable 24Vcc 2.5W - Metal Work - ADAJUSA 2

Pack

Small Electrical Equipment

Solenoid valve 1/4 3 ways monostable 24Vdc 2 W - Metal Work

Metal Work

PK-E143MO24C

€71.59 (€58.20 tax excl.)

1/4" 3-way monostable, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Connector 22 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/4 5 ways 3 positions pressure 24Vdc Mindman - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 5 way 3 positions pressure centers 24Vdc - Mindman S.220

Mindman

MVSC2204E2P2

€96.48 (€78.44 tax excl.)

Pneumatic solenoid valve of 1/4" 5 ways 3 positions, centers in pressure,metal body, with coils at 24Vdc. For double effect cylinder control. Reference: 281MVSC2204E2P2 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4" 3-way monostable 3-way pneumatic solenoid valve normally open (NO), 24Vdc Mindman - ADAJUSA

Delivery in 3 days

Solenoid valves 1/4

Solenoid valve 1/4 3 ways monostable NO 24Vdc - Mindman S.220

Mindman

MVSC2203E1NO2

€39.25 (€31.91 tax excl.)

1/4" 3-way monostable 3-way solenoid valve normally open (NO),operating voltage of 24Vdc. Reference: 281MVSC2203E1NO2 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/4 5 ways bistable 230Vca - Mindman S.220 - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 5 ways bistable 230Vca - Mindman S.220

Mindman

MVSC2204E21

€66.73 (€54.25 tax excl.)

1/4" 5-way bilg valve,operating voltage of 230Vca. Reference: 281MVSC2204E21 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Omega 1/4" Bar Adapter for Metal Work Base - ADAJUSA

Solenoid valves on motherboard

Omega 1/4 Bar Adapter 70 Series - Metal Work

Metal Work

226005600

€3.19 (€2.59 tax excl.)

Adapter for omega bar (DIN EN 50022) 1/4" series 70, BASIC and multiple socketsReference: 0226005600 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€8.50 (€6.91 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 1/4

Double solenoid valve 1/4 3/2 ways NC-NO - Metal Work

Metal Work

7020023300

€110.60 (€89.92 tax excl.)

Solenoid valve 1/4 3/2 way double output. One NC (normally closed) input and the other NO (normally open) input. Coils not includedReference: 7020023300Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/4 3/2 ways assisted NC with coils - Metal Work - ADAJUSA

Double solenoid valve 1/4 3/2 ways assisted NC with coils - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Double solenoid valve 1/4 3/2 assisted tracks NC 230Vac - Metal Work

Metal Work

PK-DA1432C230

€135.94 (€110.52 tax excl.)

Solenoid valve 1/4 3/2 way double output assisted NC (normally closed). With 230 Vac connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

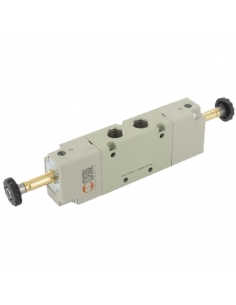

Double solenoid valve 1/4 3/2 ways NC with coils - Metal Work - ADAJUSA

Double solenoid valve 1/4 3/2 ways NC with coils - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Double solenoid valve 1/4 3/2 ways NC 24Vcc - Metal Work

Metal Work

PK-D1432NC24C

€130.38 (€106.00 tax excl.)

Solenoid valve 1/4 3/2 way double NC output (normally closed). With 24 Vdc connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Kit collectors 2 - 7 positions CSA-14 series 70 and BASIC Metal Work - ADAJUSA

Solenoid valves 1/4

Kit collectors 2-7 positions CSA-14 - Metal Work

Metal Work

222000x00

€14.81 (€12.04 tax excl.)

Kit collectors 2-7 positions 1/4" for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0222000x00Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 1/4 5 way 3 positions exhaust 110Vca Mindman - ADAJUSA

Delivery in 3 days

Solenoid valves 1/4

Solenoid valve 1/4 5 way 3 positions exhaust centers 110Vca - Mindman S.220

Mindman

MVSC2204E2R3

€105.73 (€85.96 tax excl.)

Pneumatic solenoid valve of 1/4" 5 ways 3 positions, exhaust centers (open centers), metal body, with coils at 110Vac. For double effect cylinder control. Reference: 281MVSC2204E2R3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Coil solenoid valve 230Vac 5VA Size 22mm diameter 9 ATEX - Aignep

Aignep

SOLX1220A2000

€8.24 (€6.70 tax excl.)

ATEX coil for solenoid valve size 22mm, voltage 230Vac, for Ø9mm cores. Coil consumption 5VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX1220A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Accessories for solenoid valves

Coil solenoid valve 230Vac 5VA Size 22mm diameter 9 - Aignep

Aignep

SOL01220A2000

€4.23 (€3.44 tax excl.)

Coil for solenoid valve size 22mm, voltage 230Vac, for Ø9mm cores. Coil consumption 5VA. Valid for solenoid valves with 9mm actuator core.Reference: SOL01220A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Accessories for solenoid valves

Solenoid valve connector size 22 - Metal Work

W0970510011

€1.39 (€1.13 tax excl.)

Electrical connector for solenoid valve size 22mm., in black. Reference: W0970510011Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Deep groove ball roller

Bearing 634-ZZ 4x16x5mm ISB

634-ZZ-ISB

€2.02 (€1.64 tax excl.)

Ball bearing 634-ZZ dimensions 4x16x5mm. Rigid single row ball bearing made of steel, sealed with two metal caps for closure (ZZ). Ref: 634-ZZ

Distribution boxes and envelopes

Plastic box 150x110x70mm pre-cut

GG1251

€6.04 (€4.91 tax excl.)

Plastic watertight box (ABS), with pre-cut walls and screwed smooth blind lid. Easy installation that saves time on maintenance work. Degree of sealing IP54. Reference: GG1251 Dimensions: 150x110x70mm. Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Stop and emergency pushbuttons

Full metal stop button type 40 (press-pull)

XB2-BT42

€6.40 (€5.20 tax excl.)

40 mm diameter seed stop pushbutton with interlocking, 1 closed contact, metal body, chromed edge. Pull to unlock. The supply includes the complete pushbutton with a closed contact.Reference: XB2-BT42

1/4 5-way monostable assisted solenoid valve - Metal Work - ADAJUSA

1/4 5-way monostable assisted solenoid valve - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 5 ways monostable assisted without coil - Metal Work

7020021500

€69.34 (€56.37 tax excl.)

1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.Reference: 7020021500 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Magnetothermic 1 pole + neutral

MCB circuit breaker 1 neutral pole 16A - Hyundai Electric

HHGD63MN1016C

€4.33 (€3.52 tax excl.)

MCB circuit breaker 1 pole + neutral 16A curve C, for protection against short circuits and overloads in single phase installations. With an assigned cutting power of 6000A. Neutral located on the left side. Ref: HGD63-MN1016C Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Fittings swivel elbow

Cylindrical swivel elbow fitting 1/4 tube 8 technopolymer - Metal Work

2L34010

€2.62 (€2.13 tax excl.)

Racor rotating elbow 1/4 for tube ØExt 8mm. Male cylindrical thread, with O-ring included. Fast, very simple and efficient connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Racor valid for pneumatic and vacuum installations. Reference: 2L34010 Representative image for...

Pneumatic silencers

Muffler 1/4 male SFE series

SFE14

€0.95 (€0.77 tax excl.)

Pneumatic Muffler with 1/4" BSP male thread, made of brass, and stainless steel silencer element. They help reduce the level of noise produced by the air coming out of the cylinders and pneumatic valves. It also prevents dirt from entering the elements. tires. Reference: SFE 1/4 Representative image for illustrative purposes, the item supplied will...

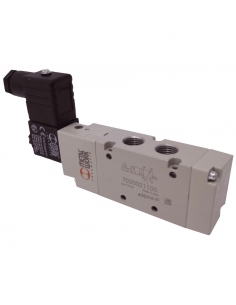

solenoid valve 1/4 5 monostable roads - Metal Work - ADAJUSA

solenoid valve 1/4 5 monostable roads - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Electrovalve 1/4 5-way monostable without coil - Metal Work

7020021100

€65.10 (€52.93 tax excl.)

1/4" 5-way single-track, closed (NC) pneumatic valve for industrial and general use applications. Supports coils of size 22mm with Ø8mm core. Reference: 7020021100 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

View

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€8.50 (€6.91 tax excl.)

Home

Client support

ADAJUSA

C/ Mercurio, 7 28970 Humanes de (Spain)

+34 911354650 +34 912973850

From Monday to Thursday from 8:30 to 13:30 and 15:30 a 18:30. Friday from 8:30 to 13:30

Send a message

Your Account

Create customer account
Create Business Account

Follow us in our social

This website uses its own and third-party cookies to improve our services and show you advertising related to your preferences by analyzing your browsing habits. To give your consent to its use, press the Accept button.

More information Customize cookies

Functional cookies

Yes

Description and cookies

Functional cookies are strictly necessary to provide the services of the shop, as well as for its proper functioning, so it is not possible to refuse their use. They allow the user to browse through our website and use the different options or services that exist on it.


PHP_SESSID	adajusa.es	The PHPSESSID cookie is native to PHP and allows websites to store serialised status data. On the website it is used to establish a user session and to pass state data through a temporary cookie, which is commonly known as a session cookie. These Cookies will only remain on your computer until you close your browser.	Session
PrestaShop-#	adajusa.es	This is a cookie used by Prestashop to store information and keep the user's session open. It stores information such as currency, language, customer ID, among other data necessary for the proper functioning of the shop.	480 hours
rc::a	Google	It is used to read and filter bot requests.	Persistent
rc::c	Google	It is used to read and filter bot requests.	Persistent

Advertising Cookies

Yes

Description and cookies

These are cookies that collect information about the advertisements shown to users of the website. They can be anonymous, if they only collect information about the advertising spaces shown without identifying the user, or personalised, if they collect personal information about the user of the shop by a third party, for the personalisation of these advertising spaces.


ads/ga-audiences	Google	These cookies are used by Google AdWords to re-engage visitors that are likely to convert to customers based on the visitor’s online behaviour across websites.	Session

Analytics cookies

Yes

Description and cookies

Collect information about the user's browsing experience in the shop, usually anonymously, although sometimes they also allow the user to be uniquely and unequivocally identified in order to obtain reports on the user's interests in the products or services offered by the shop.


_ga	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	2 years
_gat	Google	Used by Google Analytics to throttle request rate	1 day
_gat_gtag_UA_#	Google	Used to throttle request rate.	1 minute
_gd#	Google	This is a Google Analytics Session cookie used to generate statistical data on how you use the website which is removed when you quit your browser.	Session
_gid	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	1 day

Performance cookies

Yes

Description

These are used to improve the browsing experience and optimize the operation of the shop.

Other cookies

Yes

Description

These are cookies without a clear purpose or those that we are still in the process of classifying.

Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work

Questions

Question about the product

16 other products in the same category:

Customers who bought this product also bought:

Client support

Company information

Your Account

Follow us in our social
