Solenoid valve 1/4 5 ways bistable 24Vdc 2W - Metal Work

€106.28 Tax included

€86.41 tax excl.

1/4" 5-way bile valve, closed (NC), for industrial and general applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm. 22mm connector


Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 5 ways bistable. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve. The coil is not included in the supply.

Provider: Metal Work.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm.

22mm plastic connector

The supply includes:

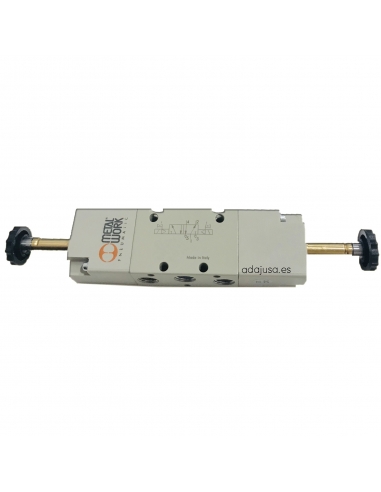

  • 1 Solenoid valve 1/4 5/2 bistable
  • 2 Coil 24Vdc 2W
  • 2 x 22mm connector

characteristics:

  • Operating pressure: 1 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Voltage: 24Vdc
  • Consumption: 2W
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 7.5 mm
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min:1100
  • Monostable TRA/TRR at 6 bar ms: 19/45
  • Bistable TRA/TRR at 6 bar ms: 21/21
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15

electrovalvula 1/4-5/2 biestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
