Electrovalve 1/4 5-way bistable - Metal Work - ADAJUSA

Solenoid valve 1/4 5 bistable roads without coils - Metal Work

Name: Solenoid valve 1/4 5 bistable roads without coils - Metal Work
Brand: Metal Work
SKU: 7020021200
Price: 89.81 EUR
Availability: InStock

€89.81 Tax included

73.02 tax excl.

7020021200

1/4" 5-way bile valve, closed (NC), for industrial and general applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7020021200

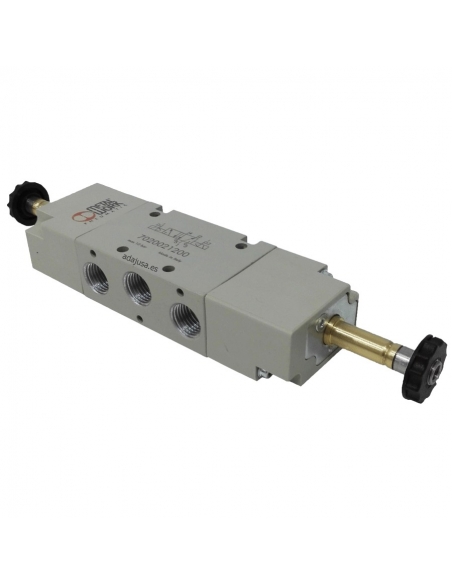

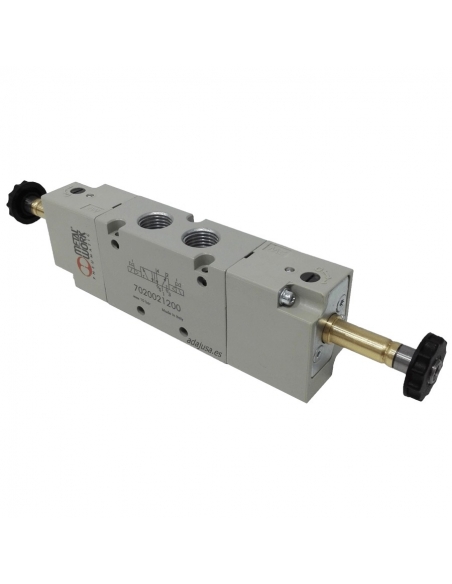

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 5-way bistable pneumatic solenoid valve. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve. The coil is not included in the supply.

Supplier: Metal Work.

- Solenoid valve: 7020021200

Features:

Operating pressure: 1 ÷10 bar
Minimum attendance pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 7.5 mm
Conductance C Nl/min ? bar: 264.26
Critical relationship b bar/bar: 0.27
Flow rate at 6 bar P 0.5 bar Nl/min: 750
Flow rate at 6 bar P 1 bar Nl/min:1100
TRA/TRR monostable at 6 bar ms: 19/45
TRA/TRR bistable at 6 bar ms: 21/21
Coil voltage: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Solenoid valve 1/4-5/2 biestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
