Micro-pressure regulator 1/4 0-12 bar Bit Group - Metal Work - ADAJUSA
Micro-pressure regulator 1/4 0-12 bar Bit Group - Metal Work - ADAJUSA

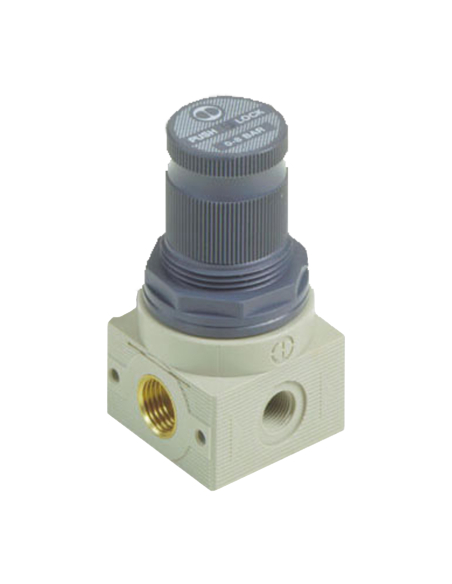

Pressure regulator 1/4 0-12 bar plastic with quick exhaust Bit - Metal Work

€31.46 Tax included

25.58 tax excl.

5202004

Pressure regulator of 1/4 regulation 0-12 Kgrs, plastic body and built-in quick exhaust valve. It allows stability of the outlet pressure to the preset pressure. Transpanel or square fixation. Bit Group

Pressure gauge and bracket not included (can be ordered separately)

Reference: 5202004

Simbolo neumático regulador de presión

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4" pneumatic pressure regulator technopolymer body, with quick discharge valve for applications where excess pressure needs to be evacuated quickly. High adjusted pressure stability. The regulator provides a high flow rate with a reduced pressure drop. The controller supports transpanel (recessed) mounting.

The pressure gauge or shield is included in the supply.

  • Manufacturer: Metal Work
  • Reference: 5202004 - MR BIT SR 1/4 012
  • Size: 1/4"
  • Regulation range: 0-12 bar.
  • Maximum input pressure: 13 bar.
  • Flow rate: 600Nl/min.
  • Fluid: Filtered air with or without lubrication.
  • Maximum temperature: 50oC.
  • Weight: 80gr.
  • Mounting position: any.
  • Pressure gauge connection: G 1/8".
  • Material: technopolymer.

For other models or sizes consult

Dimensiones reguladores de presión serie bit Metal Work

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
