Regulator pressure 1/4 0-12 bar technopolymer Syntesi - Metal Work

Name: Regulator pressure 1/4 0-12 bar technopolymer Syntesi - Metal Work
Brand: Metal Work
SKU: 5612R162
Price: 33.32 EUR
Availability: InStock

€33.32 Tax included

27.09 tax excl.

5612R162

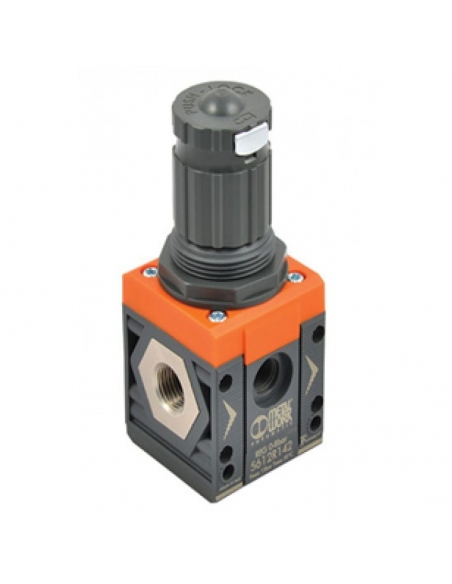

Pressure regulator of 1/4 regulation 0-12 Kgrs, body in technopolymer extreme reliability. It allows stability of the outlet pressure to the predetermined pressure. Possibility of fixing by means of side drills. Padlock locking system. Syntesi Group
Reference: 5612R162

Manometer not included (can be ordered separately, screw pressure gauge 1/8)

Simbolo neumático regulador de presión

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pressure regulator of 1/4 0-12 Kgrs, body made of high strength technopolymer. Allows stability of the output pressure at the pre-set pressure from an inlet pressure equal to or higher. Possibility of fixing by side holes. Locking system.

It supports many different types of mounting, with the right accessories.

Technical details.

Manufacturer: Metal Work
Reference: 5612R162
Regulator size: size 1.
Threaded connection size: 1/4".
Regulation range: 0-12 bar.
Maximum input pressure: 15 bar.
Lock control: per padlock (not included).
Flow rate at 6 bar (&DELTA; P1bar): 2800 Nl/min.
Fluid: Air filtering, with or without lubrication.
Wall fixing screws: M4x40.
Meter connection: 1/8".
Mounting position: Any.
Weight: 188 g.

For other models or sizes consult.

Dimensiones regulador syntesi talla 1 Metal Work

Formas de montaje reguladores syntesi

Mounting accessories not included.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Filters and Lubricators Tab

Download (410.99KB)
