Pneumatic polyurethane tube 6x4mm blue 50m

Name: Pneumatic polyurethane tube 6x4mm blue 50m
Brand: Metal Work
SKU: SCPU4X6X50
Price: 33.42 EUR
Availability: InStock

€33.42 Tax included

€27.17 tax excl.

SCPU4X6X50

polyurethane Pneumatic tube , size 6x4mm in blue . Flexible linear tube with external diameter 6mm and internal diameter 4mm. 50 meter Box .

Tube made of PU98 polyurethane with an ester base (hardness 52 Shore D), product of the LONGLIFE series ideal for applications with pneumatic fittings. Recommended for industrial use, agricultural industry and extreme pressure conditions greater than 10 bar .

Reference: SCPU4X6X50

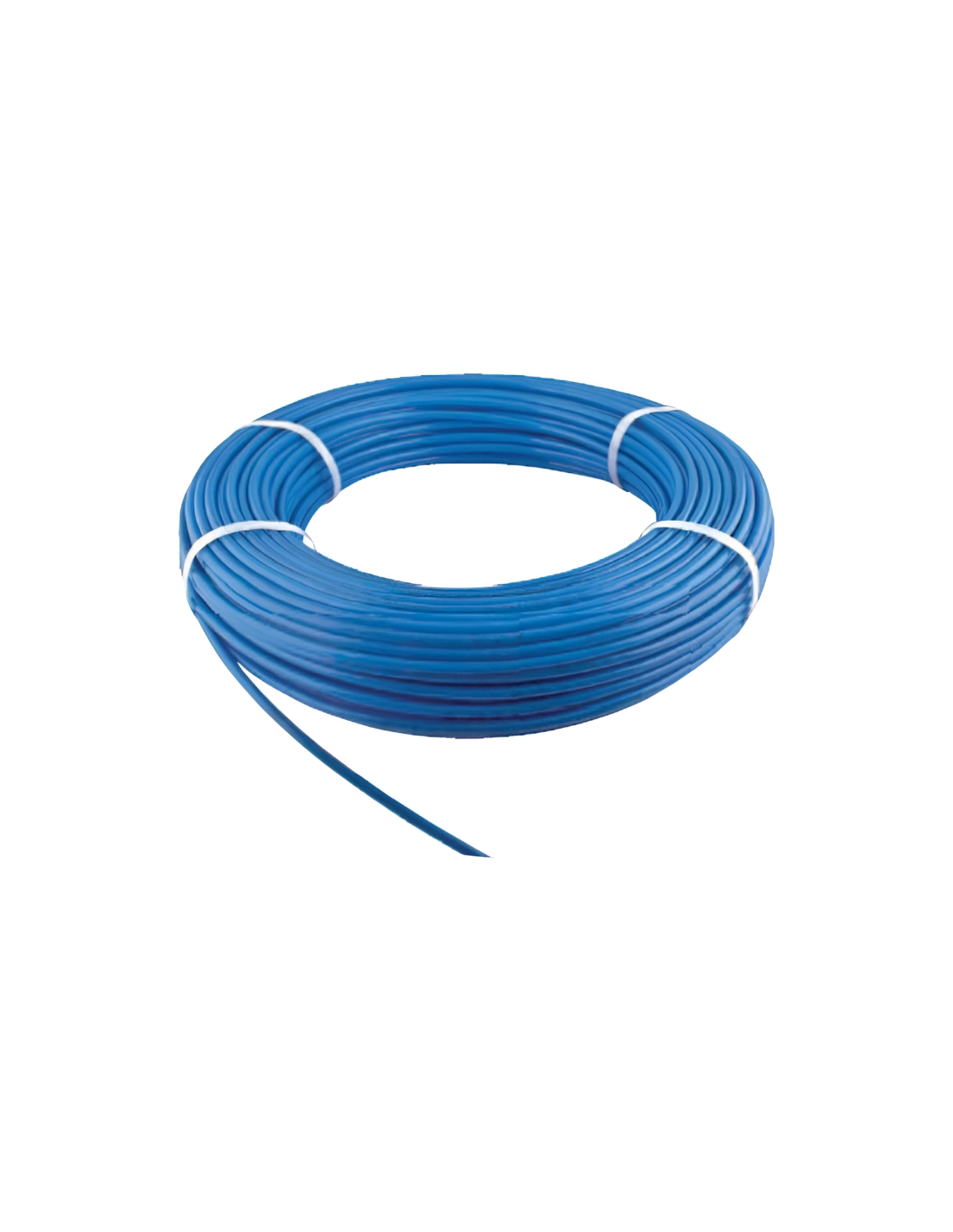

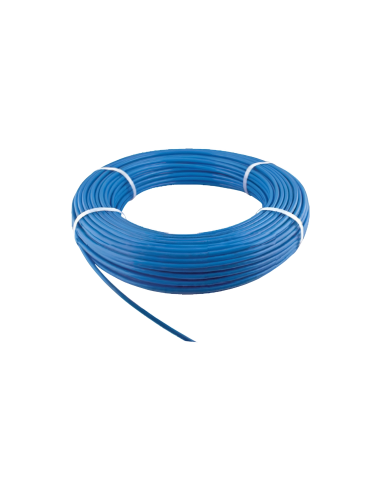

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flexible PU98 polyurethane tube with ester base (hardness 52 Shore D), product of the LONGLIFE series for pneumatic applications, measurement 6x4mm. Box of 50 meters, blue color.

Tube made of chemical polyurethane with a flexible ester base, suitable for almost all industrial standard low pressure pneumatic applications. Especially recommended for agricultural industry and extreme pressure conditions greater than 10 bar . It features excellent flexibility, dimensional stability, very tight bending radii, and good resistance to bending, abrasion, and high-speed handling. It has good resistance to high temperatures, good resistance to cold impact, as well as resistance to oils, greases, oxygen and ozone.

Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, energy chains, machine tools, etc.

Characteristics:

Manufacturer: Mebra
Reference: SCPU4X6X50
Measurement: 6x4mm
Quantity: 50m
Color blue
Outer diameter: 6mm
Inner diameter: 4mm
Thickness: 1mm
Minimum bending radius: 25mm
Hardness: SHORE 98 A / SHORE 49-55 D
Temperature: -40ºC to +60ºC
Operating pressure (23ºC): 13bar
Burst pressure safety factor: 3:1
Tolerances:
±0.05 in wall thickness
±0.05 in external Ø, up to Ø 10
±0.10 on the outside Ø, up to Ø 12
±0.5% on weight

NOTE: Not suitable for use with water and humid environments.

Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

polyurethane tube (PU98)

Download (678.73KB)
