Solenoid valve 1/4 5 ways bistable differential - Metal Work

€91.12 Tax included

74.08 tax excl.

7020021300

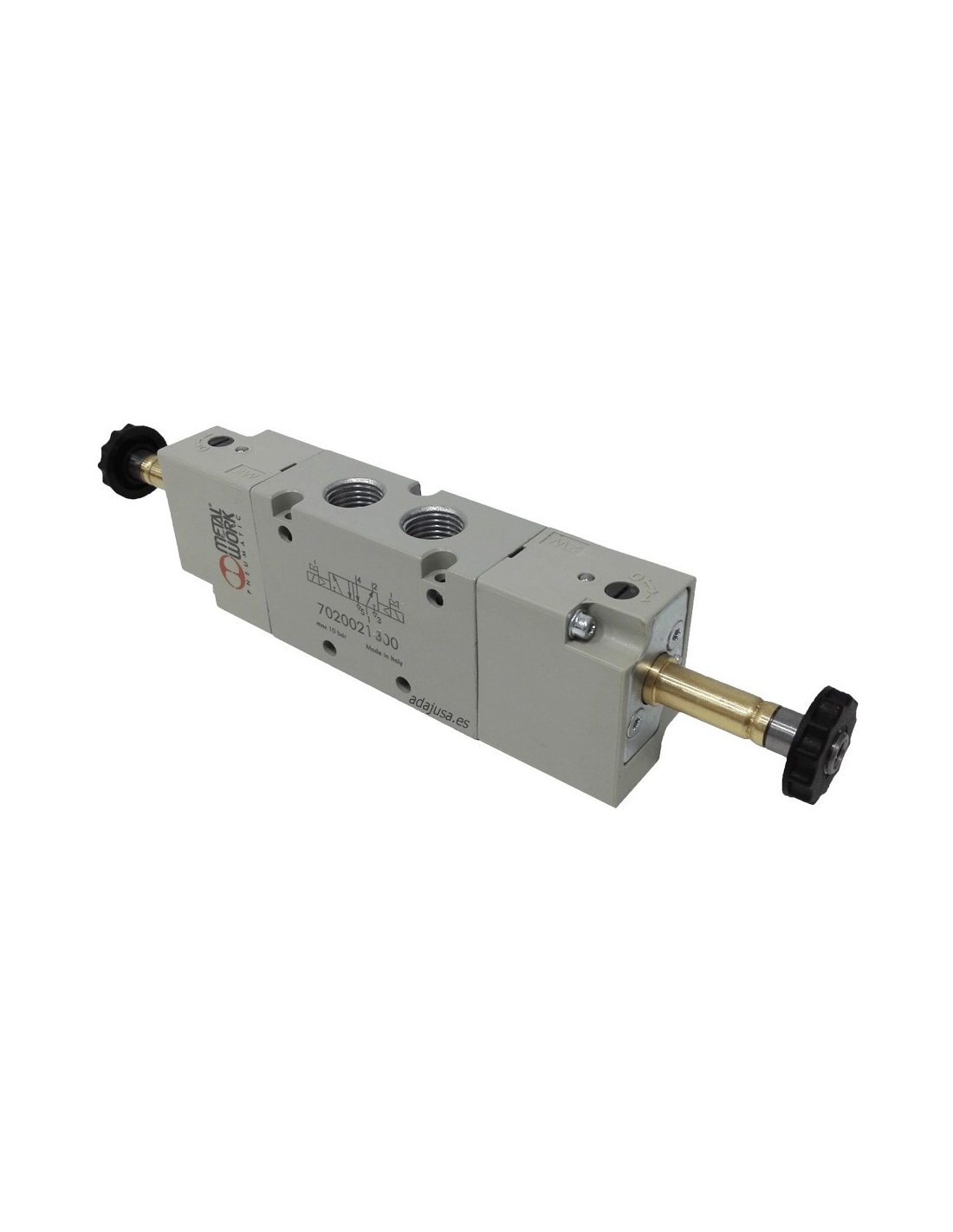

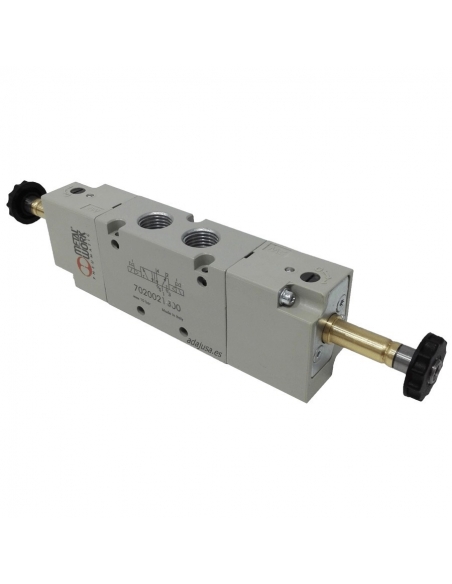

1/4" 5-way bianneumatic solenoid valve, differential, for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7020021300


Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 5 ways differential bistable. For general and industrial applications.



Characteristics:

  • Provider: Metal Work
  • Reference: 7020021300
  • Operating pressure: 1 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 7.5 mm
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min:1100
  • Monostable TRA/TRR at 6 bar ms: 19/45
  • Bistable TRA/TRR at 6 bar ms: 21/21
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15

electroválvula 1/4-5/2 biestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

electrovalve 1/4 5 vias 3 positions 24Vac 3,5VA pressure centers - Metal Work - ADAJUSA electrovalve 1/4 5 vias 3 positions 24Vac 3,5VA pressure centers - Metal Work - ADAJUSA 2
  • Pack
Solenoid valves 1/4

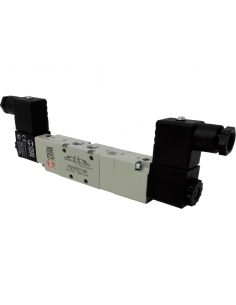

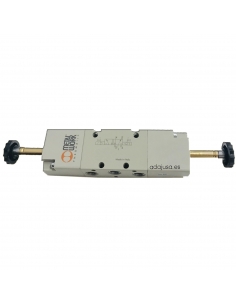

Solenoid valve 1/4 5 vias 3 positions 24Vac 3.5VA pressure centers - Metal Work
