Solenoid valve 1/4 5 vias 3 positions 24Vac 3.5VA pressure centers - Metal Work

Name: Solenoid valve 1/4 5 vias 3 positions 24Vac 3.5VA pressure centers - Metal Work
Brand: Metal Work
SKU: PK-145324AP
Price: 135.20 EUR
Availability: BackOrder

€135.20 Tax included

109.92 tax excl.

PK-145324AP

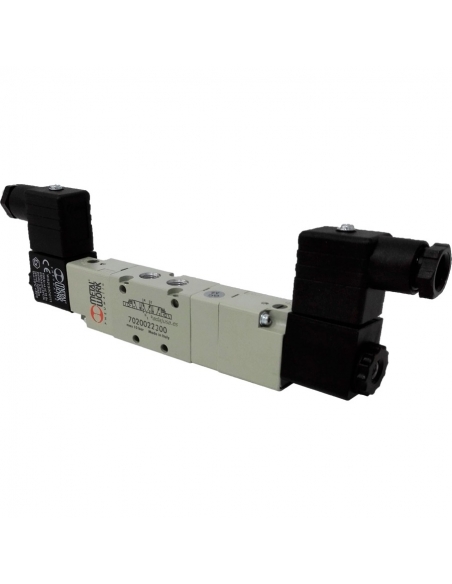

1/4" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.45

Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€8.92

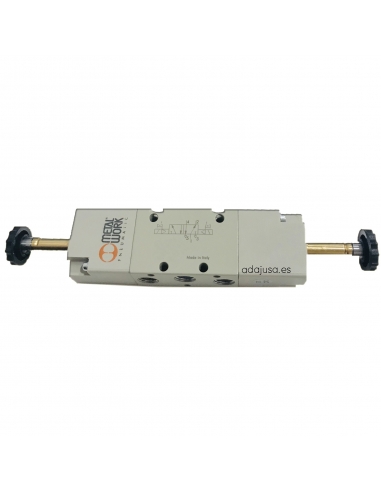

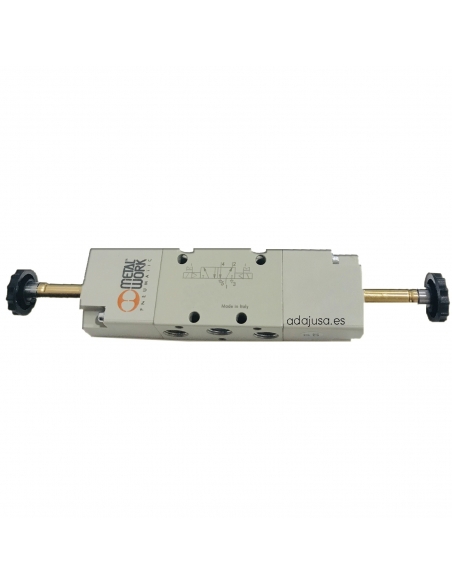

Electrovalve 1/4 5 vias 3 positions pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/4 5 vias 3 positions pressure centers - Metal Work

€114.46

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4" 5-way, 3-position solenoid valves, pressure centers, metal body, for industrial or general pneumatic applications, the most common application is dual-effect cylinder control. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.

22mm plastic connector

Supply includes:

1 Electrovalve 1/4 5/3 centers pressure
2 Coils 24Vac 3.5VA
2 22mm connectors

specifications:

Manufacturer of the solenoid valve: Metal Work.
Solenoid valve reference: 7020022300- SOV 36 SOS PC
Voltage: 24Vac
Consumption: 3.5VA
Working pressure of the solenoid valve: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 5mm.
Flow rate at 6 bars p 1 bar: 550 Nl/min.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
