Solenoid valve 1/4 5 vias 3 positions escape centers - Metal Work

Name: Solenoid valve 1/4 5 vias 3 positions escape centers - Metal Work
Brand: Metal Work
SKU: 7020022200
Price: 114.44 EUR
Availability: BackOrder

€114.44 Tax included

93.04 tax excl.

7020022200

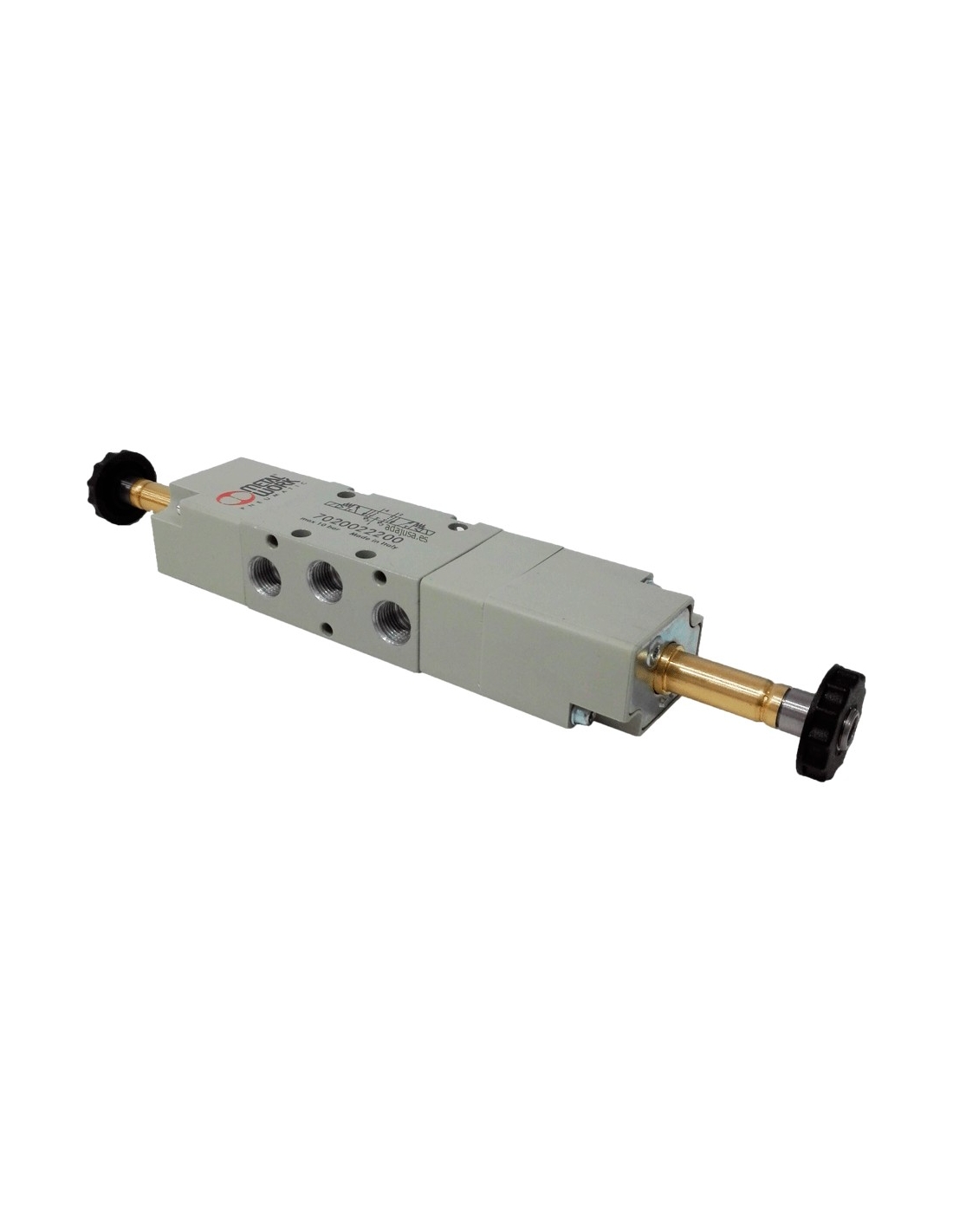

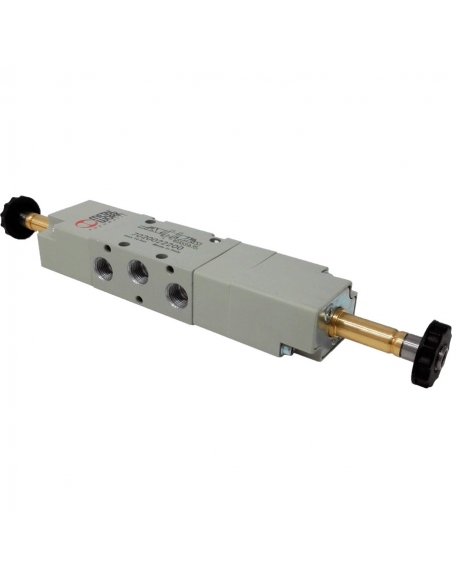

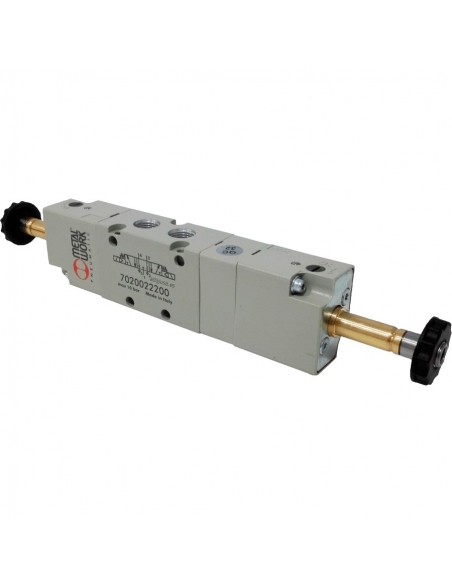

1/4" 5-way, 3-position solenoid valves, open exhaust centers, metal body, for pneumatic applications for industrial or general use.

Reference: 7020022200

Esquema electroválvula neumática 5/3 centros escape

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4" 5-way, 3-position solenoid valves, open exhaust centers, metal body, for industrial or general pneumatic applications, the most common application is double-effect cylinder control. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if one coil is fed the cylinder advances, if both coils are left without voltage, the cylinder will be without pneumatic pressure by any of its inputs, so that the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

Coils and connectors not included

specifications:

Manufacturer of the solenoid valve: Metal Work.
Solenoid valve reference: 7020022200 - SOV 36 SOS OC
Working pressure of the solenoid valve: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 5mm.
Flow rate at 6 bars p 1 bar: 550 Nl/min.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
