1/4 3-way bistable solenoid valve without coil - Metal Work - adajusa.es

Coil solenoid valve 24Vac 3.5 VA T22 '8 - Metal Work

electrovalve 1/4 3-way assisted bistable 110Vac 3,5VA - Metal Work - ADAJUSA

Solenoid valve 1/4 3 vias bistable assisted 110Vac 3.5VA - Metal Work

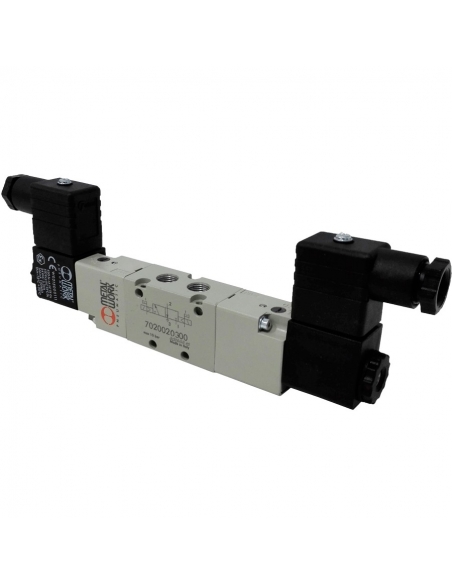

Name: Solenoid valve 1/4 3 vias bistable assisted 110Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-E143BIA110
Price: 106.6533 EUR
Availability: PreOrder

€106.65 Tax included

€86.71 tax excl.

1/4" 3-way assisted bi-stable pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110VAC., with a consumption of 3.5VA, for cores of 8mm. 22mm connector

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.39

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.50

Electrovalve 1/4 3-way assisted bistable - Metal Work - ADAJUSA

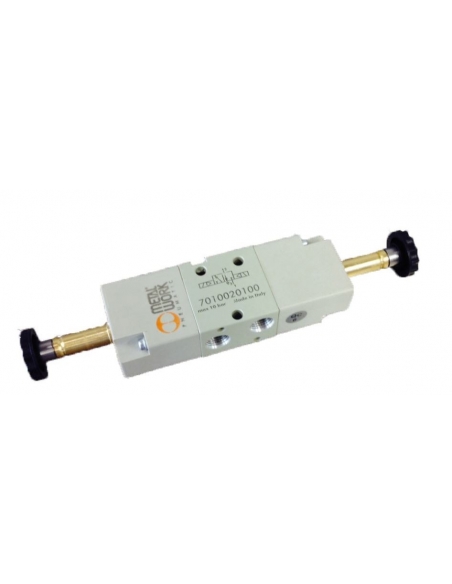

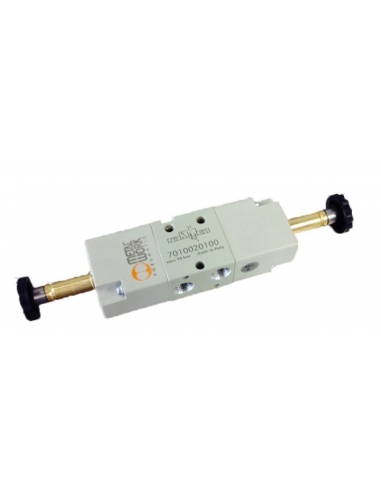

Solenoid valve 1/4 3-way bistable-assisted without coil - Metal Work

€86.87

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/4 3 assisted bistable roads, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.

Made of aluminum, compact size and high airflow, short response time.

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

Coil for solenoid valve size 22mm, voltage 110VAC., with a consumption of 3.5VA, for cores of 8mm.

Plastic connector 22 mm

Supply includes:

Solenoid valve 1/4 3 bistable ways assisted
Coil 110VAC 3.5VA
Connector 22 mm

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: 7020020300 - SOV 33 SEB OO
Type: 1/4-3/2 Assisted Bistable
Thread: G 1/4"
Voltage: 110VAC
Consumption: 3.5VA
Operating pressure: 0 bar÷10 bar
Minimum piltotage pressure: 2.5 bar
Working temperature: -10oC ÷ +60oC
Nominal diameter: 5mm.
Capacity at 6 bar P 0.5 bar: 400 Nl/min
Capacity at 6 bar P 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.19kg.
Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
