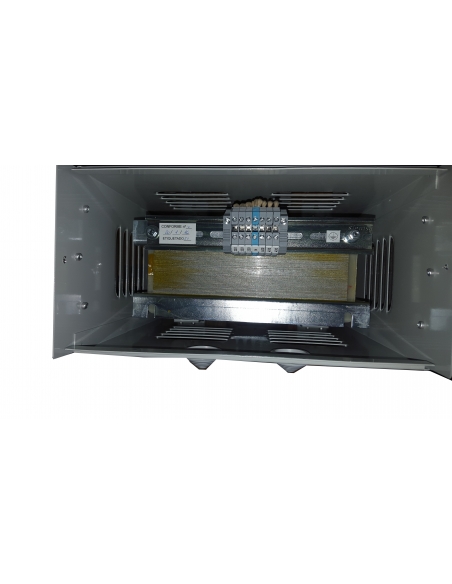

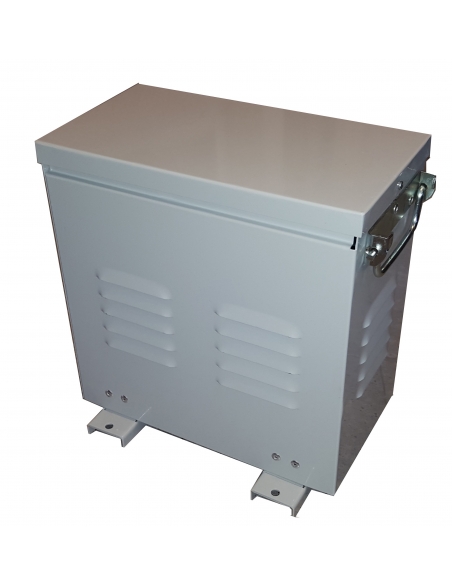

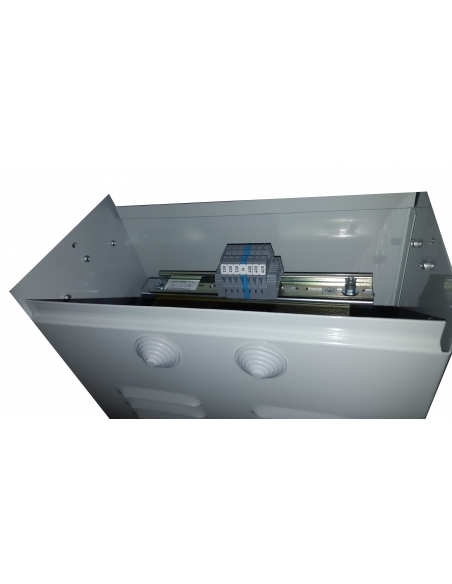

Three-phase 230/400V 2 KVA reversible autotransformer with box

€240.45 Tax included

195.49 tax excl.

ATT2

Three-phase 2kVA reversible autotransformer with metal case, which allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral.

It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.

Reference: ATT2

three-phase autotransformer electrical diagram

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Three-phase, dry-type, reversible autotransformer for voltage change, capable of generating neutral while transforming the voltage value. They are indicated when it is required to adapt the voltage in an economical way, without galvanic separation. Their usual field of application is the adaptation of voltages in machines, pumps, motors, etc. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals.

Manufactured with low loss magnetic sheet providing high performance.

Technical characteristics:

  • Reference: ATT2
  • Windings: Thermal class N 200ºC.
  • Transformation ratio 230/400V and neutral. Reversible.
  • Power: 2KVA.
  • Apparent intensity:
    • 400Vac: 2.9A
    • 230Vac: 5A
  • Frequency: 50/60Hz.
  • Connection: Yn0.
  • Test voltage: 3KV between windings and ground.
  • Insulators: Thermal class F 155ºC YH 180ºC.
  • Protection: IP-23 (Metal Box ).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certificate: UNE-EN 61558, UNE-EN 60076.

Dimensions of three-phase Sevein autotransformers

The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.
The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.
Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Question
Bonjour je possède une maison alimentaire en monophasé 220 volts.
J'aimerais alimenter une pompe à chaleur triphasé à partir de mon monophasé, est-ce que votre produit est capable de faire la conversion du 220 volts au 380 volts pour une pompe à chaleur de 2500 Watts ?

Merci de votre aide.
Answer

Bonjour,

Vous disposez d'une ligne électrique triphasée et souhaitez alimenter une pompe avec une tension triphasée ?

Nous sommes désolés mais nous n'avons pas de transformateurs pour passer du monophasé au triphasé. Nous disposons d'équipements pour convertir le triphasé en monophasé.

Nous restons à votre disposition pour toute question complémentaire.

Salutations

ADAJUSA

Franck on 06/17/2024 14:36:47
Question
Hola podría utilizar un inversor de estos para una instalación FV trifásica con puerto de generador e inyectarle la monofasica de un eólico que tiene un inversor de 3000 w en monofasico y convertirlos en trifasico para darle entrada al FV trifasico por la entrada del generador y así poder alimentar las baterías del inversor trifasico
Sería viable con este transformador o sería mejor un variado de frecuencia
Answer
Buenos días.

El producto al que hace referencia es un autotransformador trifásico 230/400 Vac 2 KVA soporta una carga de 1,4 KW, el fabricante recomienda dimensionarlos un 20 % por tanto no debe ser sometido a una carga mayor de 1,12 KW, a la salida del transformador hay que instalar un elemento decorte que esté en función con la intensidad máxima que es capaz de soportar.   Siempre y cuando el transformador reciba la tensión  e intensidad para la que está diseñado, hace su función.
 No obstante, verifique qeu cumpla con sus especificaciones.

Saludos

Adajusa
Ernesto on 01/13/2024 20:57:24

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

2
Single-phase and three-phase autotransformers

Three-phase 230/400V 60KVA reversible autotransformer with XMN Series box

MANUMAG
XMN02360623
€1,327.26 (€1,079.07 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 60kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral. Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc....
Three-phase reversible autotransformer with box 200 KVA XMN series | ADAJUSA | price Three-phase reversible autotransformer with box 200 KVA XMN series | ADAJUSA | price 2
Special manufacturing material
Single-phase and three-phase autotransformers

Three-phase 230/400V 200KVA reversible autotransformer with XMN Series box

MANUMAG
XMN02420623
€3,490.70 (€2,837.97 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 200kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral. Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc....
Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 40 KVA reversible autotransformer with box

MANUMAG
ATT40
€1,059.96 (€861.76 tax excl.)
Three-phase 40kVA reversible autotransformer with metal case, allows voltage adaptation from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. Also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference: ATT-40 Representative image for illustrative purposes,...
Single-phase autotransformer 125 220 500VA IP-20 Series AMN| ADAJUSA | price Single-phase autotransformer 125 220 500VA IP-20 Series AMN| ADAJUSA | price 2
Single-phase and three-phase autotransformers

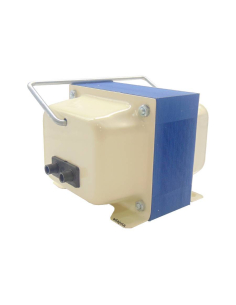

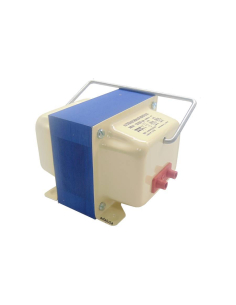

Single-phase autotransformer 500VA 125/220Vac IP-20 Series AMN

MANUMAG
AMN02150201
€30.53 (€24.82 tax excl.)
500VAsingle-phase reversible autotransformer for voltage adaptation between 125 and 220Vac, IP-20 protection degree. It allows to increase or decrease the mains voltage in order to provide the necessary voltage to domestic equipment, such as household appliances, for intermittent use. Supplied with cable with two European plugs.Reference: AMN02150201...
Three-phase reversible autotransformer with 2 KVA box XMN series | ADAJUSA | price Three-phase reversible autotransformer with 2 KVA box XMN series | ADAJUSA | price 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box

MANUMAG
XMN02220623
€172.66 (€140.37 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 2kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral.Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc.Reference:...
Three-phase reversible autotransformer with box 10 KVA XMN series | ADAJUSA | price Three-phase reversible autotransformer with box 10 KVA XMN series | ADAJUSA | price 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 10KVA reversible autotransformer with XMN Series box

MANUMAG
XMN02310623
€388.51 (€315.86 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 10kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral. Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc....
Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Specially manufactured material
Single-phase and three-phase autotransformers

Three-phase autotransformer 230/400V 63 KVA reversible with enclosure

Generico-SEV
ATT63
€1,412.62 (€1,148.47 tax excl.)
Three-phase 63kVAreversible autotransformer with metal enclosure, which allows voltage adaptation from three-phase 230Vac to three-phase 400Vac or three-phase 400Vac to three-phase 230Vac. It also generates neutral. It allows to adapt the voltage in machinery, motors, pumps, etc., in an economic way. Representative image for illustrative purposes, the...
Three-phase reversible autotransformer with 4 KVA box XMN series | ADAJUSA | price Three-phase reversible autotransformer with 4 KVA box XMN series | ADAJUSA | price 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 4KVA reversible autotransformer with XMN Series case

MANUMAG
XMN02240623
€232.03 (€188.64 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 4kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral.Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc.Reference:...
630VA IP-20 single-phase autotransformer 630VA IP-20 single-phase autotransformer 2
Special manufacturing material
Single-phase and three-phase autotransformers

Single-phase auto-transformer 630VA 230/400Vac IP-20

Generico-SEV
ATI2 630
€77.23 (€62.79 tax excl.)
630VA encapsulatedsingle-phase reversible autotransformer, allows voltage adaptation between 230/400Vac. Degree of protection IP-20. It allows to adapt the voltage in small machinery and household appliances in an economical way.Reference: ATI2 630 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
6300VA 230/400Vac IP-00 single-phase autotransformer
Special manufacturing material
Single-phase and three-phase autotransformers

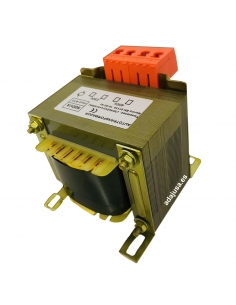

Single-phase autotransformer 6300VA 230/400Vac IP-00

Generico-SEV
AT2 6300
€300.23 (€244.09 tax excl.)
Single-phase 6300VAreversible autotransformer, allows voltage adaptation between 230 and 400Vac. It allows to adapt the voltage in small machinery and cabinets for automatisms in an economic way.Reference: AT2 6300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
3150VA 230/400Vac IP-00 single-phase autotransformer
Special manufacturing material
Single-phase and three-phase autotransformers

Single-phase autotransformer 3150VA 230/400Vac IP-00

Generico-SEV
AT2 3150
€163.58 (€132.99 tax excl.)
Single-phase reversible autotransformer of 3150VA, allows voltage adaptation between 230 and 400Vac. It allows to adapt the voltage in small machinery and cabinets for automatisms in an economical way.Reference: AT2-3150 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Three-phase reversible autotransformer with box 125 KVA XMN series | ADAJUSA | price Three-phase reversible autotransformer with box 125 KVA XMN series | ADAJUSA | price 2
Special manufacturing material
Single-phase and three-phase autotransformers

Three-phase 230/400V 125KVA reversible autotransformer with XMN Series box

MANUMAG
XMN02412623
€2,572.73 (€2,091.65 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 125kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral. Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc....
Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 8 KVA reversible autotransformer with box

MANUMAG
ATT8
€370.69 (€301.37 tax excl.)
Three-phase 8kVA reversible autotransformer with metal case, which allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral. Allows you to adjust the voltage in machinery, motors, pumps, etc., in an economical way.Reference: ATT8  Representative image for...
6300VA IP-20 single-phase autotransformer 6300VA IP-20 single-phase autotransformer 2
Special manufacturing material
Single-phase and three-phase autotransformers

Single-phase autotransformer 6300VA 230/400Vac IP-20

Generico-SEV
ATI2 6300
€364.40 (€296.26 tax excl.)
6300VAsingle-phase encapsulatedreversible autotransformer, allows voltage adaptation between 230/400Vac. Degree of protection IP-20. It allows to adapt the voltage in small machinery and household appliances in an economical way.Reference: ATI2-6300 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase autotransformer 230/400V 31.5 kVA reversible with enclosure

Generico-SEV
ATT31,5
€791.47 (€643.47 tax excl.)
Three-phase 31.5kVAreversible autotransformer with metal enclosure, allows voltage adaptation from three-phase 230Vac to three-phase 400Vac or three-phase 400Vac to three-phase 230Vac. It also generates neutral. It allows to adapt the voltage in machinery, motors, pumps, etc., in an economic way. Representative image for illustrative purposes, the item...

Customers who bought this product also bought:

Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 1 KVA reversible autotransformer with box

MANUMAG
ATT1
€224.43 (€182.46 tax excl.)
Three-phase 1kVA reversible autotransformer, with a metal box that provides an IP23 protection degree, allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference:...
Unipolar flexible cable roll 1 mm2 brown 200m
Cables for electrical installations

Unipolar flexible cable reel 2,5 mm halogen free brown color 100m

Top Cable
H07Z1AS-M251
€74.94 (€60.93 tax excl.)
Roll of 100m flexible cable of2.5mm2 halogen-free section, brown color, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575). Series: ToxFree ZH - H07Z1-K (AS). Color: Brown. Section: 2.5mm2. Representative image for illustrative purposes, the item supplied will...
Unipolar flexible cable roll 1.5 mm2 grey 200m
Cables for electrical installations

Single-pole flexible cable reel 2,5 mm halogen-free gray color 100m

Top Cable
H07Z1AS-G251
€74.94 (€60.93 tax excl.)
Roll of 100m flexible cable of2.5mm2 halogen-free section, gray color, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575). Series: ToxFree ZH - H07Z1-K (AS). Color: Grey. Section: 2.5mm2. Representative image for illustrative purposes, the item supplied will...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

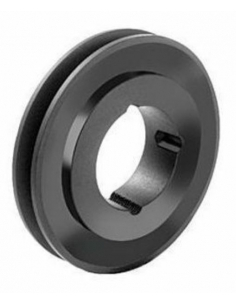

V-belt pulley 75mm 1 slot for shaft diameter 11mm type SPZ
