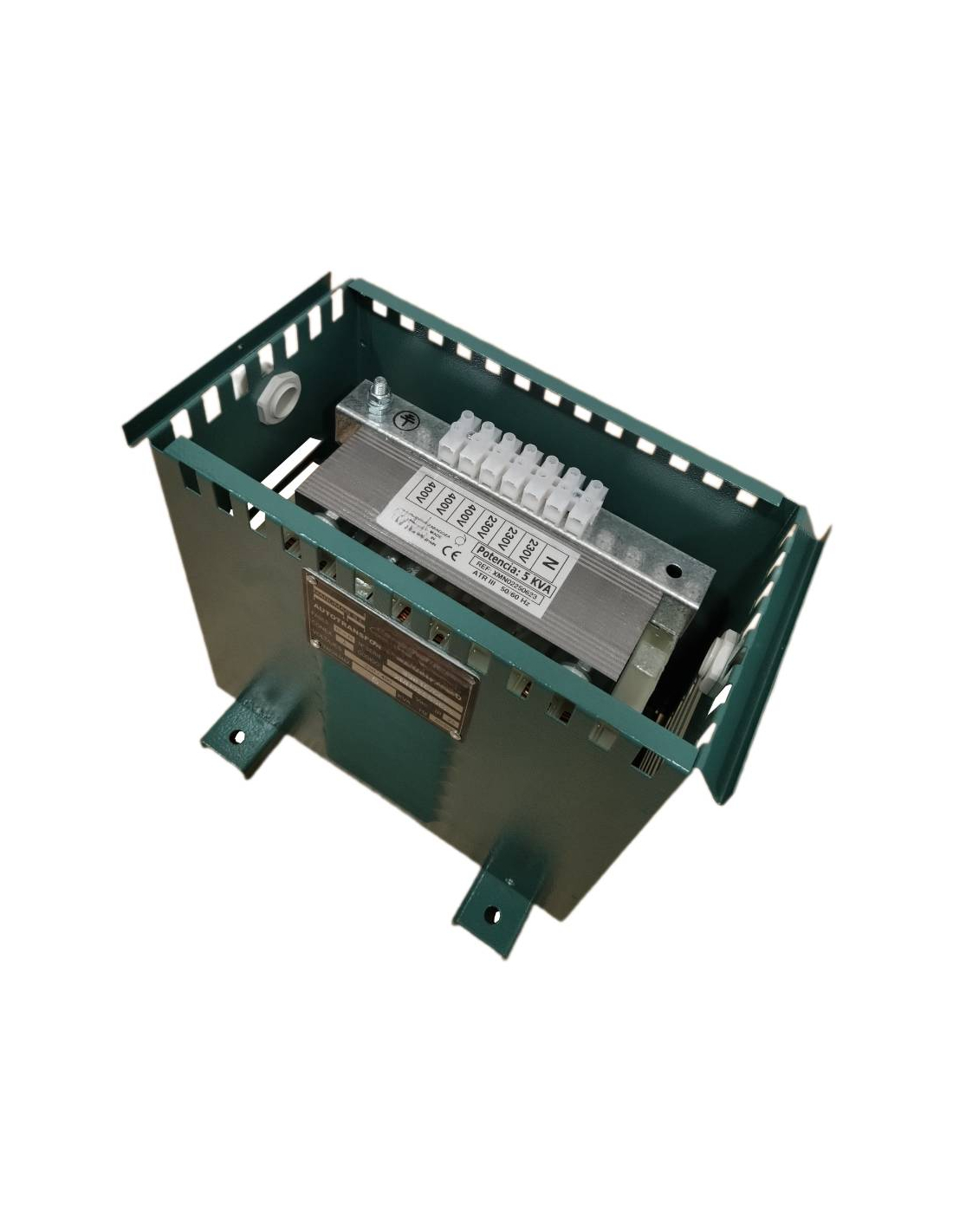

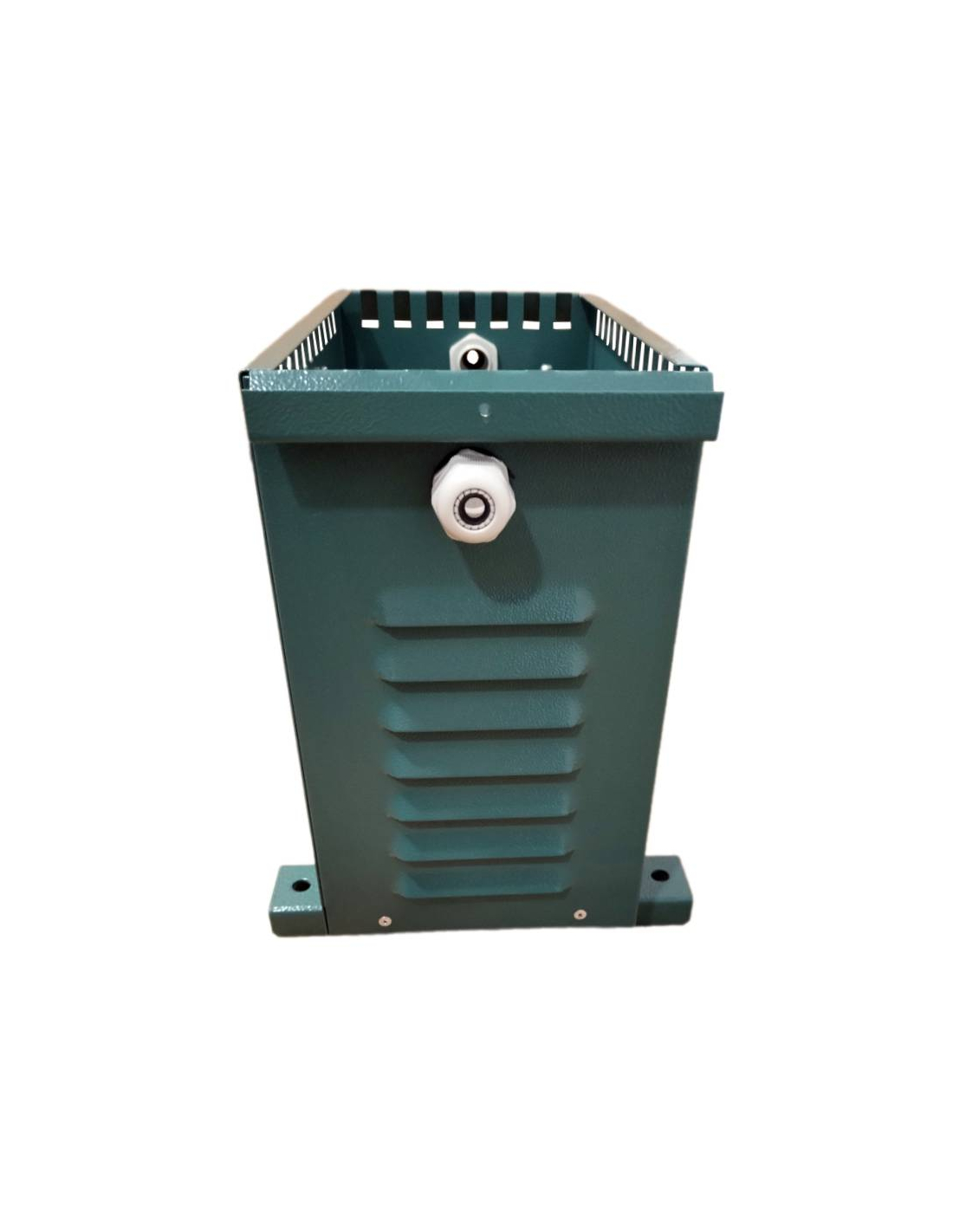

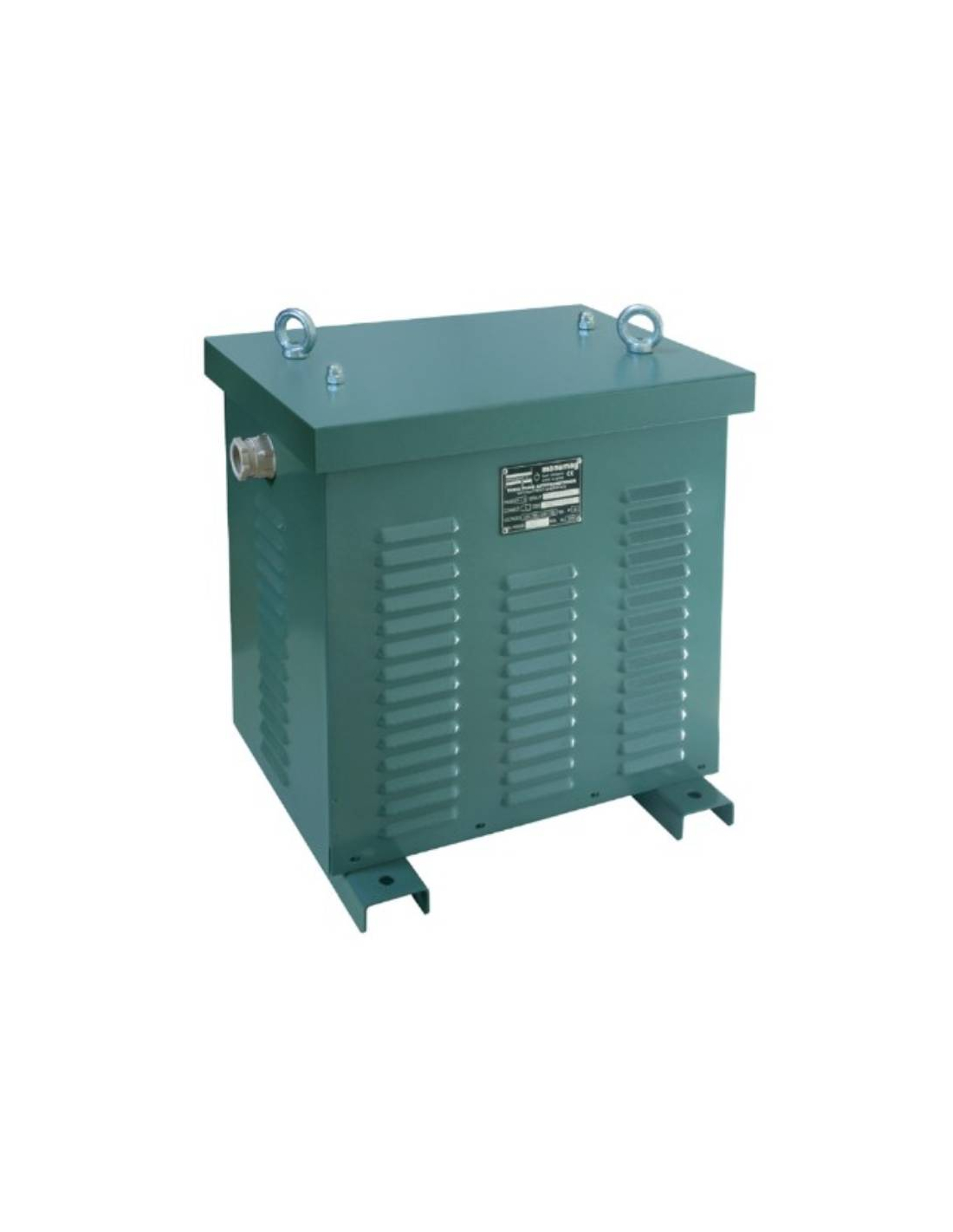

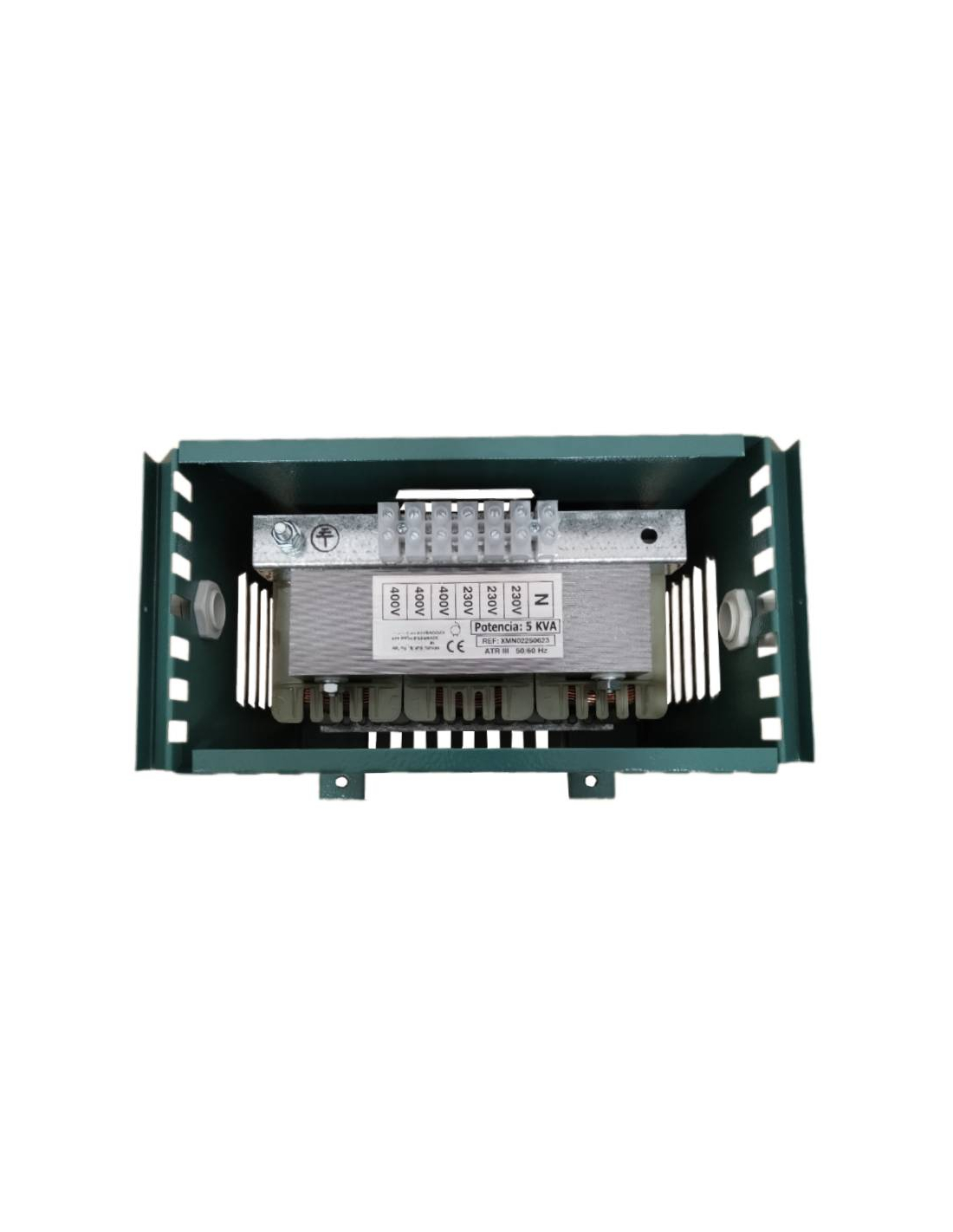

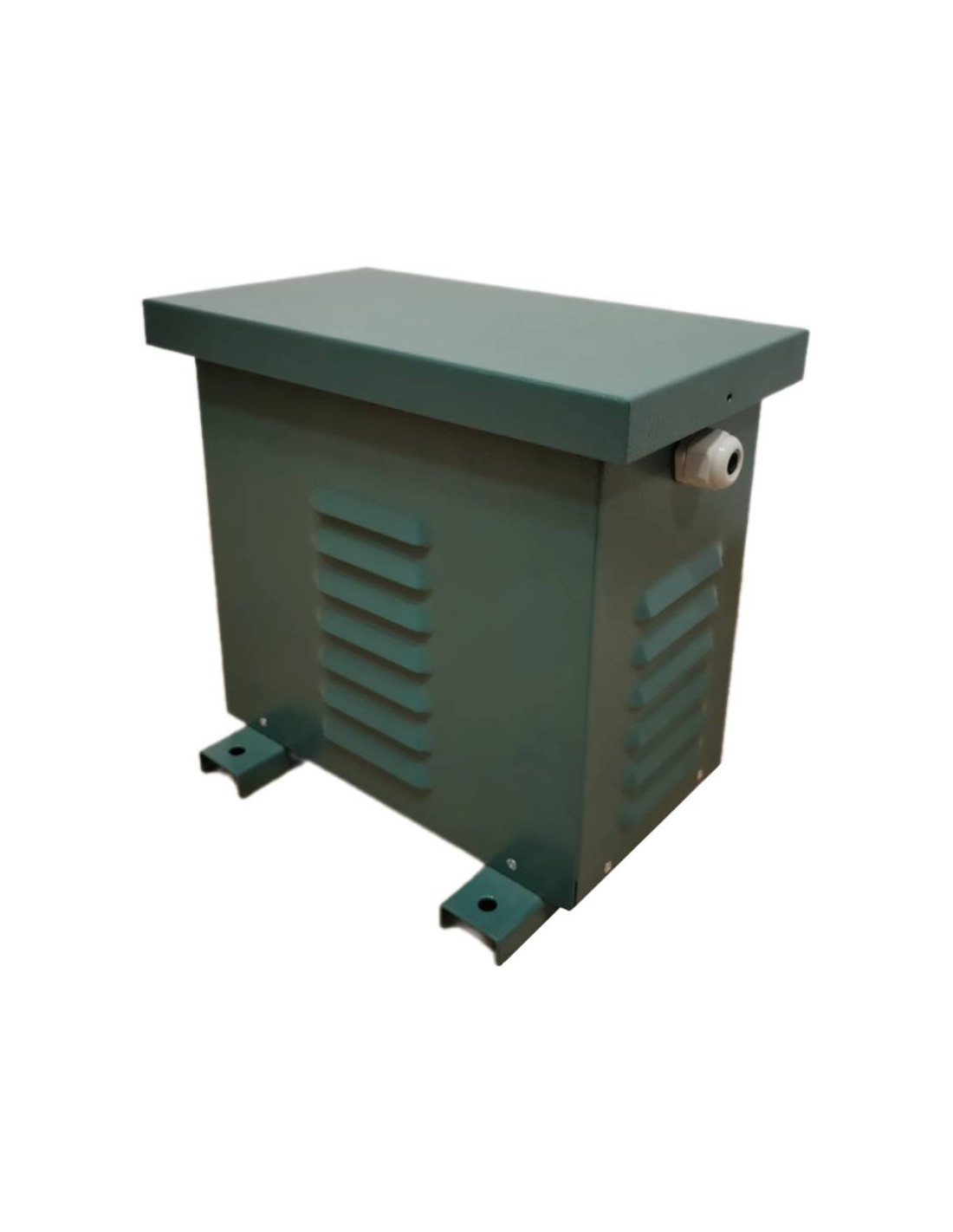

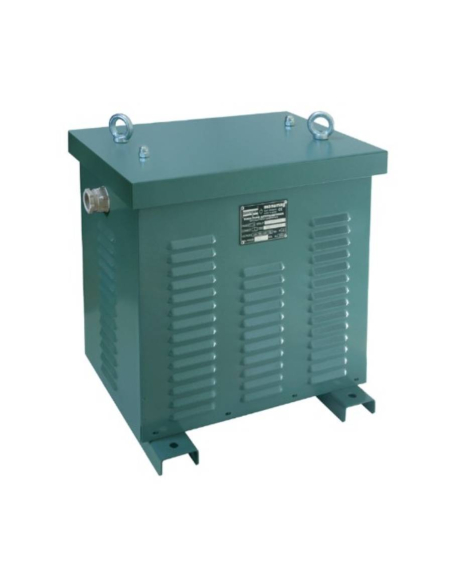

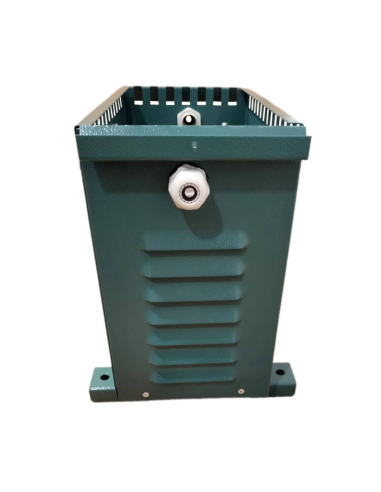

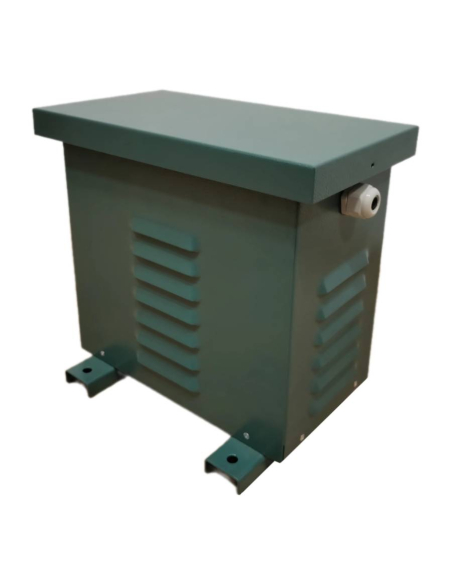

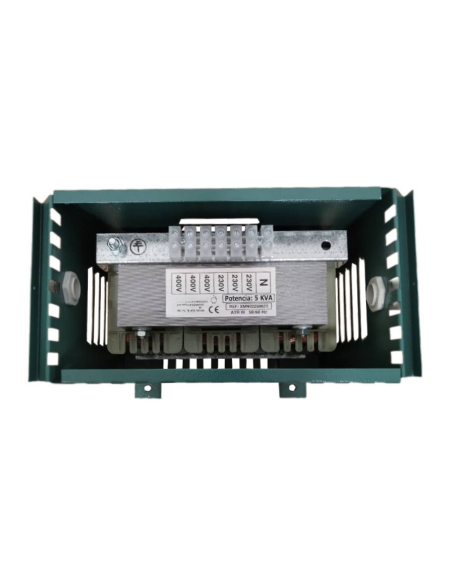

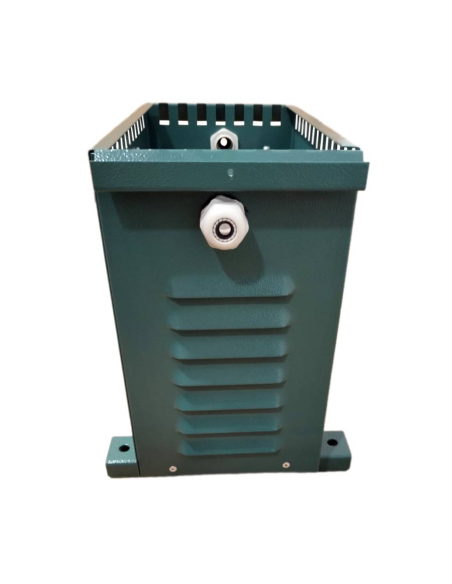

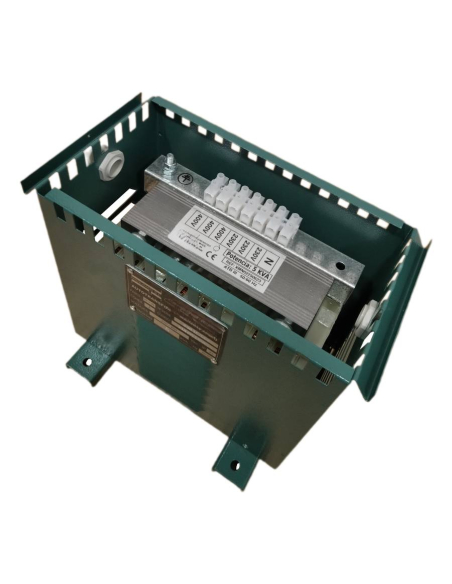

Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box
Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box
Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box
Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box
Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box

Three-phase 230/400V 2KVA reversible autotransformer with XMN Series box

€171.79 Tax included

€139.67 tax excl.

Three-phase 230/400Vac reversible voltage autotransformer of 2kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral.

Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc.


Reference: XMN02220623

three-phase autotransformer electrical diagram
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase reversible voltage autotransformer for changing voltage 230/400Vac. Dry-type autotransformer, capable of generating neutral while transforming the voltage value. These devices are indicated when it is required to adapt the voltage in an economical way. Its usual field of application is the adaptation of voltages in machines, pumps, motors, etc. They are supplied in a metal box that provides an IP-23 insulation degree, cable glands included.

The input and output voltages are derived from a common winding (Class H 180ºC) without galvanic isolation. They are designed to raise or lower the mains voltage in order to provide the voltage required for the equipment to which they are associated. Manufactured with low-loss magnetic sheet metal providing high performance.



Technical characteristics:

  • Manufacturer: Generico -MANU
  • Reference: XMN02220623
  • Transformation ratio 230/400V and neutral. Reversible
  • Power: 2KVA
  • Apparent intensity:
    • 400Vac: 2.9A
    • 230Vac: 5.0A
  • Frequency: 50/60Hz
  • Dielectric strength between primary and ground: 2750V
  • Connection: YN
  • Type: Dry
  • Protection grade: IP-23 (Metal Box )
  • Protection class: I
  • Insulation class: T40/F
  • Room temperature: 40ºC
  • Cooling: Natural air
  • Terminals: 6mm connection strip
  • Weight: 10Kg
  • Regulations: Compliant with EN 61558-2-13








The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.

The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.



Professional use material, install in compliance with the regulations in force at the installation site.
