€4.38 Tax included

€3.56 tax excl.

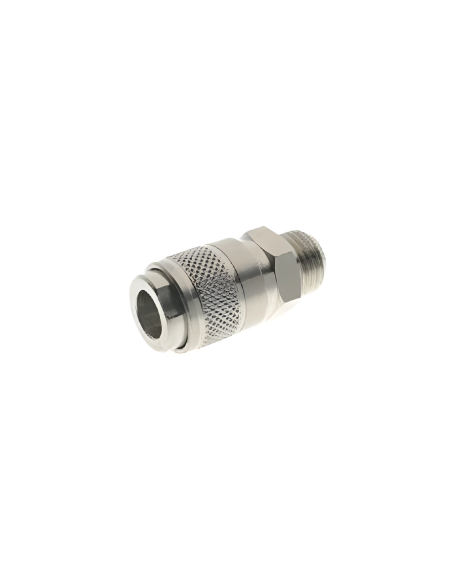

G 1/8 male thread quick coupling , Mignon profile. Plug valid for Mignon profile adapters guaranteeing perfect sealing. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.


Series: 110
Reference: 111 1/8
661schemeaignep
certificate191

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


G 1/8 thread quick connect plug. Mignon profile socket compatible with adapters of the same profile. This type of plug provides a high flow rate and low pressure drop, avoiding air loss between the plug and the tool. They are widely used in applications that require frequent and quick connections and disconnections, such as industrial facilities, workshops or garages.


The use of quick couplings in pneumatic installations provides a quick and easy method of connecting tools, machinery and other elements to the installed pneumatic distribution network. The body is made of nickel-plated brass, the spring and dial are made of stainless steel and the gaskets are made of NBR.





Main technical characteristics:

  • Manufacturer: Aignep
  • Reference: 111 1/8
  • Thread type: G 1/8 male
  • Compatible fluid: Compressed air
  • Gaskets: NBR
  • Working pressure: 0 to 12 bar
  • Maximum static pressure (without pulsations): 35 bar
  • Working temperature range: - 20ºC to +80ºC
  • Passage diameter (DN): 5mm
  • Flow rate at 6 bar ΔP 1 bar : 650 Nl/min
  • Flow rate at 6 bar ΔP 0.5 bar : 480 Nl/min
  • Flow rate at 6 bar ΔP 0 bar : 1100 Nl/min (free exhaust)
  • Adapter compatibility: Mignon profile





Dimensions:







Material for professional use, install in compliance with the regulations in force at the installation site.
