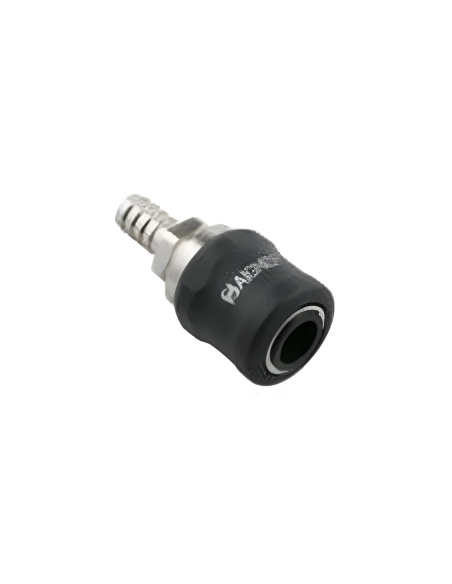

Quick coupling with European profile type spike, with security system, for 12mm outer diameter tube. This type of plug provides an easy and quick way to connect and disconnect tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the plug and the tool. These plugs are widely used in applications where frequent and quick connections and disconnections are required, such as industrial facilities, workshops or garages.
It has a disconnection system with safety depressurization that guarantees the safety of the operators during use, by having a system that prevents emptying of the installation once the connection element is uncoupled. This type of plug provides high flow rate and low pressure drop.
The body of the quick plug features a compact and ergonomic design. Made of technopolymer, NBR O-ring, stainless steel spring and sphere and nickel-plated brass terminal. Model compatible with European profile connections.
Compatible with the following series of Aignep brand adapters: 261, 262, 263, 264, 265, 266, 267, 268, 261AC, 262AC, 265AC.
Technical characteristics:
- Manufacturer: Aignep
- Reference: 665 12
- Type: Spike
- Tube outer diameter: 12mm
- Profile: European
- Compatible fluid: Compressed air
- Passage diameter (DN): 7.8mm
- Working pressure: -0.99 to 15bar
- Working temperature range: -20ºC to +80ºC
- Flow rate at 6 bar ΔP 1 bar : 1300 Nl/min
- Flow rate at 6 bar ΔP 0.5 bar : 1050 Nl/min
- Flow rate at 6 bar ΔP 0 bar : 1830 Nl/min (free exhaust)
Material for professional use, install in compliance with the regulations in force at the installation site.
