Tube quick coupling with spring 8/6 universal...
Tube quick coupling with spring 8/6 universal series - Aignep

Tube quick coupling with spring 8/6 universal series - Aignep

€7.60 Tax included

€6.28 tax excl.

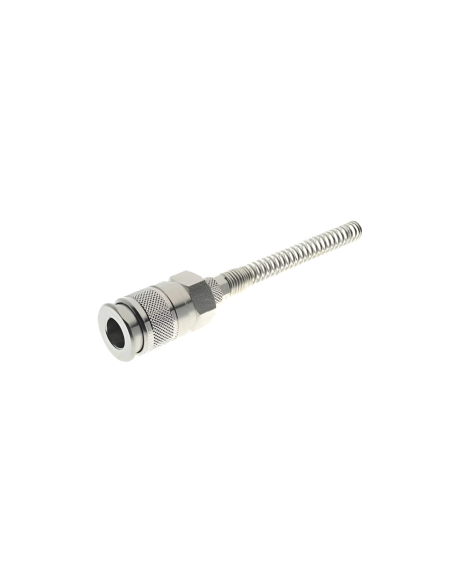

Quick coupling with spring for Ø8x6mm tube , Multipresa series. Universal profile plug, interchangeable with all the different types of adapters approved in the European market, guaranteeing perfect tightness for all of them. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.

Compatible and interchangeable with profile adapters European, Swedish, Italian, UNI ISO 6150 B-12.


Series: Multidam
Reference: 193 8/6
661schemeaignep
certificate191

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Quick connection plug with stainless steel protective spring for flexible tube or hose measuring Ø8x6mm. Universal type plug, interchangeable with all adapters approved in the European market; a single plug that fits the following adapter profiles: European, Swedish, Italian, UNI ISO 6150 B-12. This type of plug provides a high flow rate and low pressure drop, avoiding air loss between the plug and the tool. They are widely used in applications that require frequent and quick connections and disconnections, such as industrial facilities, workshops or garages.





The use of quick couplings in pneumatic installations provides a quick and easy method of connecting tools, machinery and other elements to the installed pneumatic distribution network. The Multipresa series quick plugs are a practical and economical solution for interchangeability with different types of adapters, both in shape and dimensions, which generally require specific plugs that are not interchangeable between them.

The body is made of nickel-plated brass, the spring and dial are made of stainless steel and the gaskets are made of NBR. AISI 304 Stainless steel spiral spring - EN 1.4301.




Main technical characteristics:

  • Manufacturer: Aignep
  • Reference: 193 8/6
  • Type: Tube with spring
  • Tube dimensions: Ø 8x6mm
  • Compatible fluid: Compressed air
  • Gaskets: NBR
  • Spring: AISI 304 Stainless Steel - EN 1.4301
  • Working pressure: 0 to 16 bar
  • Maximum static pressure (without pulsations): 35 bar
  • Working temperature range: - 20ºC to +80ºC
  • Adapter compatibility: European, Swedish, Italian, ISO 6150 B-12


Flow rate depending on the type of adapter: Series 260 - European Profile, Series 270 - Swedish, Series 250 - Italian, Series 220 - ISO 6150 B-12

flowtable



Dimensions:




Material for professional use, install in compliance with the regulations in force at the installation site.
