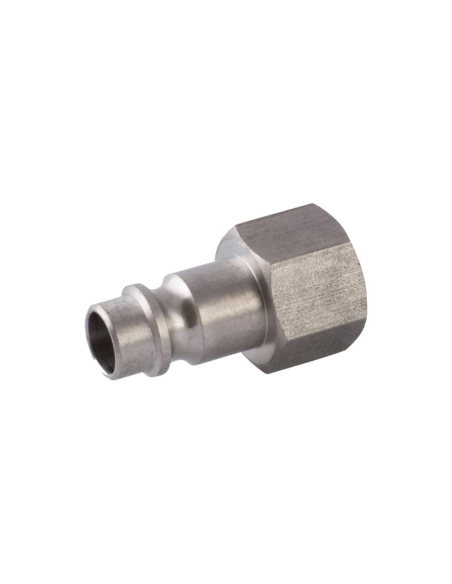

Adapter for quick plug G 3/8 female thread European profile, made entirely of AISI 316L STAINLESS steel. The use of quick couplings together with this type of adapters allows a simple and quick connection and disconnection of tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the plug and the tool; It offers high performance in terms of temperature, pressure and multiple fluids.
They are widely used in applications where frequent and quick connections and disconnections are required, such as industrial facilities, workshops or garages, compressed air tools, food and beverage industries, etc. Compatible with numerous fluids, both food and aggressive, they are used in a wide variety of industrial and food applications, thanks to their robustness and resistance to corrosion.
Technical characteristics:
- Manufacturer: Aignep
- Reference: 63262 3/8
- Thread type: Gas cylindrical 3/8 female
- Compatible fluid: Compressed air / Fluids for food and chemical industries
- Material: AISI 316L STAINLESS STEEL
- Working pressure: 0 to 16 bar
- Maximum static pressure (without pulsations): 35 bar
- Working temperature range: -15C to +200C
- Passage diameter (DN): 7.8mm
- Flow rate at 6 bar ΔP 1 bar : 1510 Nl/min
- Flow rate at 6 bar ΔP 0.5 bar : 1200 Nl/min
- Flow rate at 6 bar ΔP 0 bar : 2250 Nl/min (free exhaust)
Dimensions:
For more information you can download the technical sheet by clicking on the "Attachments" tab .
Material for professional use, install in compliance with the regulations in force at the installation site.
