Male safety quick connector 3/8 European profile – Aignep

Name: Male safety quick connector 3/8 European profile – Aignep
Brand: Aignep
SKU: 661 3/8
Price: 12.7534 EUR
Availability: InStock

€12.75 Tax included

€10.54 tax excl.

G 3/8 male thread quick coupling with safety system , used for compressed air systems. European profile plug with safety depressurization system upon disconnection, guaranteeing the safety of users in operation. Compact and ergonomic design.

Series: 660
Reference: 661 3/8

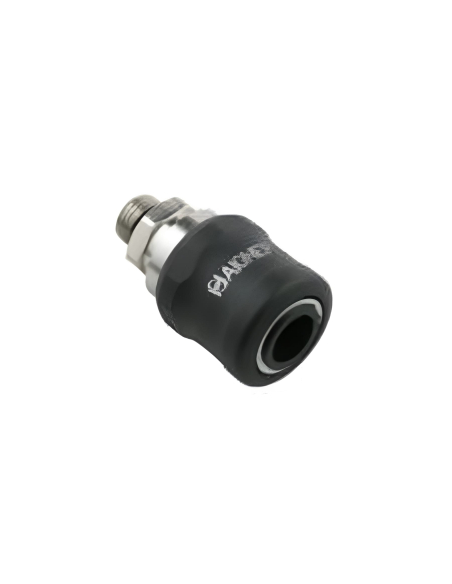

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

European profile quick plug with security system, G 3/8 male thread. This type of plug provides an easy and quick way to connect and disconnect tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the plug and the tool. These plugs are widely used in applications that require frequent and quick connections and disconnections, such as industrial facilities, workshops or garages.

It has a disconnection system with safety depressurization that guarantees the safety of the operators during use, by having a system that prevents emptying of the installation once the connection element is uncoupled. This type of plug provides high flow rate and low pressure drop.

The body of the quick plug features a compact and ergonomic design. Made of technopolymer, NBR O-ring, stainless steel spring and sphere and nickel-plated brass terminal. Model compatible with European profile connections.

Compatible with the following series of Aignep brand adapters: 261, 262, 263, 264, 265, 266, 267, 268, 261AC, 262AC, 265AC.

Technical characteristics:

Manufacturer: Aignep
Reference: 661 3/8
Thread type: G 3/8 male
Profile: European
Compatible fluid: Compressed air
Passage diameter (DN): 7.8mm
Working pressure: -0.99 to 15bar
Working temperature range: -20ºC to +80ºC
Flow rate at 6 bar ΔP 1 bar : 1300 Nl/min
Flow rate at 6 bar ΔP 0.5 bar : 1050 Nl/min
Flow rate at 6 bar ΔP 0 bar : 1830 Nl/min (free exhaust)

661dimensions
661TD

Material for professional use, install in compliance with the regulations in force at the installation site.

Serie 660 - Aignep

Download (1.02MB)
