Pneumatic pedal with protection cover 1/4 5 monostable Aignep 06V0000001 - PC 1/4 M : ADAJUSA : price

Pneumatic pedal 1/4 5/2 monostable with protection cover - Aignep

Name: Pneumatic pedal 1/4 5/2 monostable with protection cover - Aignep
Brand: Aignep
SKU: 06V0000001
Price: 63.37 EUR
Availability: BackOrder

€63.37 Tax included

€51.52 tax excl.

06V0000001

Pneumatic pedal with thread 1/4" of 5 way with mechanical locking and with protection cover in high resistance plastic material, of operation monostable, the pneumatic valve is activated while the pedal remains pressed returning to the rest position when it is released.

Reference: 06V0000001

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

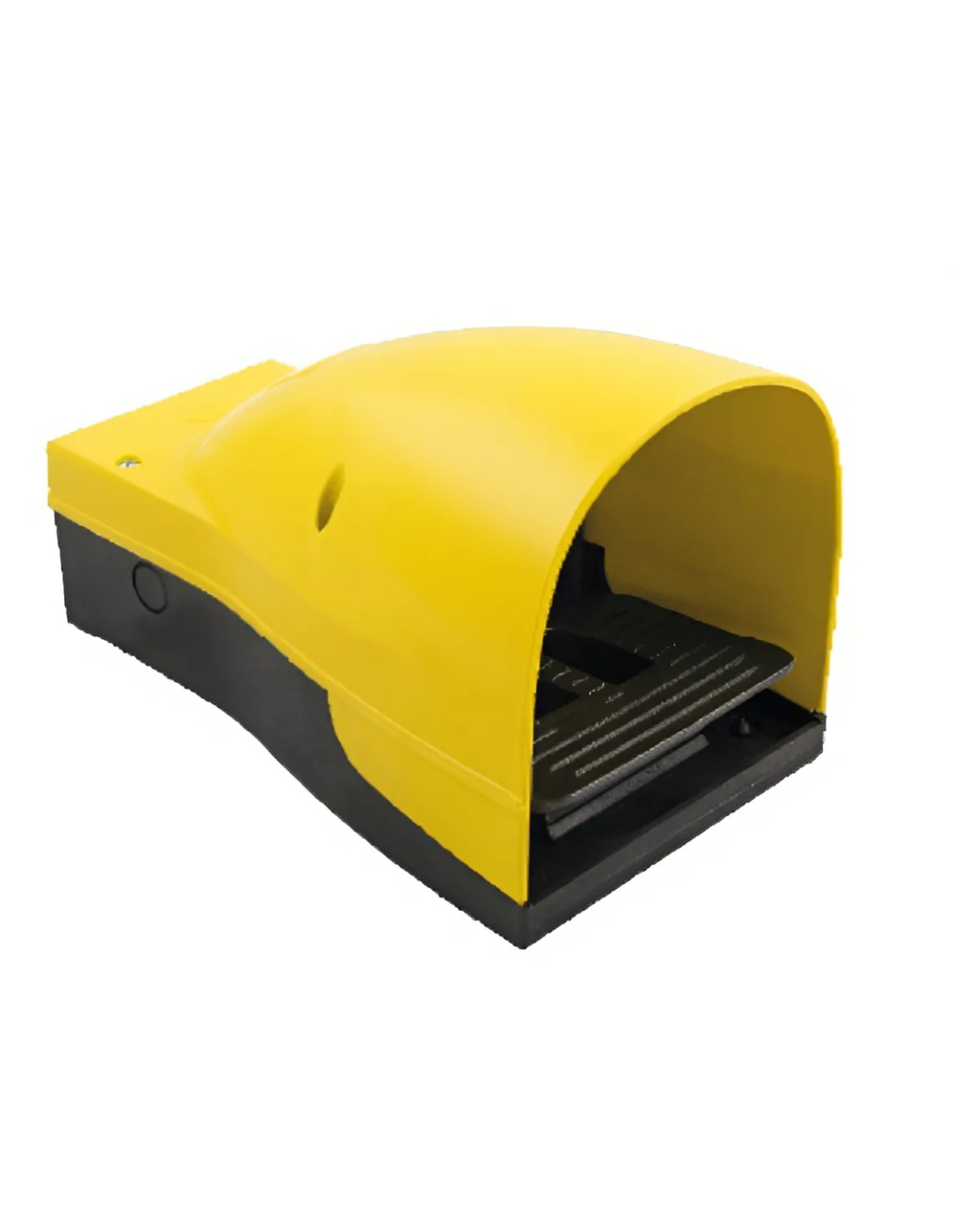

Pneumatic pedal with thread G 1/4" of 5 way monostable . The pedal is equipped with protection cover to avoid accidental operation, the body of the pedal is made of high resistance plastic material, in yellow color and the pneumatic valve in aluminum, operating monostable, the pneumatic valve is activated while the pedal remains pressed, returning to the rest position when it is released.

Technical characteristics:

Manufacturer: Aignep
Part number: 06V0000001 (previous reference PC 1/4 M)
Operation: monostable
Valve thread: 1/4"
Fluid: With or without lubrication, if there is lubrication it must be continuous
Type: 5 way, 2 positions monostable with protection
Working pressure: 2..10 bar. 0.2..1
Nominal diameter: 7.5mm
Fluid type: Filtered air 50um, with or without lubrication
Maximum working temperature: +60ºC

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Ficha técnica pedales neumáticos

Ficha técnica pedales neumáticos Aignep

Download (377.01KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Pneumatic pedal 1/4 5/2 monostable with protection - Metal work

Metal Work

W3120000001

€80.45 (€65.41 tax excl.)

Pneumatic pedal with 1/4" 5- way thread with protection cover in high-resistance plastic material, monostable operation, the pneumatic valve is activated while the pedal remains pressed, returning to the rest position when it is stopped. Reference: W3120000001 Representative image for illustrative purposes, the item supplied will correspond to the...

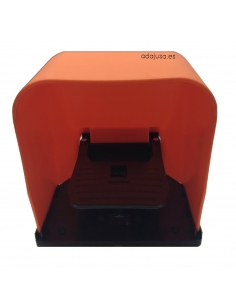

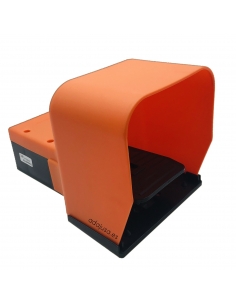

Bistable pneumatic pedal with protection - Metal Work

Bistable pneumatic pedal with protection - Metal Work 2

Pushbuttons and pneumatic actuators

Pneumatic pedal 1/4 5/2 bistable with protection - Metal Work

Metal Work

W3120000011

€80.45 (€65.41 tax excl.)

5-way 1/4" threaded pneumatic pedal with protective cover in high-strength plastic material, of bistable operation, the pneumatic valve is activated when the pedal is activated and remains activated until it is activated again. Reference:W3120000011 Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Pneumatic pedal M5 3/2 monostable Metal Work W3120000411 | ADAJUSA | price

Pushbuttons and pneumatic actuators

Unprotected monostable 3/2 M5 pneumatic pedal - Metal Work

Metal Work

W3120000411

€36.29 (€29.50 tax excl.)

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000411Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic pedal 4mm 3/2 monostable Metal Work W3120000401 | ADAJUSA | price

Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 4 mm monostable without protection - Metal Work

Metal Work

W3120000401

€39.80 (€32.36 tax excl.)

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000401 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

11 other products in the same category:

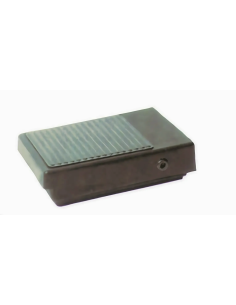

Electric foot pedal monostable Aignep 06V0000013 | Adajusa
