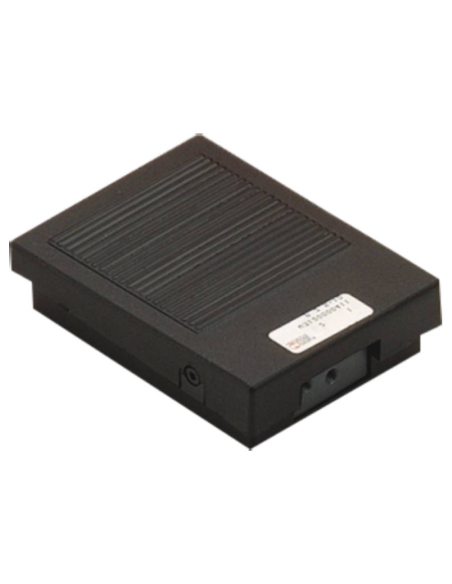

Pneumatic pedal 3/2 4 mm monostable without protection - Metal Work

€39.80 Tax included

32.36 tax excl.

W3120000401

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000401

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic pedal with 4mm thread of 3/2 monostable ways. The pneumatic valve is made of aluminum, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: W3120000401 (PEV 03 PES WP)
  • Valve thread: 4mm
  • Fluid: With or without lubrication, if there is lubrication it must be continuous.
  • Typology: 3 ways, 2 monostable positions with protection.
  • Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
  • Nominal diameter: 2.5 mm.
  • Conductance C: 16.5 Nl/min-bar.
  • Critical ratio: 0.03 bar/bar.
  • Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
  • Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work

Metal Work
W3120000311
€64.10 (€52.11 tax excl.)
Pneumatic pedal with thread diameter 4 mm of 3 ways with protective cover in plastic material of high resistance, of bistable operation, the pneumatic valve is activated while the pedal remains pressed returning to the position of rest when it stops operating.Reference: W3120000311 Representative image for illustrative purposes, the item supplied...

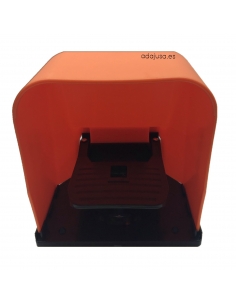

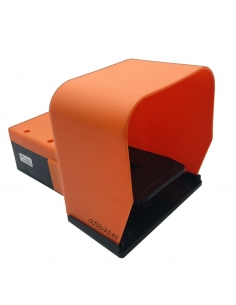

Pneumatic pedal 3/2 4 mm monostable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 4 mm monostable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 4 mm monostable with protection - Metal Work

Metal Work
W3120000321
€59.53 (€48.40 tax excl.)
Pneumatic pedal with 4 mm 3-way thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000321 Representative image for illustrative purposes, the item supplied will correspond to...
Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter M5 bistable with protection - Metal Work

Metal Work
W3120000331
€60.54 (€49.22 tax excl.)
Pneumatic pedal with 3-way M5 diameter thread with protective cover in high-strength plastic material, bistable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000331 Representative image for illustrative purposes, the item supplied will correspond...

16 other products in the same category:

Bistable pneumatic pedal with protection - Metal Work Bistable pneumatic pedal with protection - Metal Work 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 1/4 5/2 bistable with protection - Metal Work

Metal Work
W3120000011
€80.45 (€65.41 tax excl.)
5-way 1/4" threaded pneumatic pedal with protective cover in high-strength plastic material, of bistable operation, the pneumatic valve is activated when the pedal is activated and remains activated until it is activated again. Reference:W3120000011 Representative image for illustrative purposes, the item supplied will correspond to the specifications...

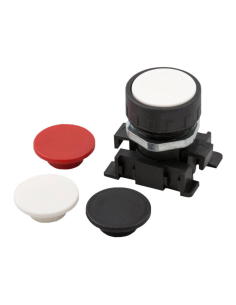

Pneumatic push button black-white-red Valve: 3/2 NC side fittings Ø 4 mm- ADAJUSA Pneumatic push button black-white-red Valve: 3/2 NC side fittings Ø 4 mm- ADAJUSA 2
  • Pack
Pushbuttons and pneumatic actuators

Pneumatic pushbutton black-white-red and Valve: 3/2 NC side fittings Ø 4 mm- Aignep

Aignep
PK-PUL32NCLX
€29.79 (€24.22 tax excl.)
Pushbutton with protection for discs standard colors: red, black and white, and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (pushbutton-valve).   Representative image for illustrative purposes, the item supplied will correspond to the...

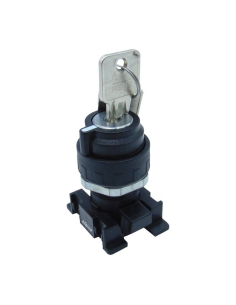

Key selector switch 2 positions pull-out in both positions (0-1) and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUS Key selector switch 2 positions pull-out in both positions (0-1) and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUS 2
  • Pack
Pushbuttons and pneumatic actuators

Key selector switch 2 positions extraction in both positions (0-1) and Valve: 3/2 NC...

Aignep
PK-SELEC32NC2
€46.92 (€38.15 tax excl.)
Key selector 2 positions, key removable in both positions (0-1), and limit switch valve normally closed closed (NC), fittings located on the side for 4 mm OD pipe with built-in adapter for interface (push-button-valve). Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Pneumatic foot pedal with protection cover and safety mechanism 1/4 way 5 bistable Aignep 06V0000004 - PC 1/4 B PI | Ada
Pushbuttons and pneumatic actuators

Pneumatic foot pedal 1/4 5/2 bistable with protection and safety mechanism - Aignep

Aignep
06V0000004
€71.84 (€58.41 tax excl.)
Pneumatic pedal with thread 1/4" of 5 way, with mechanical locking for the actuation and with protection cover, in high resistance plastic material, of operation bistable (with interlocking), the pneumatic valve is activated at the first press and will remain activated even if the foot is removed, it will remain activated until a new actuation with the...
Monostable pneumatic pedal with protection - Metal Work Monostable pneumatic pedal with protection - Metal Work 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 1/4 5/2 monostable with protection - Metal work

Metal Work
W3120000001
€80.45 (€65.41 tax excl.)
Pneumatic pedal with 1/4" 5- way thread with protection cover in high-resistance plastic material, monostable operation, the pneumatic valve is activated while the pedal remains pressed, returning to the rest position when it is stopped. Reference: W3120000001 Representative image for illustrative purposes, the item supplied will correspond to the...

Customers who bought this product also bought:

Toothed V-belt section XPZ Linea Gold XPZ862 MEGADYNE | ADAJUSA
XPZ series toothed trapeze straps

GOLD XPZ 862 LINE Snated Trapecial Strap - MEGADYNE

Megadyne
97RXPZ862GOLD
€11.82 (€9.61 tax excl.)
LINE GOLD snant V-belt type of profile "XPZ" 9.7x8mm,for power transmission in industrial machinery, agricultural machinery and gardening applications. Careful design and manufacture with an EPDM rubber compound that can chemically withstand harsh environments, aging, ozone, UV and heat. Ref: LINE GOLD XPZ 862 Megadyne Part number: 020711140122...

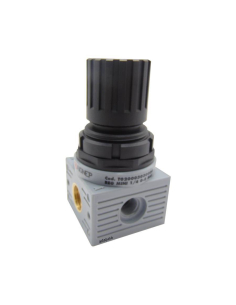

Regulator pneumatic pressure 1/4 T020003030000 Aignep | ADAJUSA : price
