Pneumatic pedal 3/2 diameter M5 bistable with protection - Metal Work

€58.79 Tax included

€47.80 tax excl.

Pneumatic pedal with 3-way M5 diameter thread with protective cover in high-strength plastic material, bistable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000331

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

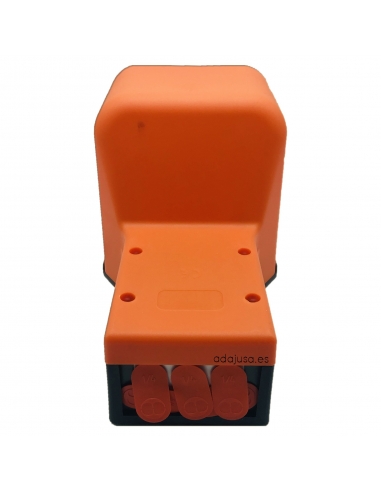

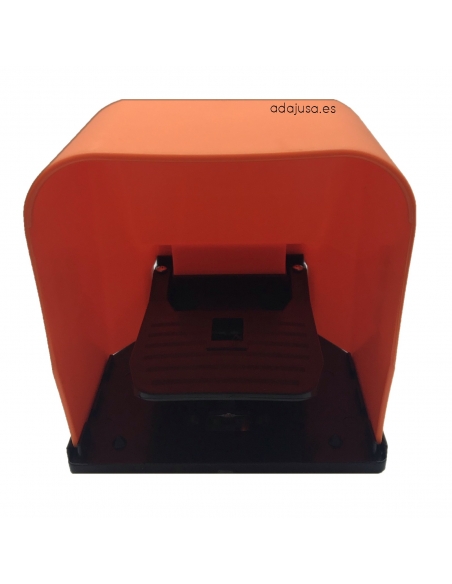

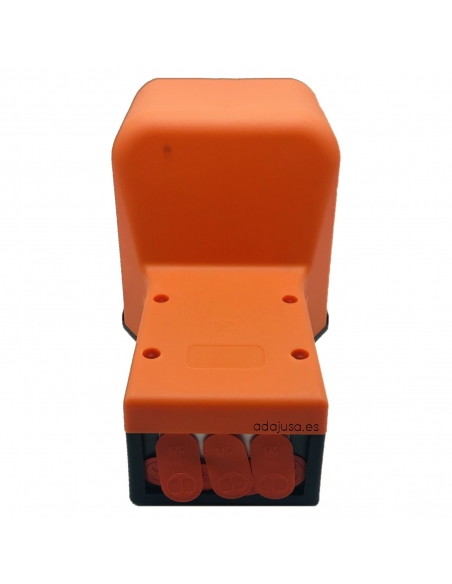

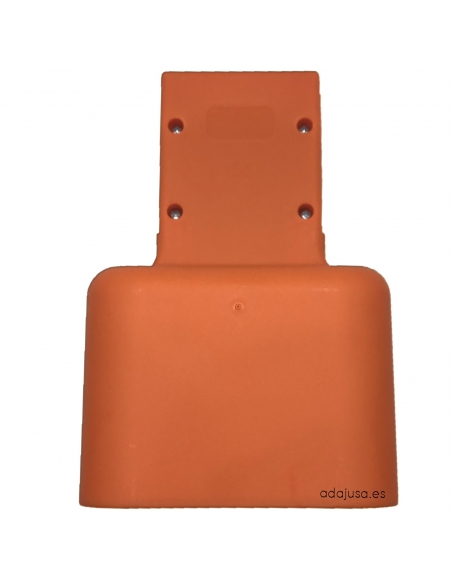

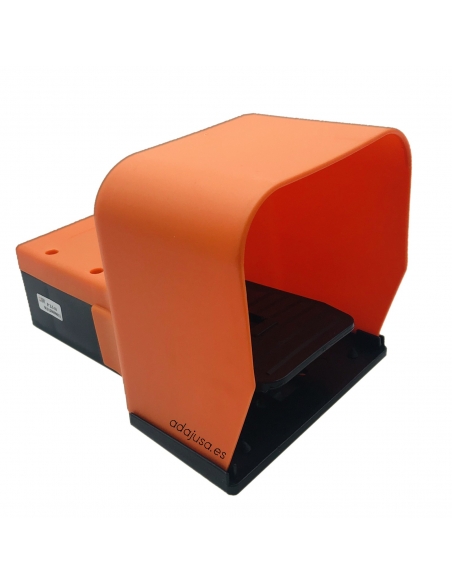

3/2 M5 bistable pneumatic pedal. The pedal is equipped with a protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, of monostable operation, the pneumatic valve is activated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: W3120000331 (PEV 03 PEB P)
  • Valve thread: M5.
  • Fluid: With or without lubrication, if there is lubrication it must be continuous.
  • Typology: 3 ways, 2 bistable positions with protection.
  • Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
  • Nominal diameter: 2.5 mm.
  • Conductance C: 16.5 Nl/min-bar.
  • Critical ratio: 0.03 bar/bar.
  • Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
  • Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Monostable pneumatic pedal with protection - Metal Work Monostable pneumatic pedal with protection - Metal Work 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 M5 monostable with protection - Metal Work

Metal Work
W3120000301
€54.38 (€44.21 tax excl.)
Pneumatic pedal with 3-way M5 thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000301 Representative image for illustrative purposes, the item supplied will correspond to the...
Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work

Metal Work
W3120000311
€62.24 (€50.60 tax excl.)
Pneumatic pedal with thread diameter 4 mm of 3 ways with protective cover in plastic material of high resistance, of bistable operation, the pneumatic valve is activated while the pedal remains pressed returning to the position of rest when it stops operating.Reference: W3120000311 Representative image for illustrative purposes, the item supplied...
Pneumatic pedal 3/2 4 mm monostable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 4 mm monostable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 4 mm monostable with protection - Metal Work

Metal Work
W3120000321
€57.82 (€47.01 tax excl.)
Pneumatic pedal with 4 mm 3-way thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000321 Representative image for illustrative purposes, the item supplied will correspond to...

16 other products in the same category:

Black selector long cam 2... Black selector long cam 2... 2
  • Pack
Pushbuttons and pneumatic actuators

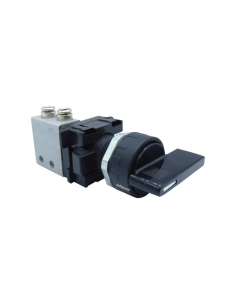

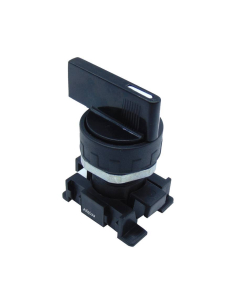

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep
