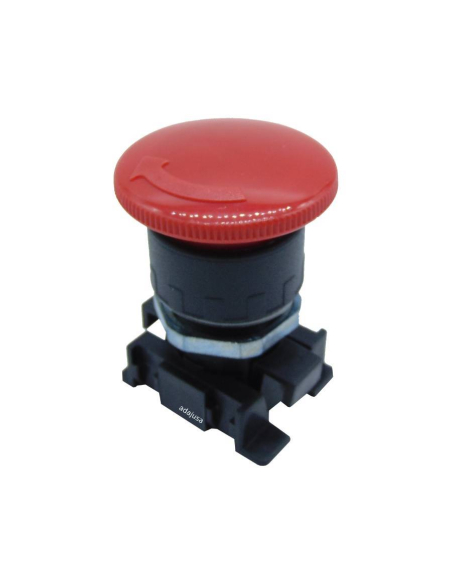

Emergency mushroom-head button with lock Valve: 3/2 NC rear - Metal Work

€47.23 Tax included

€38.40 tax excl.

PK-EMER32NCT

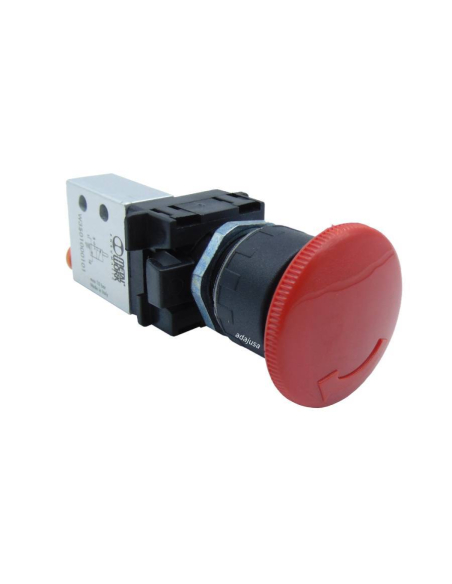

Emergency pushbutton, valve adapter and valve limit switch normally closed with metal front piston, for tube 4mm located at the rear.

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

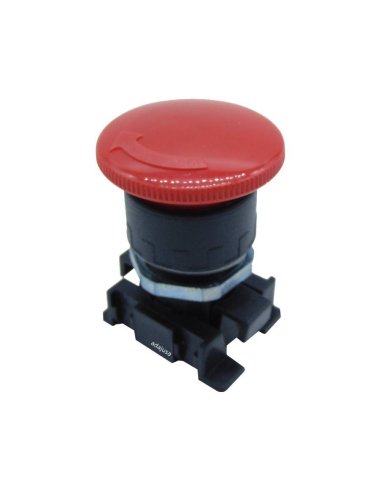

Emergency pushbutton for use with limit switch pushbutton-operated pneumatic valves

limit switch metal emboloding pneumatic frame, with integrated quick-connect fittings for 4mm outer tube. The state of the valve at rest is normally closed, i.e. without pressing there is no presence of air in the exit, the air cannot pass, when it is operated, it lets air pass through and there is pneumatic pressure at the outlet.


Supply includes:

    • Emergency pushbutton

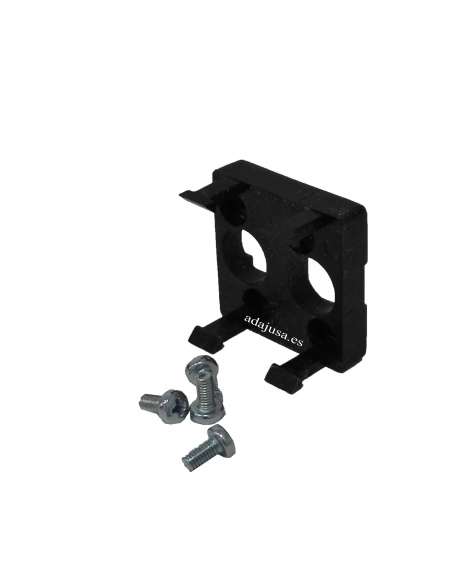

    • adapter
    • nut
    • Valve adapter
    • 4 screws
    • Front limit switch NC valve.

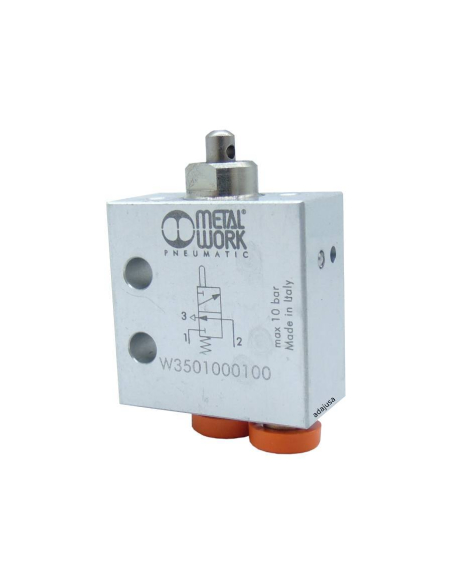

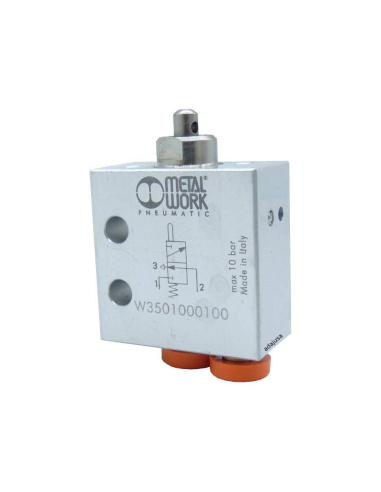

Valve features:

  • Valve type: 3/2 Normally closed (NC).
  • Type of drive of the limit switch: Metal front piston.
  • Manufacturer's Reference: W3501000100 - VME-01 NC D.4
  • Material type: metallic.
  • Fittings: fast for tube 4mm located at the rear
  • Installation: in any position.

notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.

dimensiones final de carrera neumatico piston Nc racores traseros de 4


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Customers who bought this product also bought:

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 10 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G10SOP
€16.10 (€13.09 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 10 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...

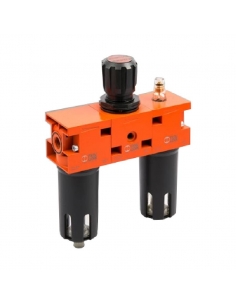

Filter + Regulator + Lubricator New Deal - Metal Work - ADAJUSA
