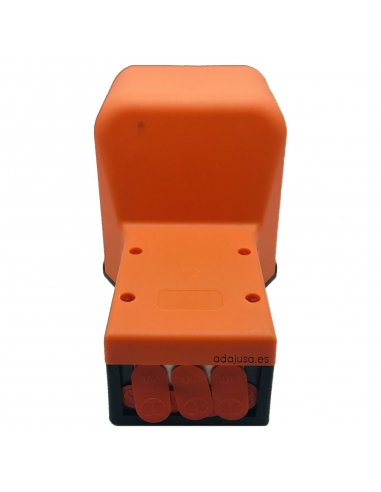

Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA

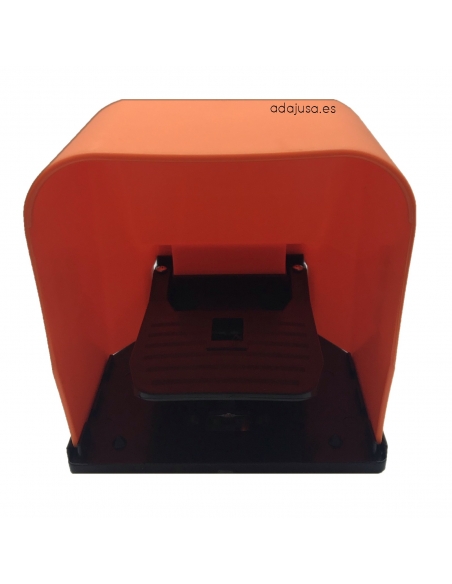

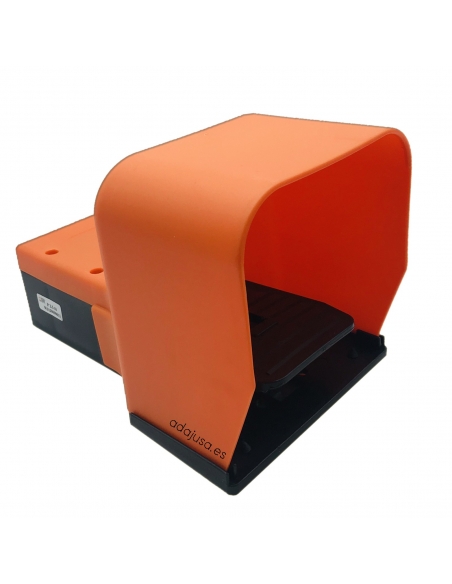

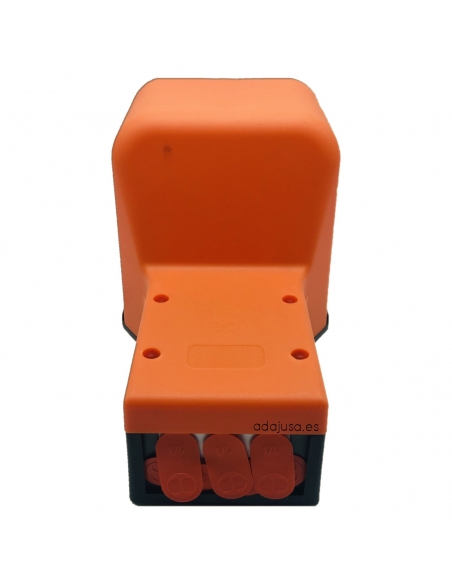

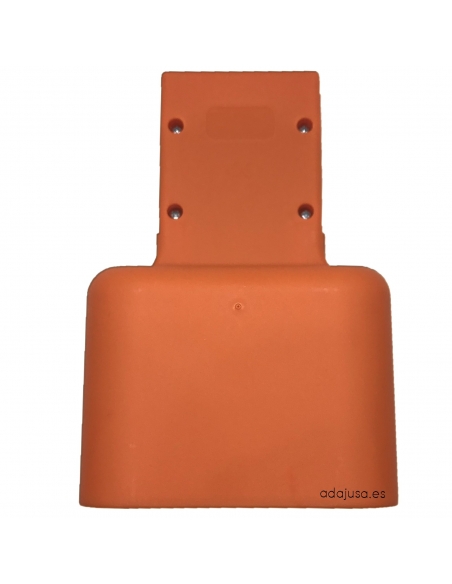

Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work

Name: Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work
Brand: Metal Work
SKU: W3120000311
Price: 61.131 EUR
Availability: PreOrder

€61.13 Tax included

€49.70 tax excl.

Pneumatic pedal with thread diameter 4 mm of 3 ways with protective cover in plastic material of high resistance, of bistable operation, the pneumatic valve is activated while the pedal remains pressed returning to the position of rest when it stops operating.

Reference: W3120000311

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic pedal 3/2 Ø 4 bistable. The pedal is equipped with a protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, of monostable operation, the pneumatic valve is activated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

Manufacturer: Metal Work.
Reference: W3120000301 (PEV F3 PEB PR)
Valve thread: 4 mm.
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 3 ways, 2 bistable positions with protection.
Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
Nominal diameter: 2.5 mm.
Conductance C: 16.5 Nl/min-bar.
Critical ratio: 0.03 bar/bar.
Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Pneumatic pedal 3/2 M5 monostable with protection - Metal Work

Metal Work

W3120000301

€53.41 (€43.42 tax excl.)

Pneumatic pedal with 3-way M5 thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000301 Representative image for illustrative purposes, the item supplied will correspond to the...

Pneumatic pedal 3/2 4 mm monostable with Metal Work protection - ADAJUSA

Pneumatic pedal 3/2 4 mm monostable with Metal Work protection - ADAJUSA 2

Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 4 mm monostable with protection - Metal Work

Metal Work

W3120000321

€56.79 (€46.17 tax excl.)

Pneumatic pedal with 4 mm 3-way thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000321 Representative image for illustrative purposes, the item supplied will correspond to...

Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2

Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter M5 bistable with protection - Metal Work

Metal Work

W3120000331

€57.75 (€46.95 tax excl.)

Pneumatic pedal with 3-way M5 diameter thread with protective cover in high-strength plastic material, bistable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000331 Representative image for illustrative purposes, the item supplied will correspond...

Pushbuttons and pneumatic actuators

Unprotected monostable 3/2 M5 pneumatic pedal - Metal Work

Metal Work

W3120000411

€34.61 (€28.14 tax excl.)

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000411 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 4 mm monostable without protection - Metal Work

Metal Work

W3120000401

€37.96 (€30.86 tax excl.)

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000401 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 4 mm monostable without protection - Metal Work

Metal Work

W3120000401

€37.96 (€30.86 tax excl.)

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000401 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

SLOW Label

Adajusa

992PULETI0019

€0.62 (€0.50 tax excl.)

Label 13x27mm inscription"SLOW". Ref: 992PULETI0019

Pack

Pushbuttons and pneumatic actuators

Key selector switch 2 positions extraction position 0 and Valve: 3/2 NC side fittings Ø...

Aignep

PK-SELEC32NC1

€44.13 (€35.88 tax excl.)

Key selector 2 positions, removable key in position 0, and limit switch valve normally closed closed (NC), fittings located on the side for 4 mm outer diameter tube with built-in adapter for the interface (push-button-valve). Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Pushbuttons and pneumatic actuators

Black long cam selector with 3 positions and strut valve: 3/2 NC side fittings Ø 4 mm -...

Aignep

PK-SELLA32NC3

€37.16 (€30.21 tax excl.)

Pneumatic selector long cam 3 positions (2-0-1), and limit switch valve normally closed closed (NC), fittings located on the side for tube OD 4 mm Representative picture for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Pneumatic valves

Pneumatic Selector Valve: 3/2 NC Side - Metal Work

Metal Work

PK-SELEC32NCL

€40.66 (€33.06 tax excl.)

Full neumatic selector, black color. with normally closed valve (NC) and integrated fittings for tube diameter 4, side outlet. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Stop and emergency pushbuttons

Emergency cover diameter 60

Generico-DE

AD2006500

€0.84 (€0.68 tax excl.)

Cover stop emergency diameter 60mm.Reference: AD2006500

View

Pushbuttons and pneumatic actuators

Actuator with protection for pneumatic valve with three colored discs- Aignep

Aignep

04V0100001

€10.16 (€8.26 tax excl.)

Actuator with protection for discs standard colors: red, black and white.Series: 04VReference: 04V0100001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

Key selector 2 positions - Metal Work

Metal Work

W0351000016

€32.58 (€26.49 tax excl.)

2-position key selector, 2-position removable wrenchReference: W0351000016 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

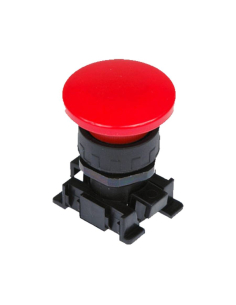

Red mushroom-head button - Metal Work

Metal Work

W0351000013

€15.78 (€12.83 tax excl.)

Pushbutton mushroom-head pneumatic red color, diameter 40 mm. Reference: W0351000013 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Pushbuttons and pneumatic actuators

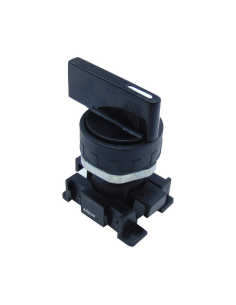

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep

Aignep

PK-SELLA32NC1

€36.80 (€29.92 tax excl.)

Pneumatic selector long cam 2 positions (0-1), and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push-button-valve). Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Pushbuttons and pneumatic actuators

Black selector with 2 short cam positions with spring return and Valve: 3/2 NC side...

Aignep

PK-SELCO32NC2

€34.07 (€27.70 tax excl.)

Pneumatic selector short cam 2 positions (0-1) with spring return, and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push-button-valve). Representative image for illustrative purposes, the article supplied will correspond to the specifications...

Green pneumatic pushbutton- Mindman adajusa

Pushbuttons and pneumatic actuators

Green pneumatic actuador - Mindman

Mindman

PULSADORPP22V

€6.81 (€5.54 tax excl.)

Neumatic actuador, green color, drill diameter 22.5mm. Reference: PUSHBUTTONPP22VRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

2-position key selector pull-out in both positions (0-1) - Aignep

Aignep

04V0300002

€27.17 (€22.09 tax excl.)

Key selector 2 positions, key removable in both positions (0-1)Series: 04VPart number: 04V0300002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic selector pushbutton - Mindman adajusa

Pushbuttons and pneumatic actuators

Pneumatic selector - Mindman

Mindman

PULSADORTB22

€9.27 (€7.54 tax excl.)

Pneumatic selector pushbutton 2 positions, black color, drill diameter 22.5mm. Reference: PUSH BUTTONTB22Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

FAST-SLOW label

Adajusa

992PULETI0020

€0.62 (€0.50 tax excl.)

Label 13x27mm inscription"FAST-SLOW". Ref: 992PULETI0020

Pneumatic switch lever 1/8-3/2 NC - Mindman - ADAJUSA

Pneumatic switch lever 1/8-3/2 NC - Mindman - ADAJUSA 2

Pushbuttons and pneumatic actuators

Pneumatic switch lever 1/8-3/2 NC Return - Mindman

Mindman

EPA101A

€20.97 (€17.05 tax excl.)

Pneumaticswitch, mechanically operated pneumatic valve, 1/8 3-way normally closed thread (NC). The limit switch is operated by manual lever with return.Reference: EPA-101ARepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Fittings swivel elbow

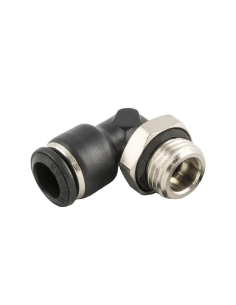

Male cylindrical adjustable elbow fitting 3/8 tube 8mm Series 55000 - Aignep
