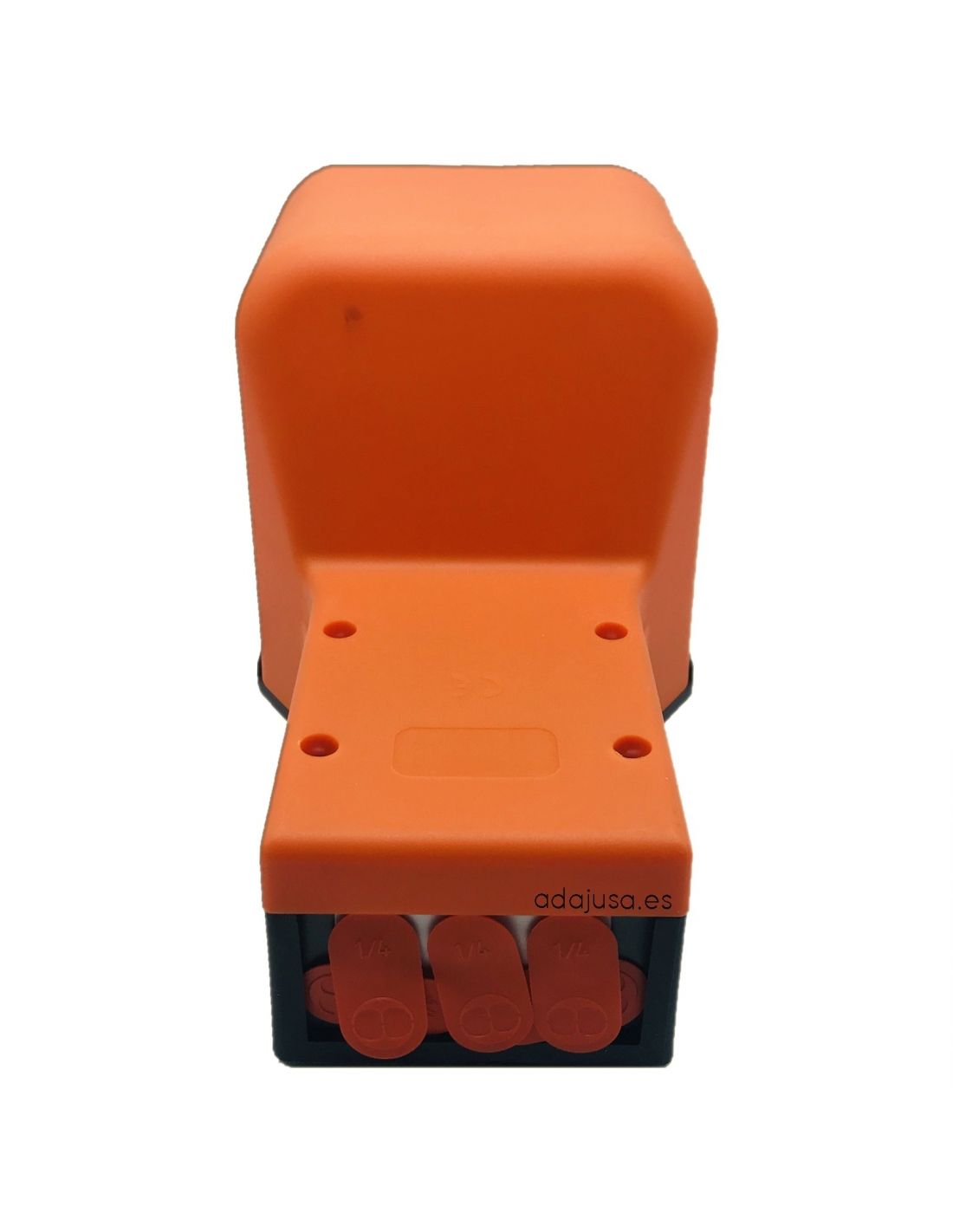

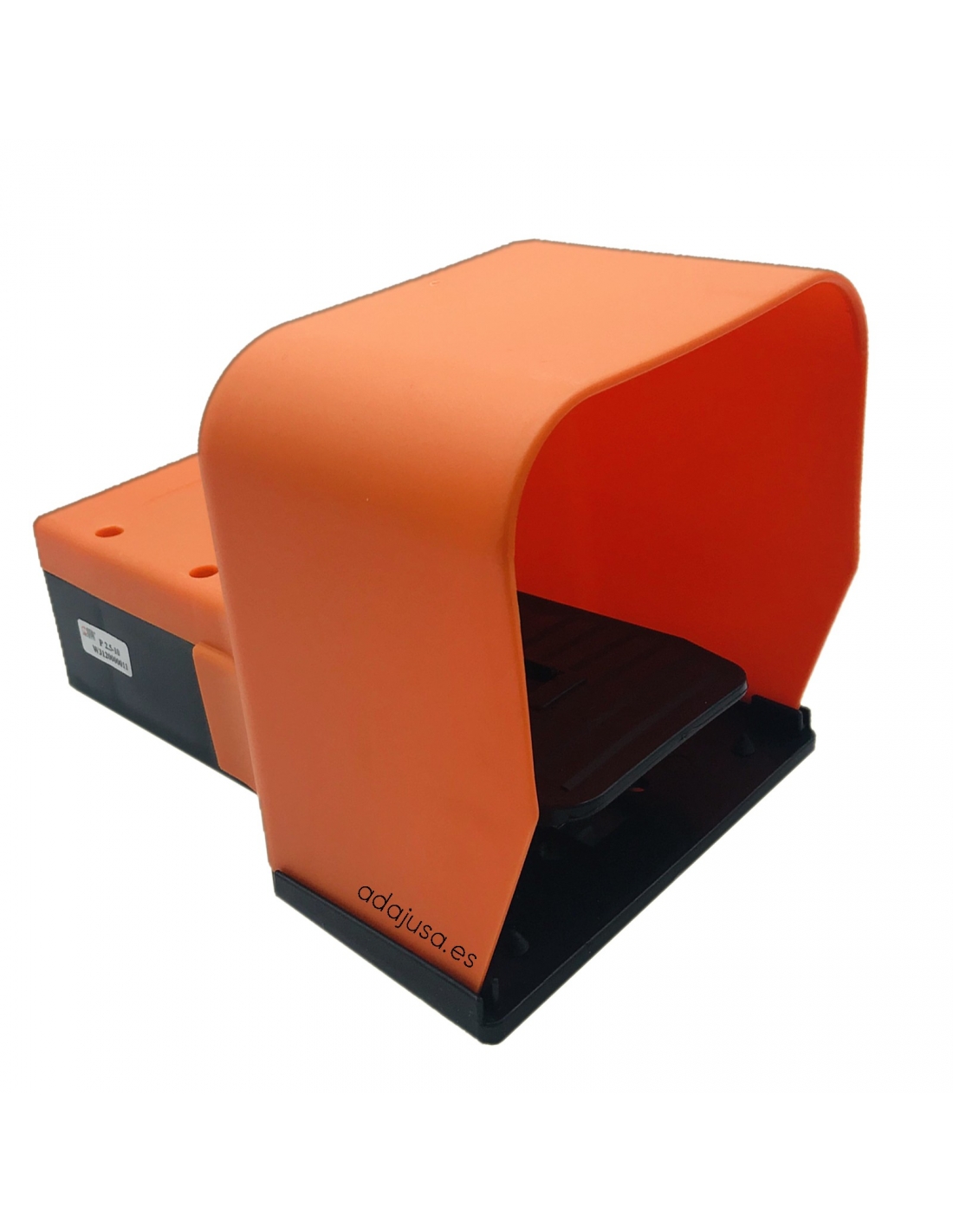

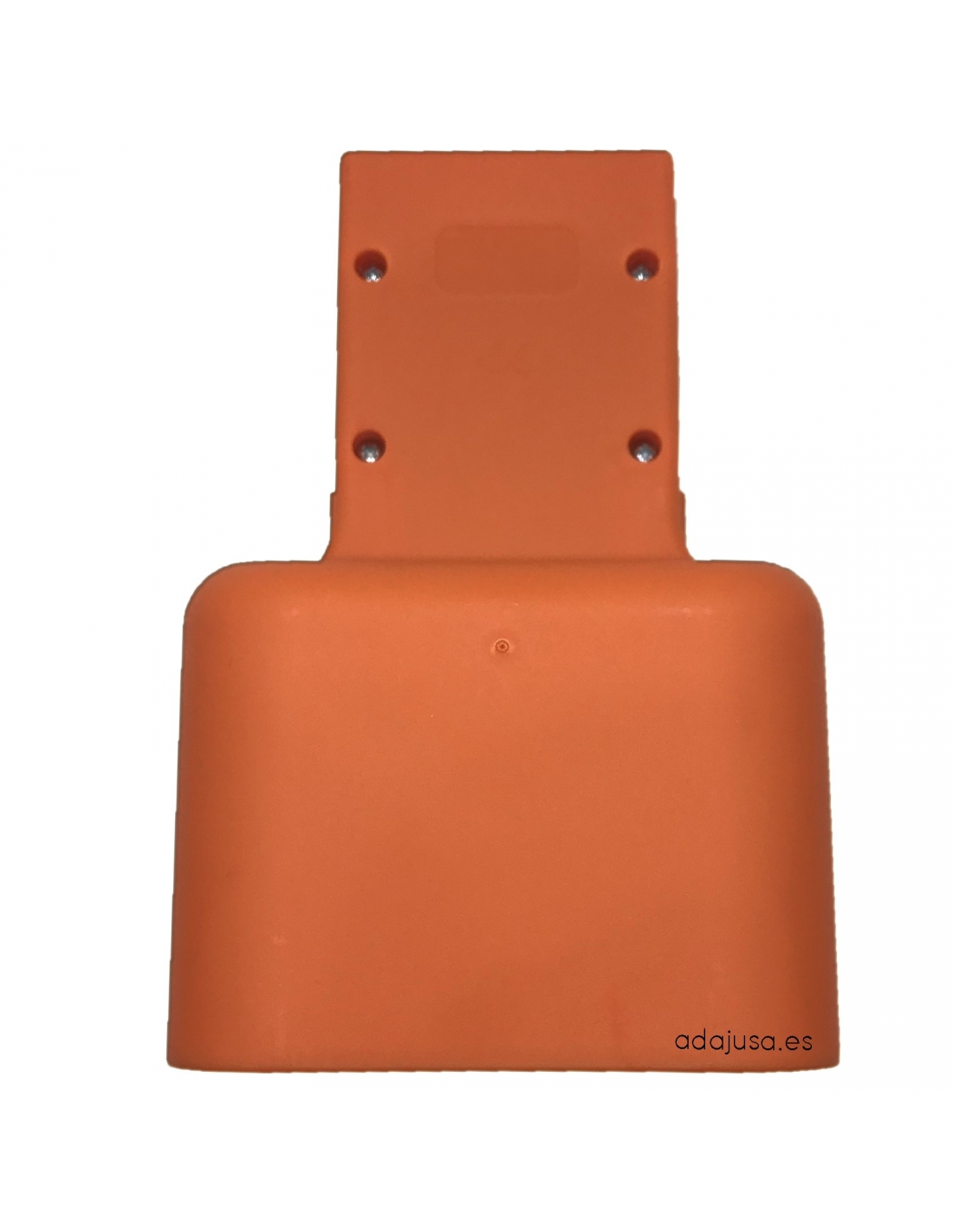

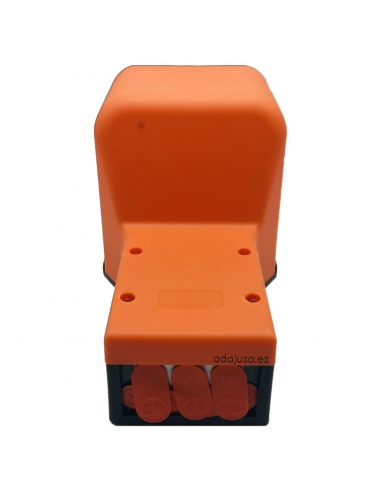

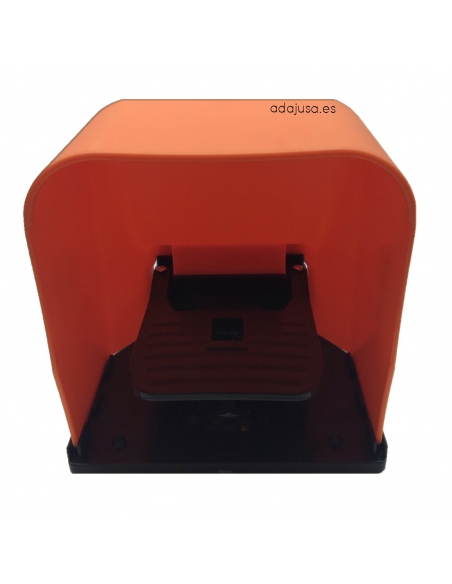

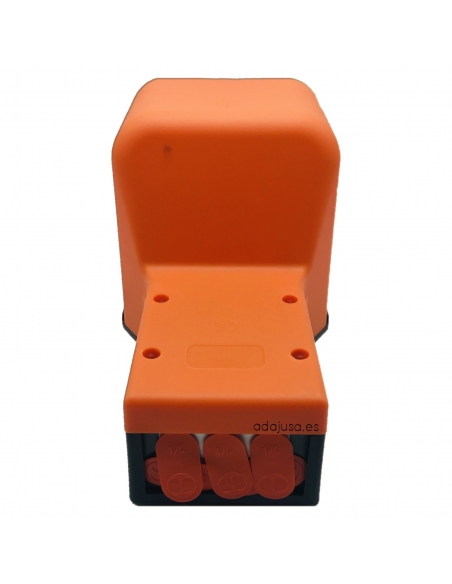

Pneumatic pedal 1/4 5/2 bistable with protection - Metal Work

€80.45 Tax included

65.41 tax excl.

W3120000011

5-way 1/4" threaded pneumatic pedal with protective cover in high-strength plastic material, of bistable operation, the pneumatic valve is activated when the pedal is activated and remains activated until it is activated again.

Reference:W3120000011
Esquema neumático pedal biestable

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic pedal with 1/4" 5-way monostable G thread. The pedal is equipped with protective cover to prevent accidental actuation, the pedal body is made of high strength plastic material, in orange and the pneumatic valve in aluminum, bistable operation, the pneumatic valve is activated when the pedal is operated and remains in this position until it re-operates, then the valve returns to the resting position.

Technical details:

  • Manufacturer: Metal Work.
  • Reference: W3120000011.
  • Valve thread: 1/4".
  • Fluid: With or without lubrication, if there is lubrication it must be continuous.
  • Typology: 5 ways, 2 bistable positions with protection.
  • Working pressure: 2.5..10 bar. 0.25..1 MPa. 36..145 psi.
  • Nominal diameter: 7.5mm.
  • Conductance C: 264.26 Nl/min-bar.
  • Critical ratio: 0.32 bar/bar.
  • Flow rate at 6.3 bar Δ P 0.5bar: 660 Nl/min.
  • Flow rate at 6.3 bar Δ P 1 bar: 840 Nl/min.

Dimensiones pedal neumático Metal Work

Material for professional use, install respecting the regulations in force in the place of installation.
