Pneumatic pedal 1/4 5/2 monostable with locking and protection Metal Work - ADAJUSA

Single-stable 1/4 5/2 pneumatic pedal with locking and protection - Metal Work

Name: Single-stable 1/4 5/2 pneumatic pedal with locking and protection - Metal Work
Brand: Metal Work
SKU: W3120000021
Price: 87.9204 EUR
Availability: PreOrder

€87.92 Tax included

€71.48 tax excl.

Pneumatic pedal with 1/4" 5-way thread with mechanical lock and with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000021

Logotipo Metal Work

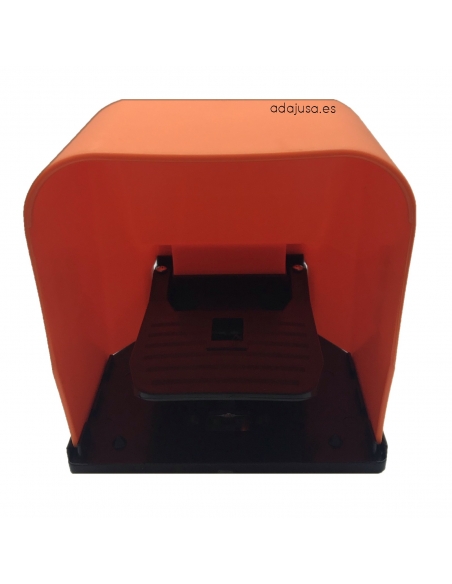

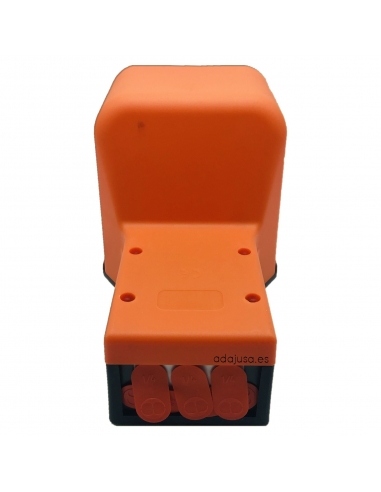

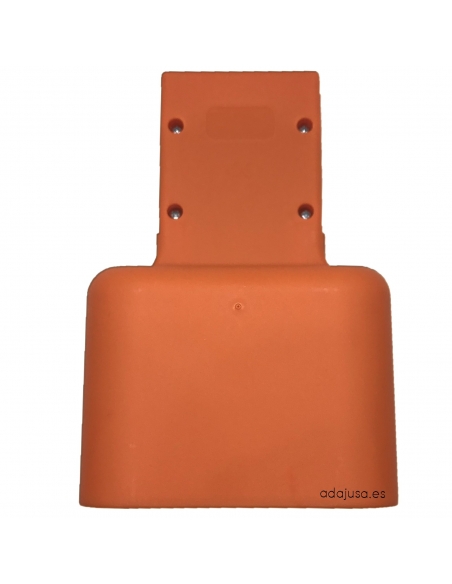

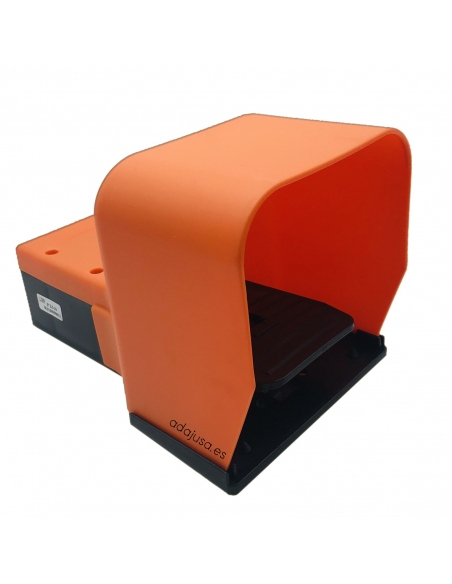

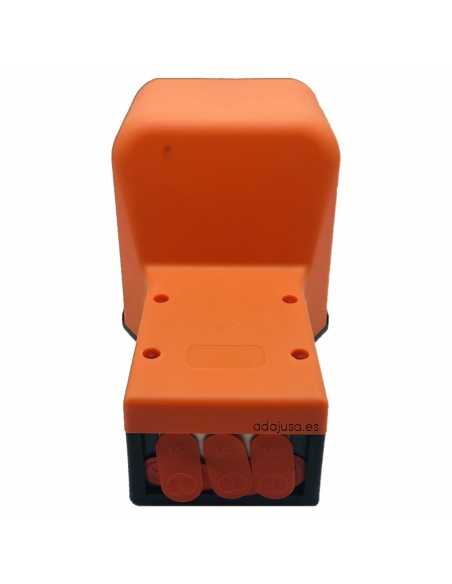

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic pedal with G 1/4" 5-way monostable thread. The pedal is equipped with mechanical lock with protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating. The foot must first push a locking lever, and then it can lower the pedal.

Specifications:

Manufacturer: Metal Work.
Reference: W3120000021 (PEV 35 PEC PR)
Valve thread: 1/4".
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 5 ways, 2 monostable positions with protection.
Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
Nominal diameter: 7.5mm.
Conductance C: 264.26 Nl/min-bar.
Critical ratio: 0.32 bar/bar.
Flow rate at 6.3 bar ΔP 0.5bar: 660 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar: 840 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
