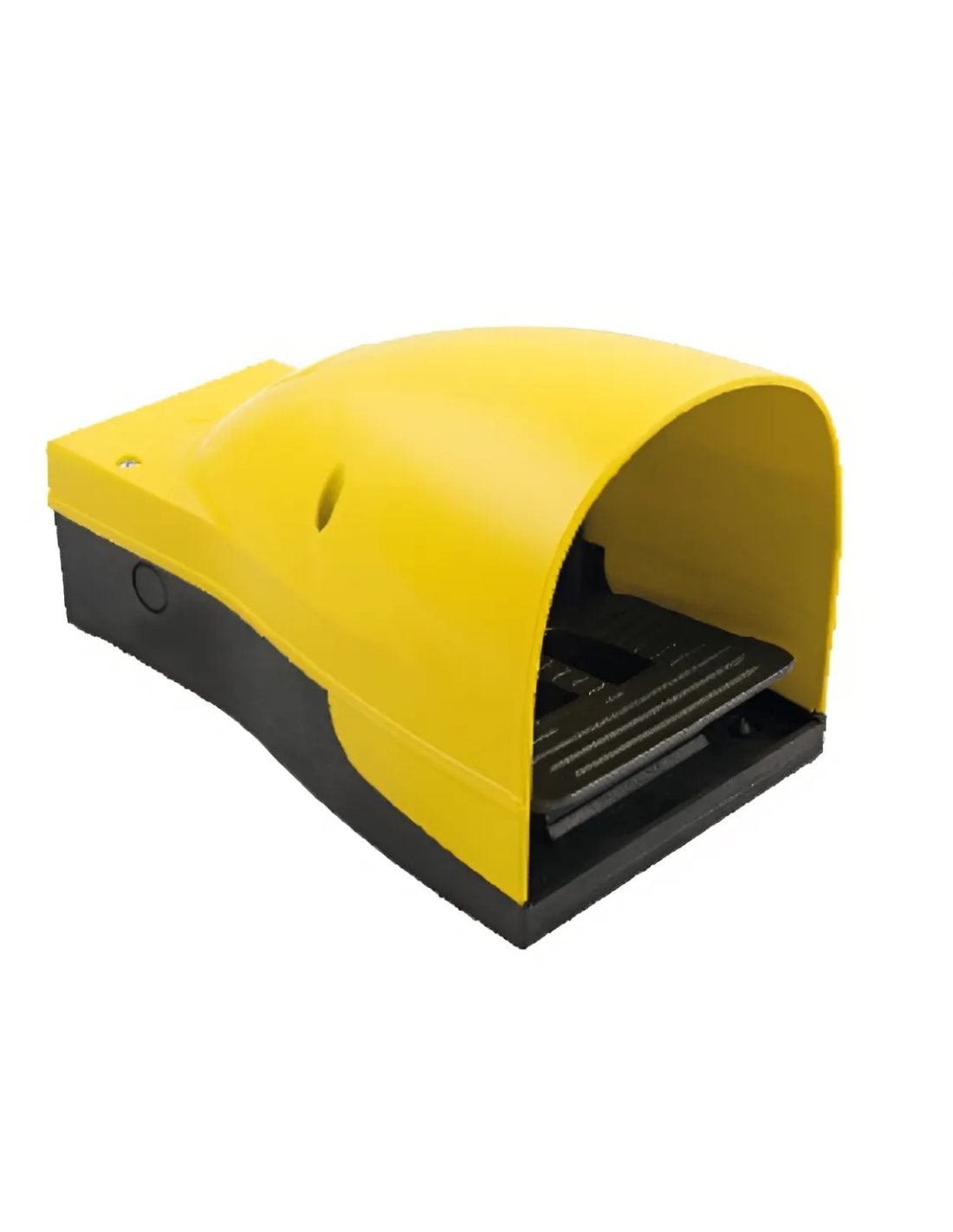

Pneumatic foot pedal 1/4 5/2 bistable with protection - Aignep

€66.83 Tax included

54.33 tax excl.

06V0000003

Pneumatic pedal with thread 1/4" of 5 way with mechanical locking for the actuation and with protection cover, in high resistance plastic material, of operation bistable (with interlocking), the pneumatic valve is actuated at the first press and will remain activated even if the foot is removed, it will remain activated until a new actuation with the foot.

Part number: 06V0000002

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic pedal with G 1/4" thread of 5 way bistable . The pedal is equipped with protection cover to avoid accidental operation. The body of the pedal is made of high resistance plastic material, in yellow color and the pneumatic valve in aluminum, of operation is bistable, with interlocking, the pneumatic valve is activated at the first press and will remain activated even if the foot is removed, it will remain activated until a new actuation with the foot.

The protection cover prevents the pedal from being activated unintentionally or by objects falling on it. This pedal is especially indicated for the control of machinery and equipment when the operator needs to have his hands free.



Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 06V0000002 (previous reference PC 1/4 B)
  • Operation: bistable
  • Valve thread: 1/4"
  • Fluid: With or without lubrication, if there is lubrication it must be continuous
  • Type: 5 way, 2 positions monostable with protection
  • Mechanical locking: Yes, prevents unintentional actuation
  • Working pressure: 2..10 bar. 0,2..1 MPa
  • Nominal diameter: 7.5mm
  • Fluid type: Filtered air 50um, with or without lubrication
  • Maximum working temperature: +60ºC






Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
