Emergency stop button with locking and valve: 3/2 NC side fittings Ø 4 mm- Aignep

€44.11 Tax included

35.86 tax excl.

PK-EMER32NCLX

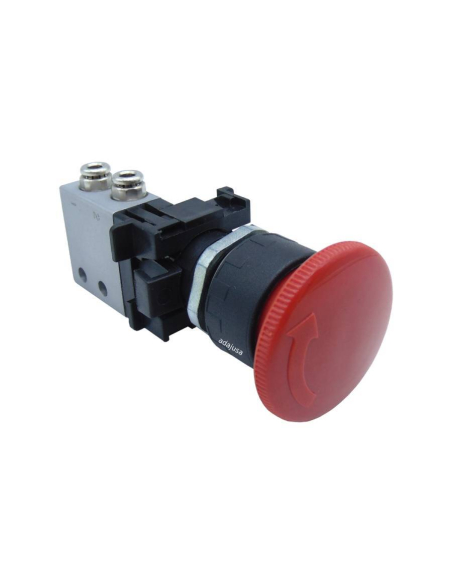

Pneumatic emergency stop push button 40 mm diameter with adapter for valve and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push button-valve).

esquemaNCmicro Logotipo AignepNORMATIVAMICROVALVULA
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Emergency pushbutton for use with pneumatic limit switch valves with pushbutton actuation

Limit switch pneumatic actuated by metal strut, with integrated quick-connect fittings on the side for 4mm external diameter pipe. When the limit switch valve is at rest it is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

    • Push button body
    • Valve adapter (supplied with the pushbutton)
    • NC limit switch valve with fittings on the side Ø 4 mm and adapter integrated in the valve.

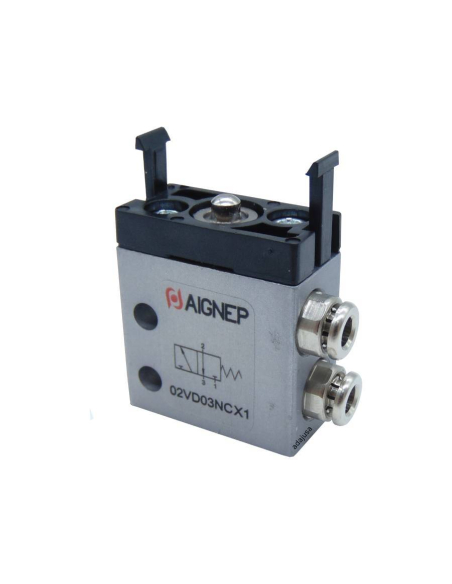

Valve characteristics:


  • Manufacturer: Aignep
  • Valve type: 3/2 Normally closed closed (NC).
  • Type of limit switch actuation: metal strut.
  • Manufacturer's part number: 02VD03NCX1
  • Valve Body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter M4 side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Built-in adapter for interface (push-button-valve).
  • Installation: in any position.
With the valve adapter up to two valves can be installed at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to add to the pushbutton



dimensionesmicrovalvula

setamonoestableaxial


Material for professional use, install in compliance with the regulations in force at the place of installation.
