Green pneumatic pushbutton with valve - Mindman

€36.06 Tax included

€29.32 tax excl.

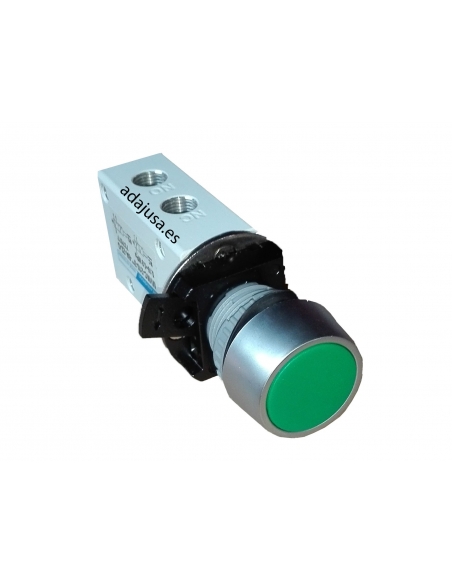

Full pneumatic pushbutton, green color, hole diameter 22.5mm. with 1/8 3-way threaded valve. The pushbutton can be used as normally open (NA) or closed (NC).

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Full pneumatic pushbutton in green, drill diameter 22.5mm, Valve with 1/8 thread in 3 ways, which can be used as a closed valve (NC), when it is not pressed there is no pressure at the outlet and the outlet is communicated with the exhaust, or open valve (NA), when it is not pressed there is pressure at the outlet, when pressed, the air passage to the outlet is interrupted and it is communicated with the exhaust.

The push-button assembly consists of the following elements:

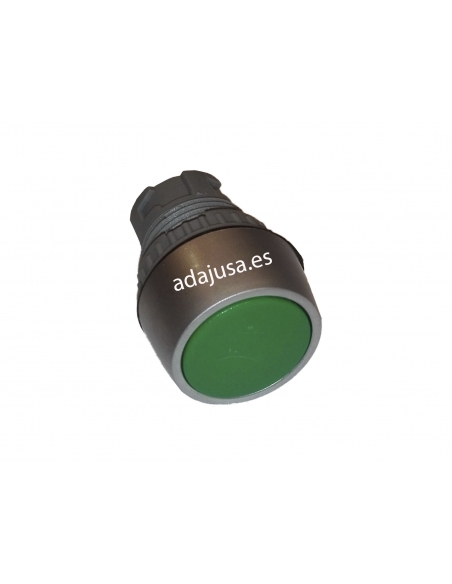

  • - Push-button head with adapter,

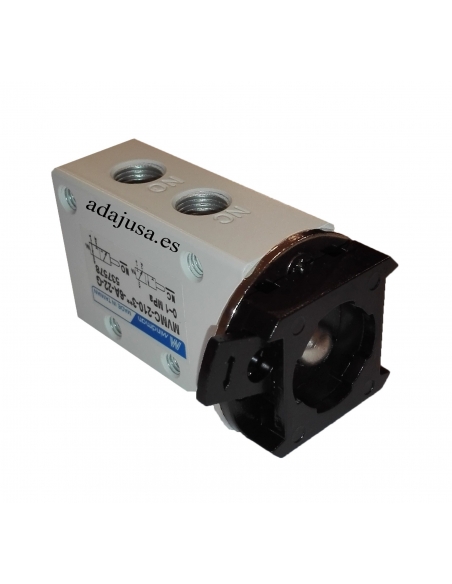

  • - Valve 1/8 3 Ways.

Technical details:

  • - Manufacturer: Mindman.
  • - Valve type: 1/8-3/2 Monostable.
  • - Thread type: G 1/8".
  • - Drive type: Green pushbutton.
  • - Number of tracks: 3.
  • - Positions: 2.
  • - Fluid type: Air under pressure, with or without lubrication.
  • - Working pressure: 0÷10 Kgr/cm2.
  • - Maximum pressure: 10 Kgr/cm2.
  • - Effective pitch diameter: 19 mm2.
  • - Working temperature: -5 to 60oC.
  • - Material: Alumio and steel.

Pulsador neumático de 1/8 3 vías mindman dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
