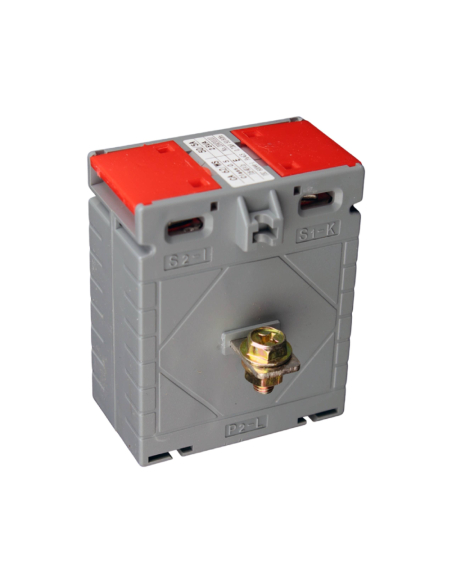

Current transformer 30/5A AVBS series
Current transformer 30/5A AVBS series

Current transformer 30/5A AVBS series

€18.88 Tax included

€15.35 tax excl.

Current transformer for use with measurement and control instruments. Encapsulated transformer for mounting on plate or frame . Accuracy class 0.5. Current transformation ratio 30/5A.


Reference: AVBS-30


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Current transformer, with 30/5A ratio, for use with measurement and control elements. Supplied with mounting accessories.

The usual application is for measurement and control instruments, providing a transformation ratio of 30/5A, that is, when a current of 30A flows through the central conductor, 5A will flow through its secondary.

This current transformer is not suitable for safety applications.




Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: AVBS-30
  • Ratio: 30/5A
  • Accuracy class: 0.5
  • Secondary power: 2.5VA
  • Nominal voltage: 660Vac
  • Nominal insulation voltage (Ui): 720V
  • Nominal thermal current (Ith): 50xIn
  • Nominal dynamic current (Idin): 2.5xIth
  • Safety factor: FS 5
  • Ambient temperature: -5ºC to 45ºC
  • Weight: 370g
  • Use: indoor
  • Standard: EN 61010






Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Control and protection...
Electronic control relays

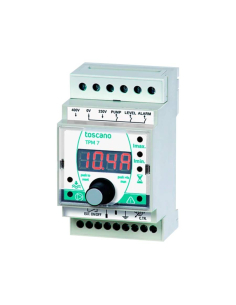

Control and protection relay TPM7-PUMP for motors and pumps 0.6 to 40A - Toscano

Toscano
TPM7-PUMP
€166.64 (€135.48 tax excl.)
Digital control and protection equipment for single-phase and three-phase submersed or surface motors and pumps. Direct 12A output for single-phase pump and up to 40A in single/three-phase with use of external contactor. Module for ECO-PUMP from Toscano.Protections against overload, underload, phase failure, excessive starting frequency and anti-blocking....

16 other products in the same category:

2x30V, 5A PROMAX/ADAJUSA power supply 2x30V, 5A PROMAX/ADAJUSA power supply 2
Material on request
Measuring instruments

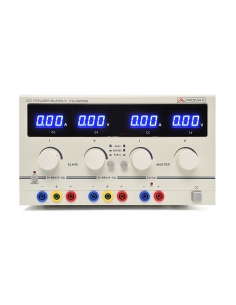

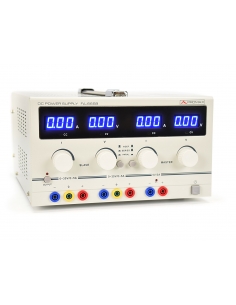

Programmable Dual Laboratory Source 2x30V, 5A (Auxiliary 5V, 3A) FA-853B - PROMAX
