Digital multimeter HK36A CAT III 500V | ADAJUSA | price

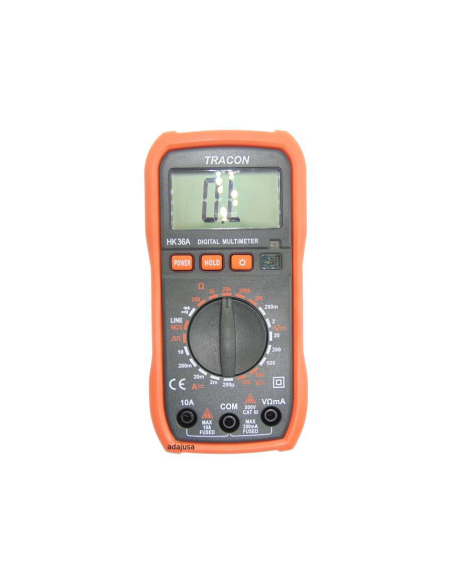

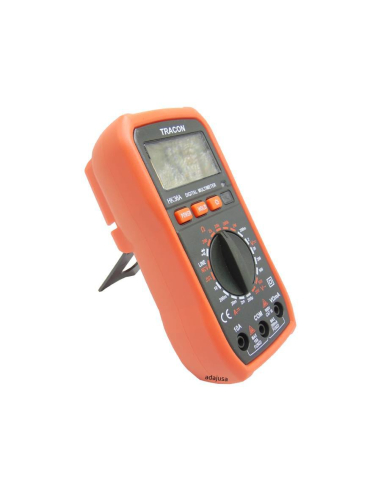

Digital multimeter HK36A CAT III 500V

Name: Digital multimeter HK36A CAT III 500V
Brand: TRACON
SKU: HK36A
Price: 20.69 EUR
Availability: InStock

€20.69 Tax included

16.82 tax excl.

HK36A

Digital multimeter CAT III 500V, with backlit display. Measurement of DC and AC voltage, DC current, resistance, diode and continuity test, non-contact voltage detection (NVC) and pulse generator. Ideal for use in laboratories, home and other basic applications.

Part No.: HK36A

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown .

No queries yet, leave the first!

Privacy

Shipments

Returns

Digital multimeter CAT III 500V, with backlit display. Measurement of DC and AC voltage, DC current, resistance, diode and continuity test, non-contact voltage detection (NVC) and pulse generator.

Manufacturer/Supplier: Tracon
Part number: HK36A

Technical specifications:

DC voltage: 200mV, 2V, 20V, 200V, 500V
AC voltage: 200V, 500V
DC Current: 200µA, 2mA, 20mA, 200mA, 10A
Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 20MΩ
Diodes: 2.5V / 1mA
Pulse generation: 5V / 50HZ / 560kΩ
Continuity
Non-contact voltage detection (NVC)

Other functions and features:

3.5 digit LCD display
Backlit display
Measurement range selection: Manual
HOLD function (data hold)
Low battery indicator
Auto power off
Operating temperature: 0 ～ 40°C
Battery: 9V, 6F22 (included)
Degree of protection: IP00
Dimensions: 150 × 75 × 50 mm
Weight: 270gr (including battery)

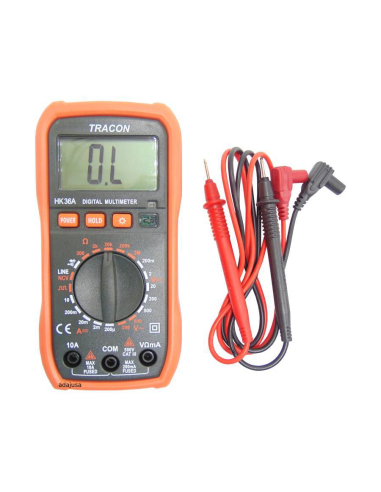

Accessories: Test leads, 9V battery
Standards: EN 61010

HK36A EN Manual

Instruction manual HK36A EN

Download (132.77KB)

HK36A Manual

HK36A Instruction Manual

Download (5.42MB)
