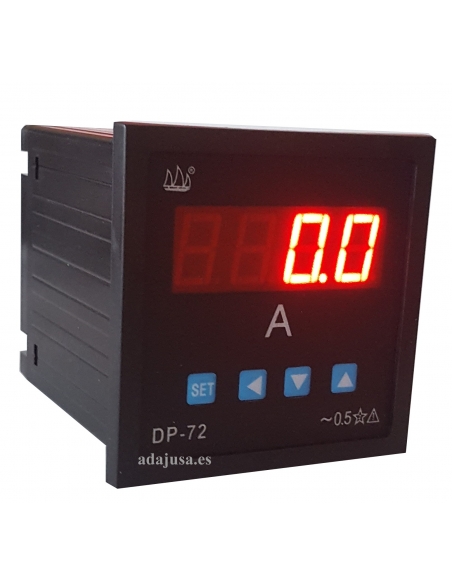

Digital Ammeter 72x72 DP-72A

€39.83 Tax included

32.38 tax excl.

DP-72A

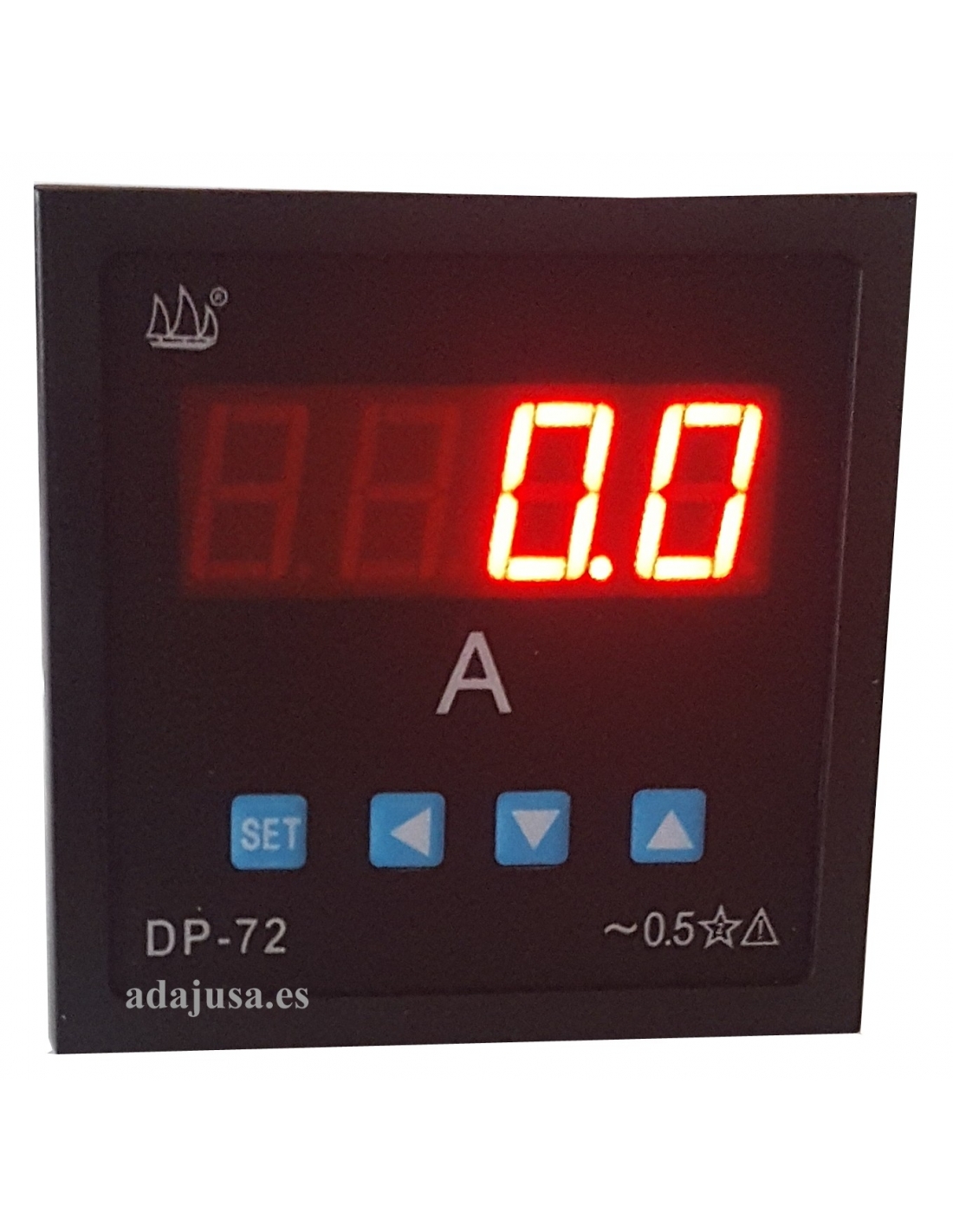

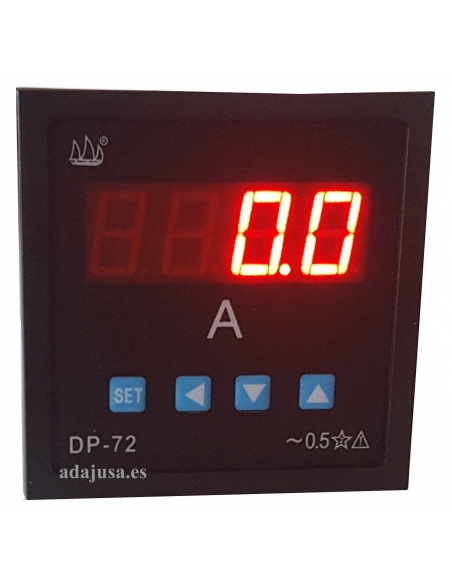

72x72mm panel mount digital ammeter for alternating current for panel mounting, large LED display for easy reading. Easy parameterization from the front keypad.

Direct measurement between 0 and 5A. Expandable by using current transformers.

Ref: DP-72A

electrical symbol ammeter

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Alternating current measuring instrument (Ammeter), for panel mounting. With large, red illuminated display.

Configurable directly from the front keys.

The instrument can directly measure currents between 0 and 5A and higher using a current transformer. The full scale can be adjusted directly from the keys located on the front.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Ref: DP-72A
  • Type of measurement: Alternating current intensity.
  • Direct measurement: 0 ÷ 5 A.
  • Indirect measurement (through current transformers): xA/5A; xA/1A.
  • Supply voltage: 230Vac ± 10%, 50/60 Hz.
  • Consumption:
  • Reading: Using red LED display:
  • number of digits: 4 (9999).
  • Measurement type: Class 0.5.
  • Accuracy: ±0.5% ±2 digits.
  • Dielectric strength: Insulation voltage: 1.5kV ac between measurement terminal and power supply.
  • Insulation resistance: ≥ 100MΩ. (500Vdc).
  • Working temperature: -10ºC ÷ 50ºC.
  • Storage temperature: -20ºC ÷ 70ºC.
  • Humidity rating: 5% ÷ 80% RH non-condensing.

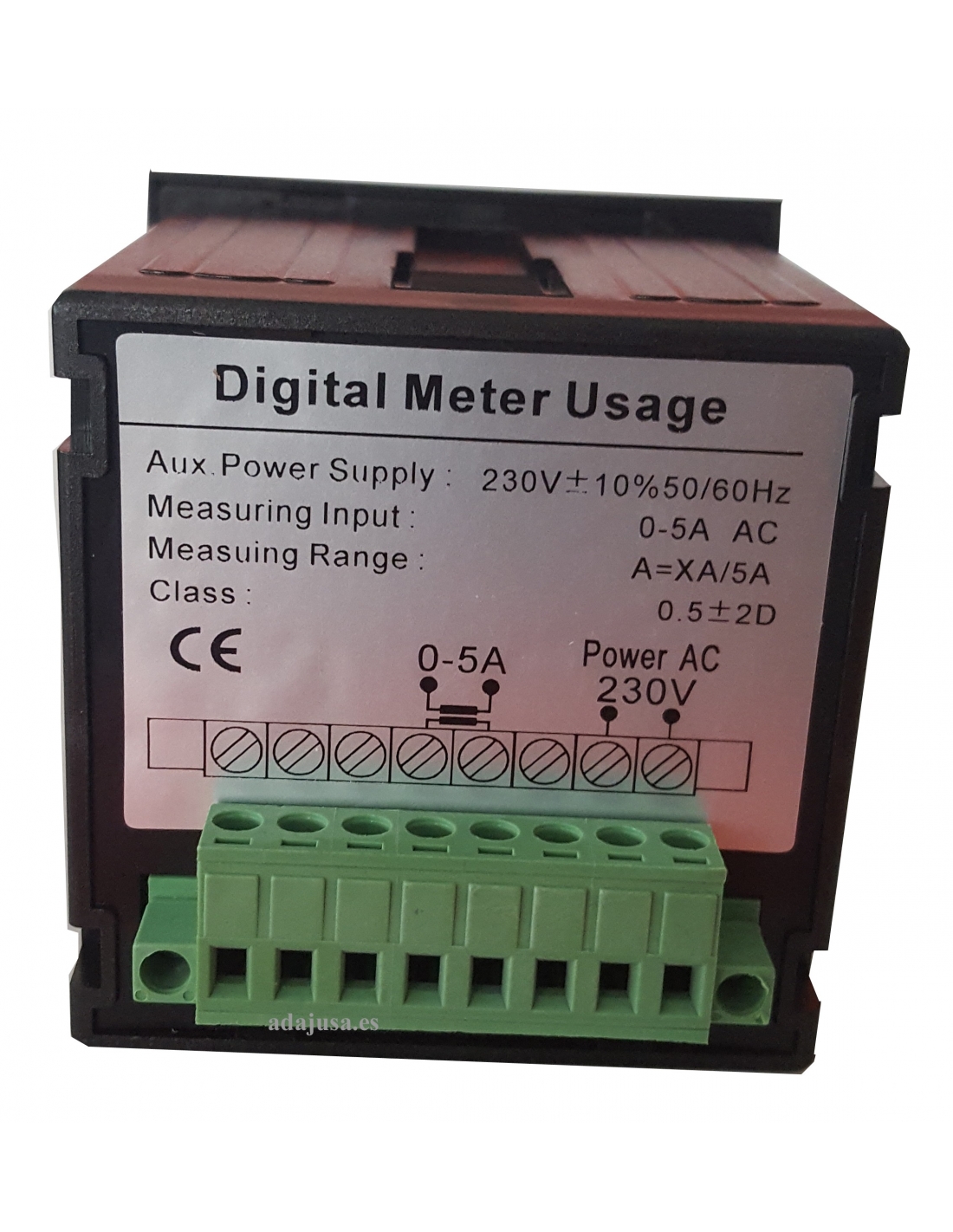

  • Connection type: screw connector.
  • Dimensions: 72x72x90mm.



Dimensions:

Dimensions of digital instruments DP-72



Typical installation with or without current transformer.

Electrical installation ammeters

Typical intensity transformation relationships (most common):

  • Measurement up to 50A. 50/5 current transformer.
  • Measurement up to 100A. Current transformer 100/5.
  • Measurement up to 200A. Current transformer 200/5.
  • Measurement up to 400A. Current transformer 400/5.
  • Measurement up to 600A. Current transformer 600/5.
  • Measurement up to 1000A. Current transformer 1000/5.
  • Measurement up to 2000A. Current transformer 2000/5.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.

Questions

Question
Boas. Estou interessado em tres amperímetros 72×72dp 72A. Este e indicado para testar motores ? Qual o preço do transformador de 50x5 ou 50x1 ? Qual a diferença entre estes dois tipos? Aguardo resposta.
Answer

Buenas tardes,

Si son adecuados para la aplicación, para motores trifasicos, tendrá que instalar 3, uno por cada fase. Para motores monofásicos es suficiente 1.

Con relación a la pregunta sobre los transformadores de intesndiad, es la relación de transformación, el amperimetro admite las dos x/5 o x/1, pero nosostros solo disponemos de relación x/5.

Le adjunto enlace a nuestra pagina web donde puede ver los modelos diponibles y los precios.

https://adajusa.pt/transformadores-de-intensidad/

Saludos

Nelson on 09/30/2018 23:47:20
