Voltmeter 0-450Vac 72x72

€13.97 Tax included

11.36 tax excl.

ACVM72-450

Analog voltmeter with measuring range 0-450 V in alternating voltage. Transpanel mounting of 72x72mm. It allows to visualize in a very fast and visual way the value of a voltage.




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Analog voltmeter for direct measurement of alternating voltage in a measurement range from 0 to 450 V, panel with logarithmic scale. The voltmeter is prepared for 72x72mm transpanel mounting.


Manufactured in ABS case, easy and simple installation. It has an overload factor of long duration and momentary.

It has zero adjustment by means of a regulator located on the front of the measuring instrument. The measuring scale is engraved in black on white painted aluminum plate.


Characteristics:

  • Manufacturer/Supplier: Tracon
  • Type of measurement: Alternating current voltage
  • Measuring range: 0-450 V
  • Type of connection: Direct
  • Class (accuracy): 1.5
  • Frame dimensions: 72 x 72mm
  • Cutting size: 66mm
  • Working temperature: -25ºC...+55ºC
  • Degree of protection (from the front side): IP52
  • Terminal protection degree: IP00
  • Degree of protection terminals (cover): IP20
  • Standards: EN60051, IEN 61010

Connection:



Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Clamp meter CT-195 PROMAX / ADAJUSA Clamp meter CT-195 PROMAX / ADAJUSA 2
Material available in 3-5 days
Measuring instruments

Multifunction AC/DC clamp meter CT-195 - PROMAX

PROMAX
CT-195
€273.31 (€222.20 tax excl.)
Clamp meter measuring AC/DC voltage (600 V), AC/DC current (700 A), resistance, frequency, continuity, diode test and temperature. It has a function of measurement retention (HOLD), retention of the peak value (PEAK), memorization of the measure with presentation of the maximum, minimum, medium or current value (MIN / MAX), relative measurement and manual...

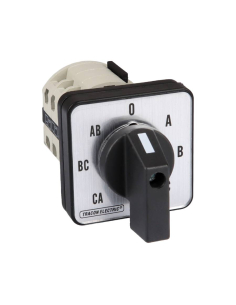

Cam voltmeter switch for phase-to-phase/phase-to-neutral measurement TKU-K | ADAJUSA | price
