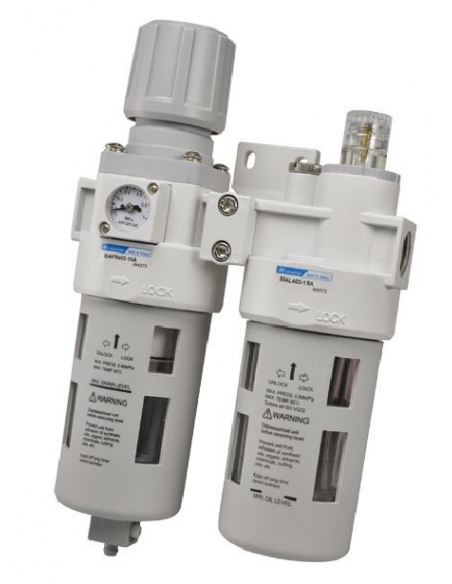

Filtration group of 1/2,pneumatic maintenance unit, filter-regulator + lubricator (FR +L) body made of metal and plastic cups. The pressure gauge is integrated into the regulator.
Among the main characteristics of this filter group has a large flow rate, high robutes and easy handling for regulation, emptying of the filter vessel and oil replacement in the lubrication element.
Characteristics of the filtering group:
- - Manufacturer: Mindman.
- - Manufacturer reference: MACP403-15A.
- - Number of elements: 2 (FR+L).
- - Thread size: G 1/2".
- - Regulation range: 0-8.5 Kgr/cm².
- - Maximum inlet pressure: 10 Kgr/cm².
- - Test pressure: 15 Kgr/cm².
- - Integrated pressure gauge on the pressure regulator.
- - Filtration grade: 40 μm. (Optional 5 μm)
- - Purge of manual-semi-automatic condensation.
- - Glasses with external viewfinder.
- - Capacity of the vessels: 140 c.c.
- - Type of flea: semi-automatic.
- - Type of lubrification: mist.
- - Minimum flow rate to ensure lubrication: 60 l/min.
- - Mounting form: Vertical.
- - Fixing support: Included.
For other sizes or references: see.
Material for professional use, install respecting the regulations in force at the place of installation.
For more information you can download the technical data sheet by clicking on the "Attachments" tab
Material for professional use, install respecting the regulations in force at the place of installation.
For more information you can download the technical data sheet by clicking on the "Attachments" tab
