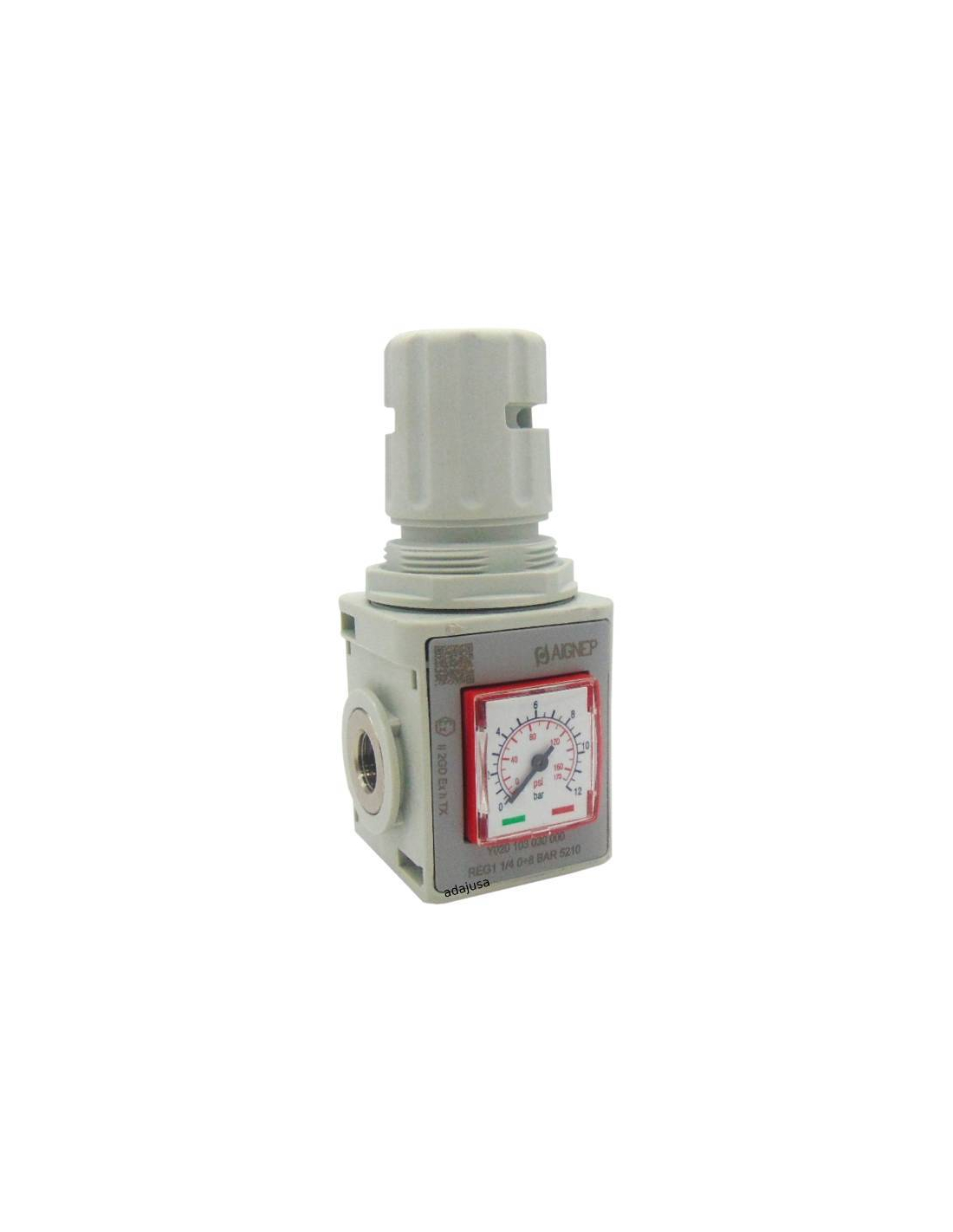

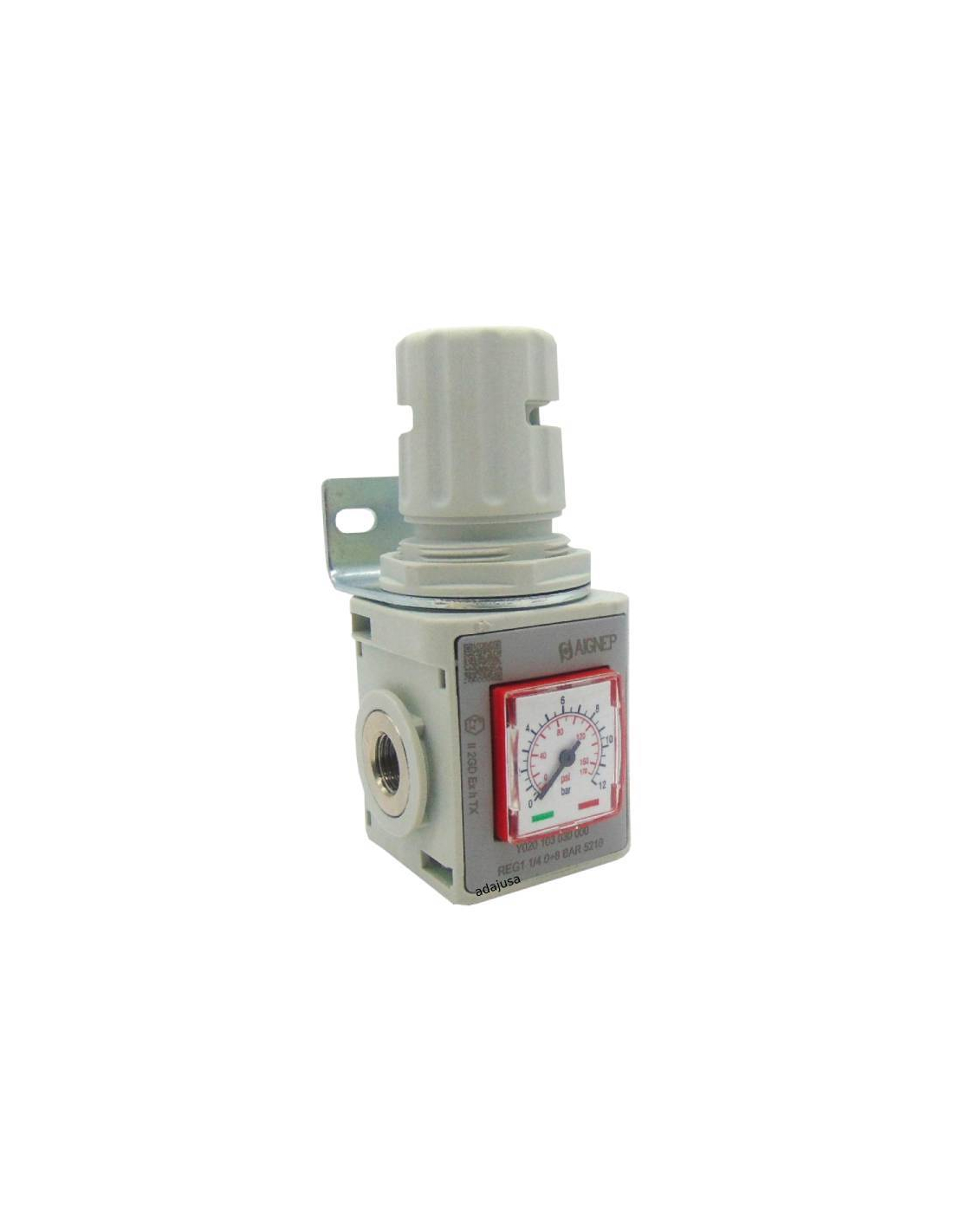

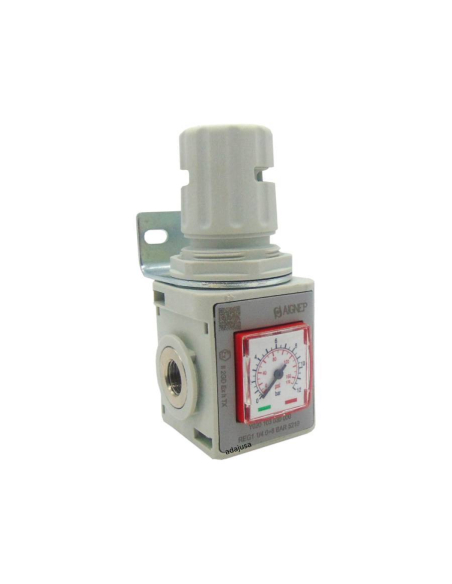

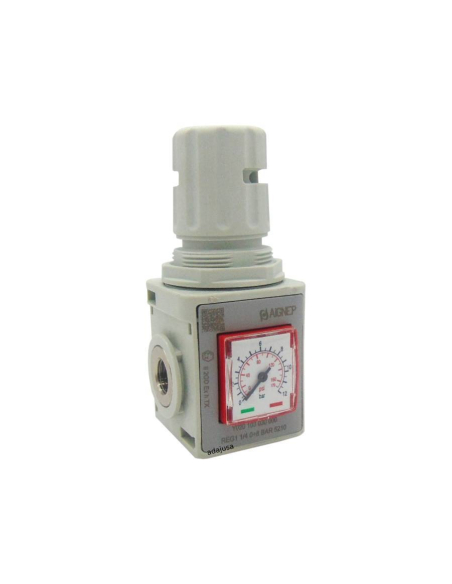

Regulator pressure with pressure gauge and lockable 1/2 0-8 bar complete size 2 FRL EVO - series Aignep

€48.29 Tax included

39.26 tax excl.

PK-Y020205030000

Regulator with integrated 1/2 fullpressure gauge , with regulation between 0-8 bar, size 2, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy.

Series: FRL Evo
Reference: PK-Y020205030000

Logotipo Aignep
normativa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Regulator pressure regulator with integrated 1/2 fullpressure gauge , regulation 0-8 bar, body made of high resistance technopolymer, and with metallic endings. Allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure. Compact size (T2). Fasteningby means of lateral holes. Knob with padlockable lock.

REGULAADOR BLOQUEO FRL EVO


Dimensiones escuadra grupo friltrante MINI FRL Aignep Adajusa

Delivery includes:

  • Regulator pressure regulator with integrated pressure gauge

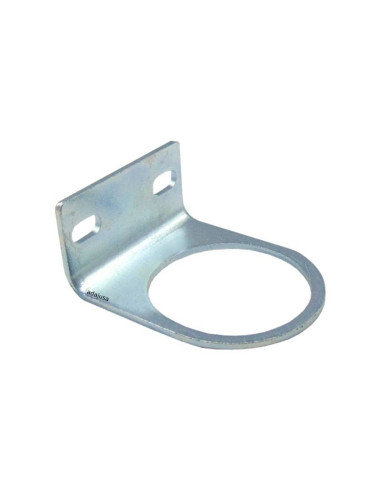

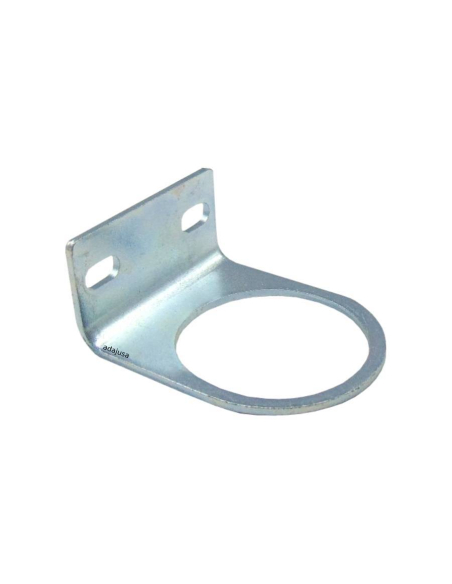

  • Squad size 2 mounting brackets

Technical characteristics of the regulator:

  • Manufacturer Aignep
  • Part number: Y020205030000
  • Regulator size: size 2.
  • Threaded connection size: 1/2".
  • Regulating range: 0-8 bar.
  • Maximum inlet pressure: 15 bar.
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 4000
  • Fluid: Compressed air or other inert gases
  • Wall mounting screws: M5x15
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.



Dimensiones regulador syntesi talla 1 Metal Work


CAUDAL REGULADOR T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
