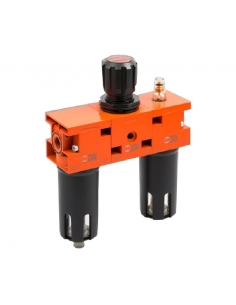

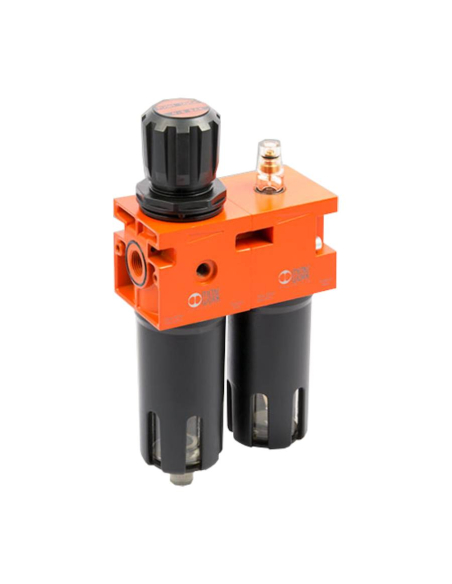

Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge New Deal series - Metal Work

€125.44 Tax included

101.98 tax excl.

1426054

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.

Series: New Deal
Reference: 1426054

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L).
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.
The type of purge is manual and automatic when the pressure is removed.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristic:

Manufacturer: Metal Work
Reference: 1426054
Number of elements: 2 (FR+L).
Thread size: 1/2"
Condensate drain type: RMSA
Metal glass with external viewer.
Built-in overpressure bleed valve.
Adjustment range ( bar ): 0 ÷ 12
Filtration degree ( μm) : 20
Maximum inlet pressure (MPa / bar / psi): 1.8 / 18 / 261
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1300
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) ( Nl/min): 2200
max temperature at 1MPa; bar ; 145psi ( °C): 50

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)

Questions

Question

Quiero montar la escuadra de fijación pero el pomo es mas grande que la tuerca y no veo como desmontar el pomo para sacar la tuerca y meter la escuadra de fijación, me podría dar una idea porque no quiero forzar nada

Answer

Estimado cliente,

Gracias por su mensaje.

En relación con el grupo de filtraje neumático de la serie New Deal de Metal Work, si desea instalar la escuadra de fijación y observa que el pomo de regulación impide acceder a la tuerca trasera, le indicamos lo siguiente:

El pomo de regulación no debe forzarse ni desmontarse directamente. Para montar la escuadra correctamente, debe extraerse el cuerpo del regulador del conjunto, aflojando con cuidado la parte posterior donde va fijado al soporte central. Esto le permitirá acceder a la tuerca desde el interior, colocar la escuadra y volver a montar el regulador.

Le recomendamos realizar esta operación con herramientas adecuadas y por personal cualificado para evitar dañar los componentes.

Todos nuestros productos están destinados a uso profesional y requieren instalación por personal cualificado. Verifique antes de realizar el pedido que se adapta a sus necesidades.

Atentamente,
Adajusa
www.adajusa.es

mario de almada on 07/30/2025 17:27:21
