Metallic filtration group 1/2 - Mindman

€82.30 Tax included

€66.91 tax excl.

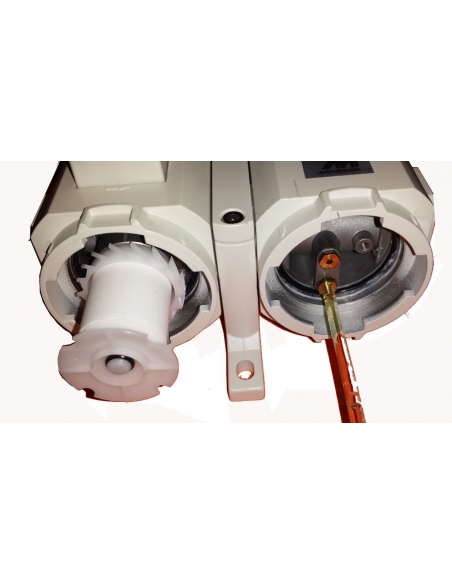

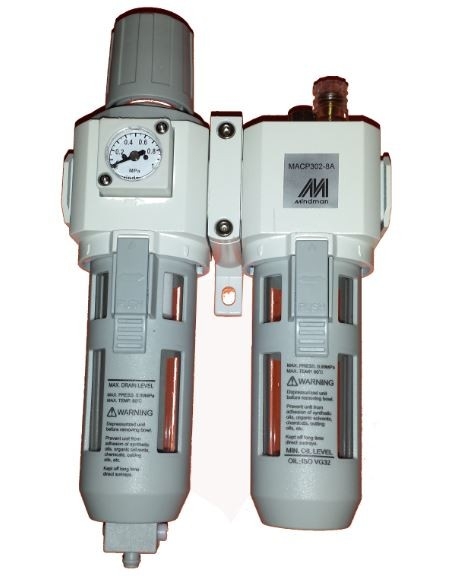

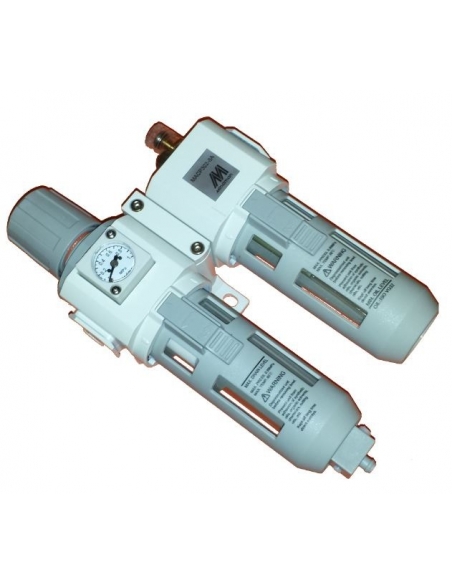

Group of filter of 1/2 (Filter-regulator + lubricator) metallic and plastic cups, with integrated pressure gauge on the head.
Capacity of the vessels: 65 c.c.
Reference: 281MACP30215A

simbolo grupo filtrante neumático


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

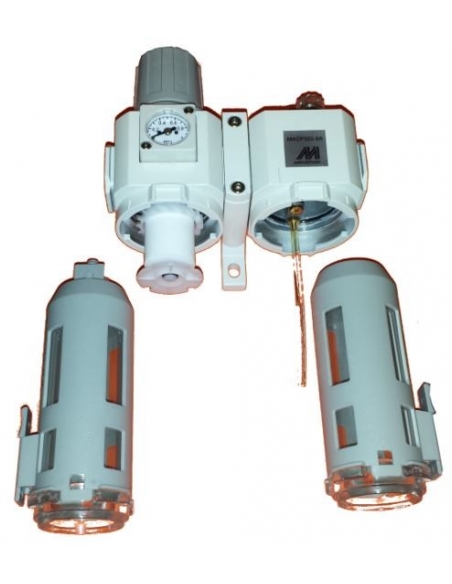

Filtration group of 1/2,pneumatic maintenance unit, filter-regulator + lubricator (FR +L) body made of metal and plastic cups. The pressure gauge is integrated into the regulator.

Among the main characteristics of this filter group has a large flow rate, high robutes and easy handling for regulation, emptying of the filter vessel and oil replacement in the lubrication element.

Characteristics of the filtering group:

  • - Manufacturer: Mindman.
  • - Manufacturer reference: MACP302-15A.
  • - Number of elements: 2 (FR+L).
  • - Thread size: G 1/2".
  • - Regulation range: 0-8.5 Kgr/cm².
  • - Maximum inlet pressure: 10 Kgr/cm².
  • - Test pressure: 15 Kgr/cm².

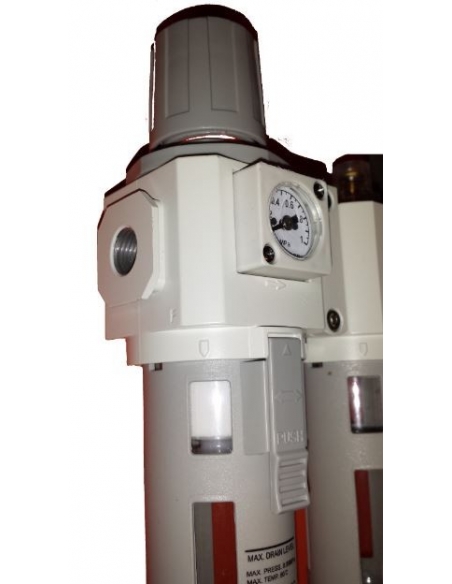

  • - Integrated pressure gauge on the pressure regulator.
  • - effective pitch diameter: 34 mm2.
  • - Filtration grade: 40 μm. (Optional 5 μm)
  • - Purge of manual-semi-automatic condensation.
  • - Glasses with external viewfinder.
  • - Vessel capacity: 65 c.c.
  • - Type of flea: semi-automatic.
  • - Type of lubrification: mist.
  • - Minimum flow rate to ensure lubrication: 60 l/min.
  • - Mounting form: Vertical.
  • - Fixing support: Included.

For other sizes or references: see.

Dimensiones grupo filtrante 1/4 MAR302 Mindman

Caudal grupo filtrante MACP302 Mindman

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

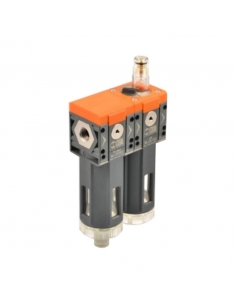

Filter + Lubricator Syntesi - Metal Work - ADAJUSA
FIL + LUB Syntesi

Pneumatic filtering and lubrication unit 1/2 filtering grade 20 semi-automatic purge...

Metal Work
5X24F20L104
€92.31 (€75.05 tax excl.)
Pneumatic filtration and greasing unit with 1/2 thread Syntesi series size SY2, with semi-automatic drain. Made of high-resistance technopolymer and threads on a metal support. Anti-corrosion system .Reference: 5X24F20L104 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

16 other products in the same category:

Filter 1/2 20 RMSA Size 2 Syntesi Metal Work - ADAJUSA
Filter groups of 1/2 FR-L

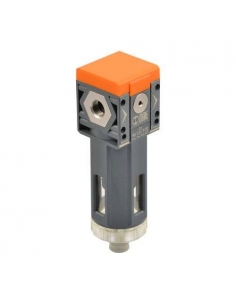

Filter 1/2 20 microns semi-automatic drain size 2 Syntesi series - Metal Work

Metal Work
5624F204
€39.34 (€31.98 tax excl.)
1/2 filter, with a filtration degree of 20μm and semi-automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5624F204Representative image for...
Pneumatic filter-regulator...
Filter groups of 1/2 FR-L

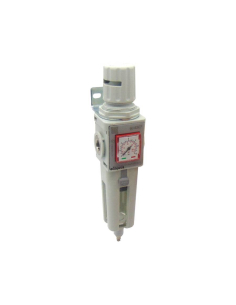

Pneumatic filter-regulator 1/2 0-8 bar semi-automatic purge size 2 FRL EVO series - Aignep
