Filter-regulator 1/2 metallic 0-8 bar semi-automatic purge New Deal - Metal Work

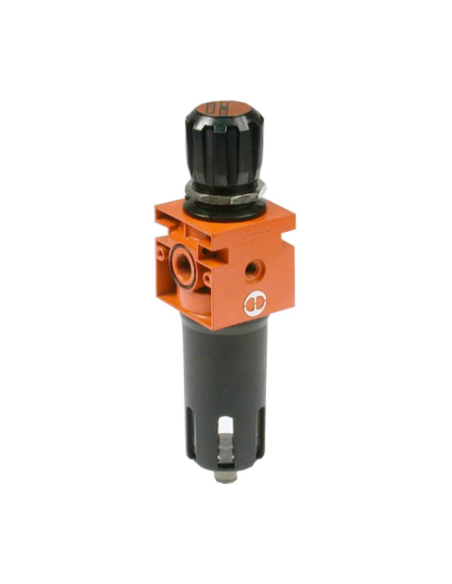

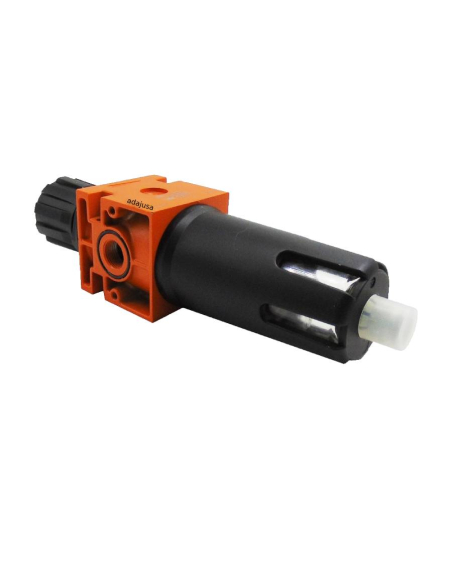

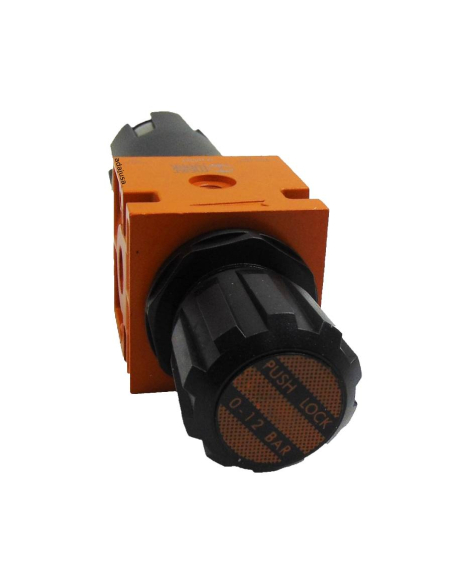

Filtering unit with 1/2" pneumatic pressure regulator, consisting of 1 element (Filter-regulator) with semi-automatic drain. This device combines in a simple unit the functions of filtration, condensate separation and pressure regulator. The pneumatic pressure regulation range is between 0 and 8 kg/cm2, the filtration degree is 20 μm.

Among the main features of this filtering group is a high flow performance compared to its size, metal construction, excellent resistance to corrosion.

The type of drain is semi-automatic, it works by depression.

Note: in the supply the pressure gauge is not included, this has to be ordered separately.

Characteristics:

• Manufacturer: Metal Work
• Manufacturer's part number: 1425029
• Thread size: 1/2"
• Maximum inlet pressure: 18 bar.
• Condesation discharge type: RMSA
• Metal cup with external sight glass.
• Built-in overpressure relief valve.
• Filtration degree: 20 μm.
• Vessel capacity: 45 ^cm3
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) (Nl/min): 1000
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 2500
• Pressure gauge coupling: 1/8"
• Wall fixing screws: M4x55.
• Mounting position: Vertical.

For other sizes and models, please consult us.

Material for professional use, install respecting the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
